PARTS REFERENCE

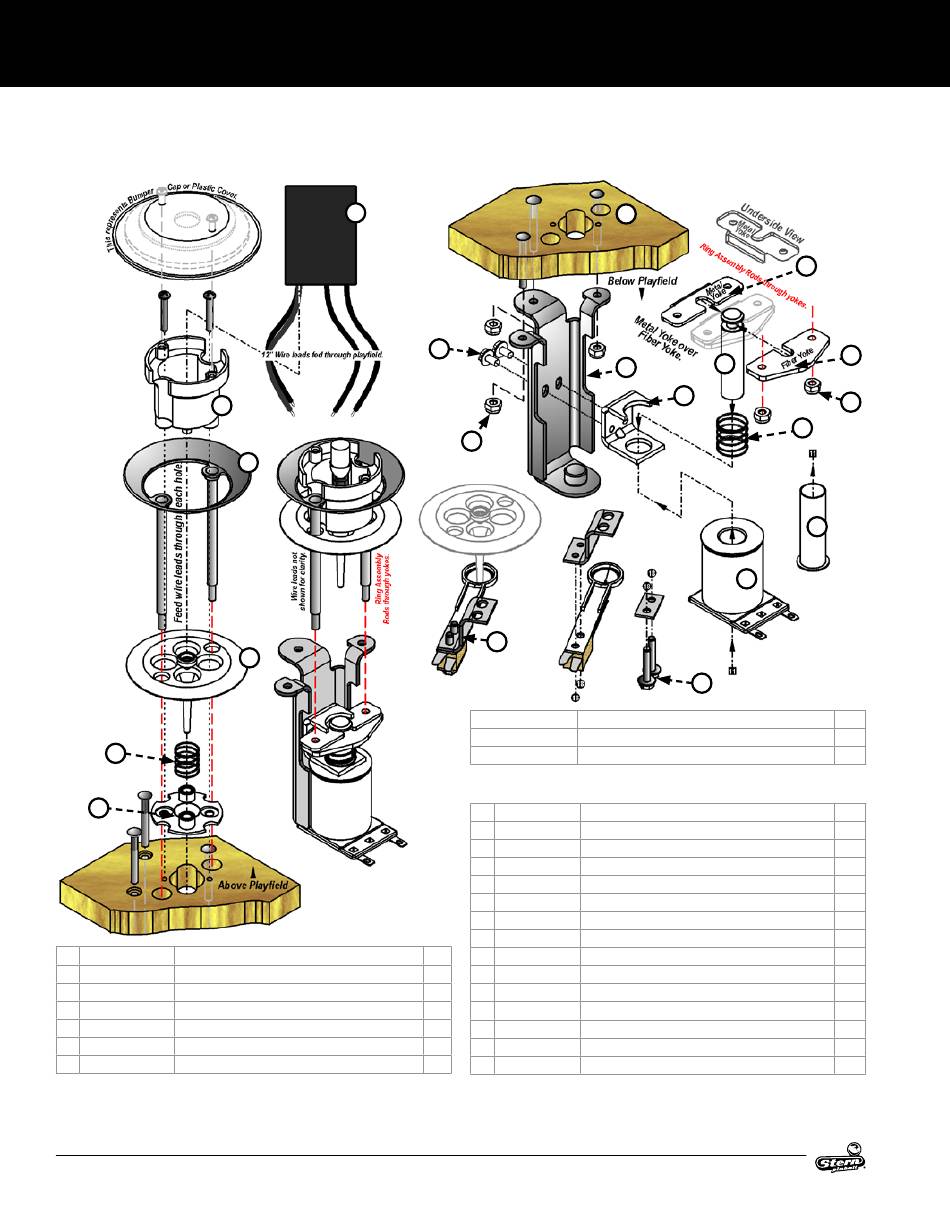

5.15 POP BUMPER ASSEMBLY

516-6784-XX
2
5
6
ID Part Number Description
1 520-5307-03 POP BUMPER LED MODULE
2 545-5197-00 BUMPER BODY
3 515-5085-00 RING AND ROD ASSY
4 545-5607-00 BUMPER SKIRT
5 266-5048-00 BUMPER SKIRT COMP SPRING
6 545-5195-00 BUMPER BASE
50
1
3
4
LED ZEPPELIN PRO MANUAL 500-55R5-01
10
8
7
Part Number Description
515-6459-01L BUMPER/RING TOP ASSY, W/ LED 1
515-6459-04-ND BUMPER BOTTOM ASSY, NO DIODE
ID Part Number Description
7 500-9934-01 POP BUMPER SWITCH ASSY-2 - LUG-LEFT
8 240-5005-00 6-32 NYLON STOP NUT
9 090-5044-ND COIL - 26-1200
10 237-5976-01 #6-32 X 1/4" SHWH SWAGE ZN
11 240-5005-00 #6-32 NYLON STOP NUT
12 535-7347-00 METAL YOKE STOP
13 234-5101-00 * 8 X 1/2 SLT
Qty
14 530-5348-00 PLUNGER, POP BUMPER
1
15 266-5047-00 COMPRESSION SPRING, POP BUMPER
1
16 545-5031-00 COIL SLEEVE
1
17 515-5939-00 COIL BRACKET POP BUMPER ASSY
1
18 545-5609-00 FIBER YOKE
1
19 535-7346-00 METAL YOKE
1
20 237-5957-00 #6-32 x 1-3/16" SPIRAL FIN SHANK SCREW
20
14
17
12
15
9
13
©2020 Mythgem, LTD.
19
18
11
16
Qty
1
1
Qty
1
3
1
2
2
1
6
1
1
1
1
1
1
3
