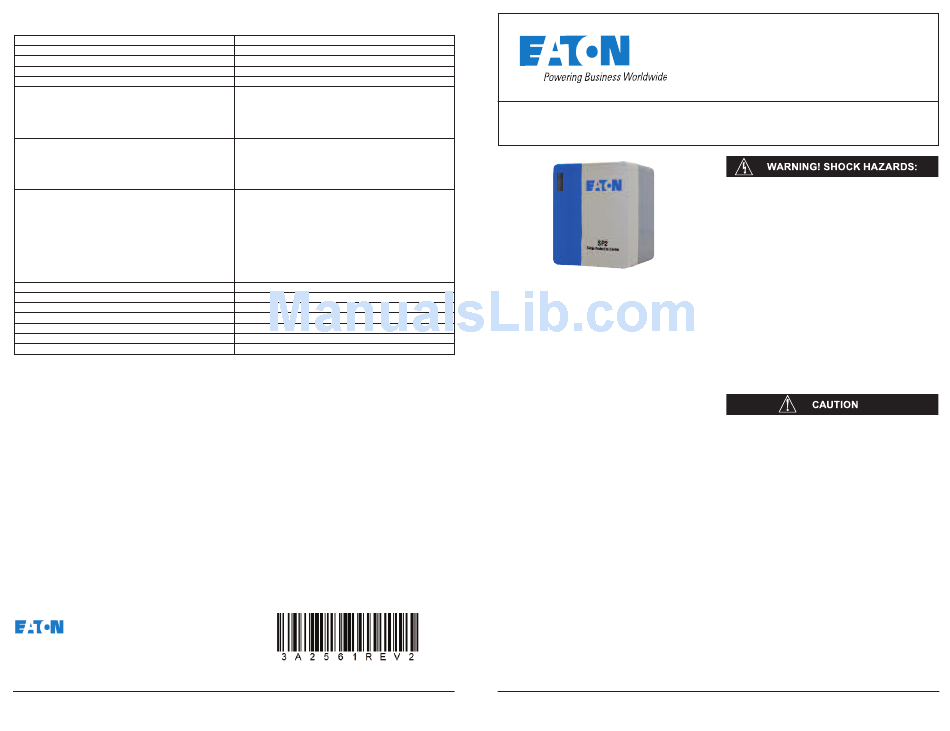

Eaton SP2 Installation & Operation

4.0 Specifications

Description
Surge current capacity per phase (I max )
Nominal Discharge Current (I n )
Short circuit current rating (SCCR)
SPD type
System voltages available (VAC)
Single-Phase
Split-phase
Three-phase wye
Three-phase delta
Protection modes
Single-phase
Split-phase
Three-phase wye
Three-phase delta
Maximum continuous operating voltage (MCOV)
SP2-120
SP2-240
SP2-240S
SP2-208Y
SP2-480Y
SP2-600Y
SP2-240D
SP2-480D
Input power frequency
Enclosure rating
Operating temperature
Operating humidity
Operating altitude
Agency certification and approvals
Warranty
5.0 Warranty
Eaton warrants these products for a period of 2
years from the date of delivery to the purchaser to
be free from defects in both workmanship and
materials. Eaton assumes no risk or liability for
results of the use of the products purchased from it,
including but without limiting the generality of the
foregoing: (1) The use in combination with any
electrical or electronic components, circuits,
systems, assemblies, or any other materials or
substances; (2) Unsuitability of any product for use
in any circuit or assembly. Purchaser's rights under
the warranty shall consist solely of requiring Eaton
to repair, or at Eaton's sole discretion, replace, free
of charge, F.O.B. factory, and defective items
received at said factory within said term determined
by Eaton to be defective. The giving of or failure to
give any advice or recommendations by Eaton shall
not constitute any warranty by or impose any
liability upon Eaton.
Eaton
1000 Cherrington Parkway
Moon Township, PA 15108-44312, USA
www.eaton.com/spd
For Technical Support, please call 1-800-809-2772
For more information visit: www.Eaton.com
Ratings
45kA
10kA
200kA
Type 1 (can also be used in Type 2 applications)
120/240
240
208, 480, 600
240, 480
L-N
L-N
L-G, L-L
L-G, L-L
150V
320V
150V
150V
320V
420V
320V
550V
50/60Hz
NEMA 4X
-40°C through 65°C (-40°F through 149°F)
5% through 95%, noncondensing
Up to 12,000 ft (3658m)
UL1449 3 rd Edition Type 1 Listed device
2 years
The foregoing constitutes the sole and exclusive
liability of Eaton AND IS IN LIEU OF ANY AND ALL
OTHER WARRANTIES EXPRESSED, IMPLIED OR
STATUTORY AS TO THE MERCHANTABILITY,
FITNESS FOR PURPOSE SOLD, DESCRIPTION,
QUALITY, PRODUCTIVENESS OR ANY OTHER
MATTER. In no event shall Eaton be liable for
special or consequential damages or for delay in
performance of the warranty. This warranty does
not apply if the product has been misused, abused,
altered, tampered with, or used in applications other
than specified on the nameplate. At the end of the
warranty period, Eaton shall be under no further
warranty obligation expressed or implied. The
product covered by this warranty certificate can
only be repaired or replaced by the factory. For help
on troubleshooting the SPD, or for warranty
information, call 1-800- 809-2772, Option 4,
sub-option 2. Repair or replacement units will be
returned collect. If Eaton finds the return to be a
manufacturer's defect, the product will be returned
prepaid.
© Eaton Corporation
All Right Reserved

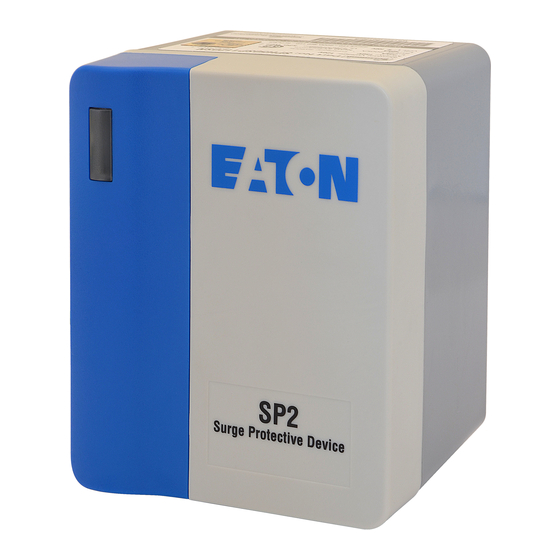

SP2 Surge Protective Device
Installation & Operation
1.0 Introduction
This manual describes how to install a Surge
Protective Device (SPD) in parallel (shunt) across the
AC supply of the following types of electrical
systems:
• Single-Phase
• Split Phase
• Three-Phase Wye
• Three-Phase Delta
The SPD is designed to be installed on service
entrance, branch panels, and/or individual
equipment disconnects, and functions to protect
sensitive electronic equipment from damaging
voltage transients. The connecting wires do not
carry supply current. Instead, they carry only
short-duration currents that are associated with a
transient event.
These instructions do not cover all details,
variations, or combinations of the equipment, its
storage, delivery, installation, checkout, safe
operation, or maintenance. If you require further
information regarding a particular application or
installation that is not covered in this manual,
please contact Eaton's Power Quality Technical Sup-
port at 1-800-809-2772, option 4, option 2.

1.1 Safety Precautions

A licensed/qualified electrician must complete all
instructions described in this manual in accordance
with the U.S. National Electrical Code, state and
local codes, or other applicable country codes. All
electrical codes supersede these instructions.
Page 4 Page 1
Instruction Manual
IB158003EN
Rev. 2
Improper installation can cause death, injury
and/or equipment damage. Follow all warnings
and cautions. Completely read and understand the
information in this instruction manual before
attempting to install or operate this equipment.
Improper wiring could cause death, injury, and/or
equipment damage. Only licensed/qualified
electricians who are trained in the installation and
service of electrical devices are to install and service
this equipment.
Use appropriate safety precautions and
equipment for arc flash protection.
During normal operation, hazardous voltages are
present inside the SPD.
When servicing the SPD, follow all safe work
practices to avoid electrical shock.
Do not perform a high-pot test with the SPD
connected to the electrical system. Failure to
disconnect the SPD during a high-pot test will result
in damage to the SPD.
Do not install with lead length less than six (6)
inches.
1.2 Catalog Numbering System
Series Voltage Code
SP2- 120 = 120V single-phase
240 = 240V single-phase
240S = 240V split-phase
240D = 240 delta
480D = 480 delta
208Y = 120/208 wye
480Y = 277/480 wye
600Y = 347/600 wye
