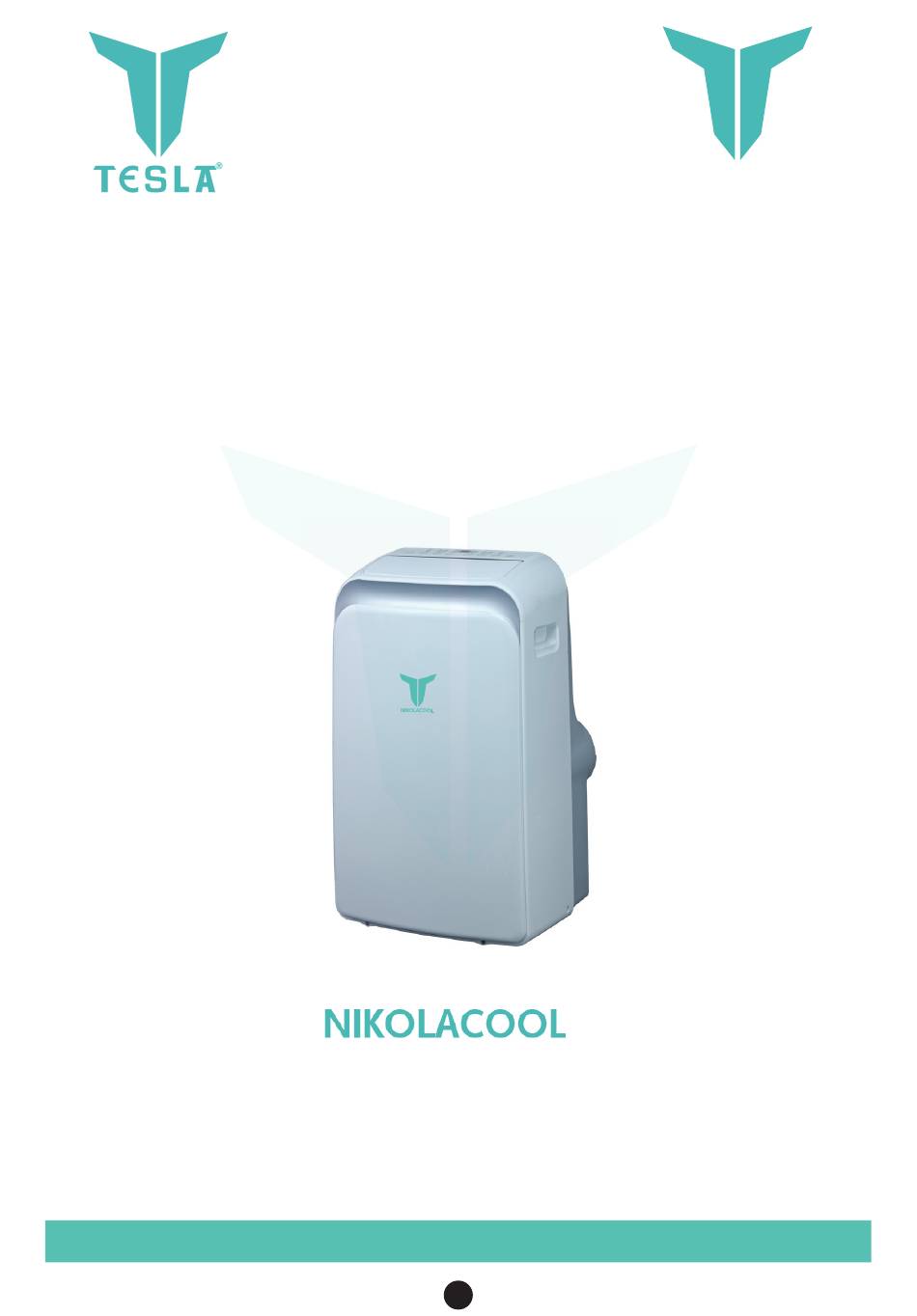

- Page 1 NIKOLACOOL INSTRUCTIONS FOR USER TESLA AIR CONDITIONER (PORTABLE / MOBILE TYPE) TE-PT-12KHC-BLG w w w . t e s l a .c o m.n p...
-
Page 2: Table Of Contents
CONTENTS GENERAL DESCRIPTION AND SAFETY PRECAUTIONARY MEASURES AIR CONDITIONER REVIEW CONTROL PANEL AIR CONDITIONER OPERATIONS 9-10 MOUNTING & INSTALLATION 11-14 CARE & MAINTAINANCE 15-16 TIPS FOR TROUBLESHOOTING SPECIFICATIONS... - Page 3 w w w . t e s l a .c o m.n p...
-
Page 4: Precautionary Measures
PRECAUTIONARY MEASURES Before operating this product, please read the instructions carefully and save this manual for future reference. Incorrect operation of the air conditioner due to ignoring the instructions may result in personal injury or property damage. ATTENTION! • Use the air conditioner in such a way that it is always protected from moisture (condensation, splashing water, etc.). - Page 5 PRECAUTIONARY MEASURES WARNING! • Do not store or use gasoline or other flammable, volatile substances or liquids near the air conditioner. • Do not use an extension cord or adapter to connect the air conditioner to the mains. Do not separate the power plug from the power cord.
-
Page 6: Air Conditioner Review

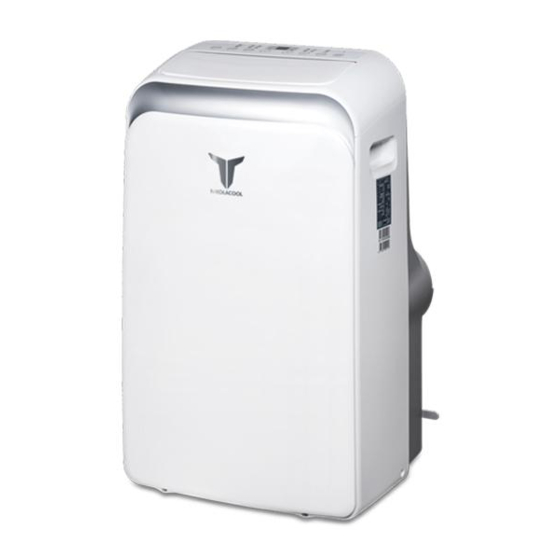

AIR CONDITIONER REVIEW APPEARANCE Control Panel Horizontal blinds (swing automatically) Wheels Carrying handles (on both sides) Upper air filter (behind the upper grille) Upper air intake Air outlet Drain hole (only for models with heating type of heat pump) Output for power cord Staples for the power cord (used only when storing the device) Lower drainage Electrical outlet (used when storing the device) - Page 7 AIR CONDITIONER REVIEW ACCESSORIES Accessories Name Quantity(pcs) Set: Exhaust pipe adapter (With a flat or round hole, span from the model) Wall-mounted exhaust adapter A (*) Adapter B (round) (*) Set: screws and dowels for them (*) Sealant Set: remote control and 2 batteries (only for remote-controlled models) Set: drain hose for it (*) (*) - optional components, some models are supplied without them.
-
Page 8: Control Panel
CONTROL PANEL Before the first start, carefully familiarize yourself with all the functional settings and features of the control panel of the air conditioner and its remote control. The air conditioner can be controlled separately both from the control panel and from the remote control (only for remotely controlled models). - Page 9 CONTROL PANEL TIMER Button Used to automatically start (AUTO ON) or automatically turn off (AUTO OFF) the air conditioner for a given time in combination with the “INCREASE” (+) and “REDUCE” (-) buttons. The running on / off timer is indicated by the backlight of the corresponding indicators on the control panel.
-
Page 10: Air Conditioner Operations
AIR CONDITIONER OPERATIONS WORK IN THE COOLING MODE • Press the MODE button until the COOL indicator lights up. • Use the INCREASE (+) and REDUCE (-) buttons to set the desired room temperature. The temperature can be set between 17-30 ° C (62-88 ° F). •... - Page 11 AIR CONDITIONER OPERATIONS • The air conditioner will automatically return to the previous settings, in which the control panel displays the previous temperature settings if no changes are made to its operation within 5 seconds. • Turning the air conditioner on or off at any time, or setting the time to 00:00, cancel the program settings for the automatic start / stop timer.
-
Page 12: Mounting & Installation
MOUNTING & INSTALLATION Choosing a place for air conditioning The air conditioner must be placed on a solid base to minimize noise and vibration during operation. For safe and reliable operation of the air conditioner, install it on a smooth, level and sufficiently strong floor, which can ensure good stability of the device. - Page 13 MOUNTING & INSTALLATION Duct installation Connect to or disconnect from the air conditioner duct with an adapter in accordance with the operating mode of the device. MODE ACTION COOLING (COOL) HEATING (via heat pump, HEAT) AUTO MANDATORY CONNECT FAN (FAN) DRYING (DRY) CAN DISCONNECT HEATING (electric heating by TEN, HEAT)
- Page 14 MOUNTING & INSTALLATION ATTENTION! • Never bend the duct pipe! ATTENTION! • For proper and efficient operation of the air exhaust system, make sure that there are no objects obstructing the flow of air on the outside of the wall, or that they are no closer than 50 cm from the hole in the wall.
- Page 15 MOUNTING & INSTALLATION Remove the top Remove the bottom Drain plug Drain plug After After Адаптер Адаптер Drain Drain Hose Hose Drain hose Drain hose • When the water in the lower tray reaches a certain level, the air conditioner will inform you by 8 sound signals, and “P1”...
- Page 16 CARE AND MAINTENANCE IMPORTANT! • Be sure to unplug the air conditioner before cleaning or servicing. • Do not use gasoline, thinners, or other chemicals to clean the air conditioner. • Do not wash the unit directly under the tap or with a hose. This may damage the air conditioner or result in a fire hazard and electric shock.
- Page 17 CARE AND MAINTENANCE Cleaning the air conditioner housing • To clean the air conditioner case, use a lint-free cloth dampened with a neutral detergent. After that, wipe the air conditioner dry with a clean cloth. Preparing the air conditioner for long-term storage •...
-
Page 18: Tips For Troubleshooting
5. Power off in HEAT mode temperature exceeds 70 ºC, the air conditioner turns off Tesla Air Conditioner ensures the accuracy of the information in this manual at the time of publication, however, some features, parameters and accessories are subject to change without notice.
