Evaporator And Temperature Sensing System - Midea SO-BCD595WM-UT Service Manual

Damper assembly
8.5

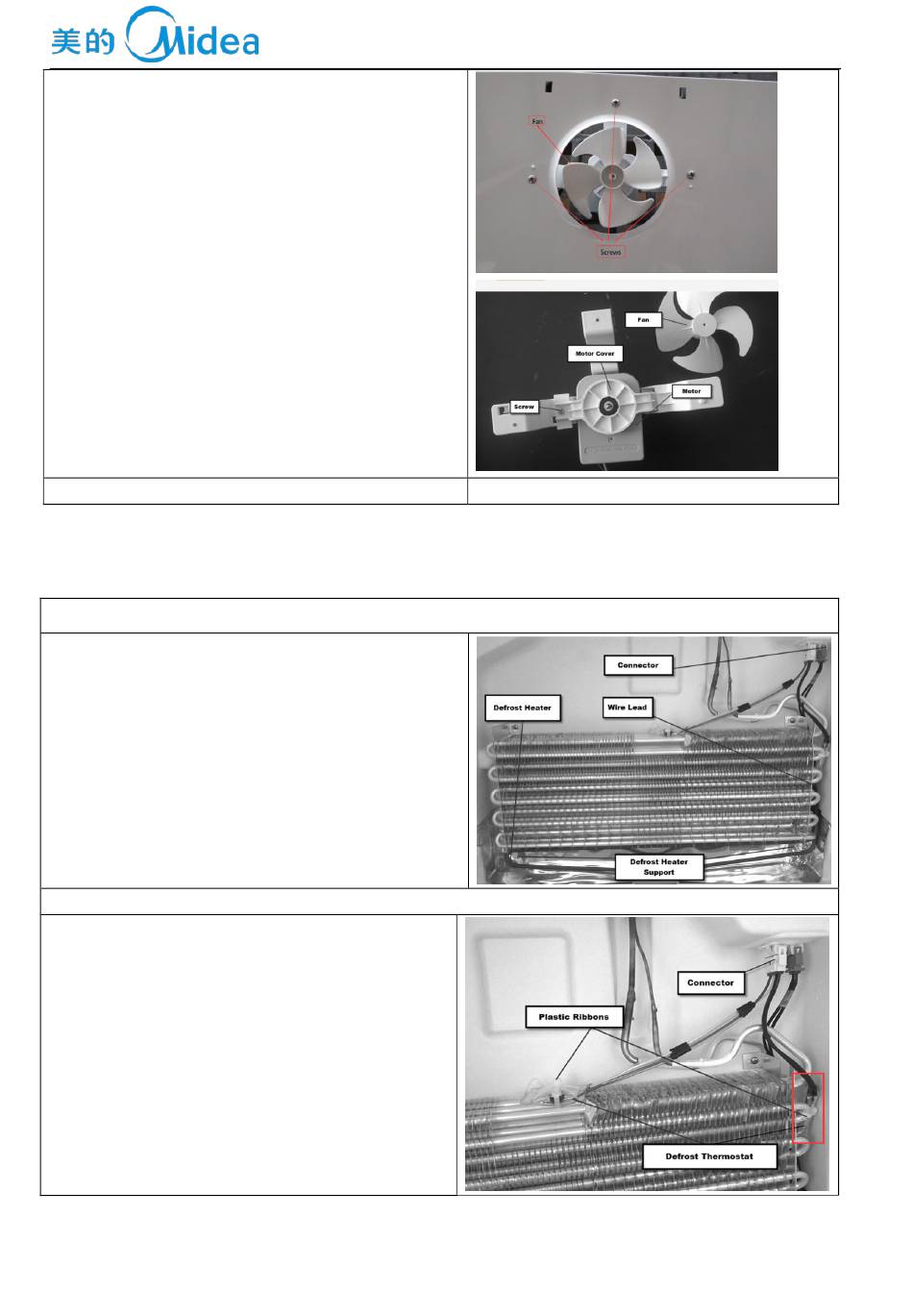

Evaporator and temperature sensing system

Evaporator in freezing chamber
1） Remove the air duct components in freezing chamber.
2） Disconnect all connectors.
3） Remove the welding on inlet and outlet tubes.
4） Remove two screws which are used to fix the
evaporator and remove the evaporator.
Components on the evaporator
Fuse
The fuse is located on top of the evaporator
1） connect the fuse connector.
2） Cut off the band which fixes the fuse.
3） Separate the fuse and the evaporator.
*,Don't break the welding of the evaporator in case that
only the fuse needs to be replaced.
