Service Manual_2023-V2.0
Service Manual

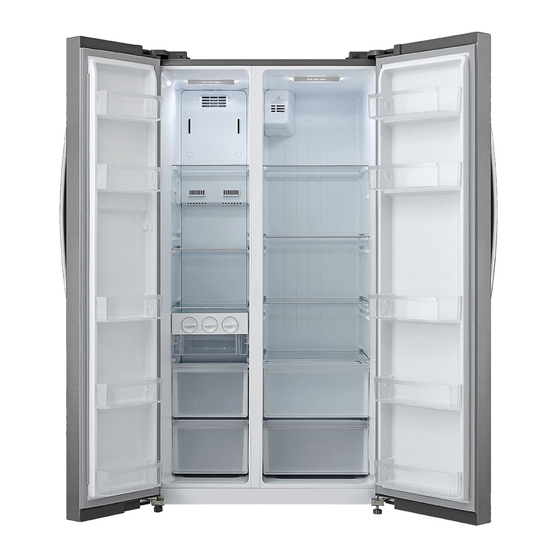

SBS Series
Applicable Models
Model Code
Applicable Models
HC-957WEN
UR-BCD746WE-DT
22031050000741
The picture in this service manual is only for reference, and specific
appearance and configuration are subject to the real product.
This manual mainly teaches the method, the specific work skill needs
engineer to accumulate through the daily work.
1
