Service Manual
Applicable models
CE-BCD87CM-SQ
SR-BCD87CM-OR
AR-BCD87CM-FR

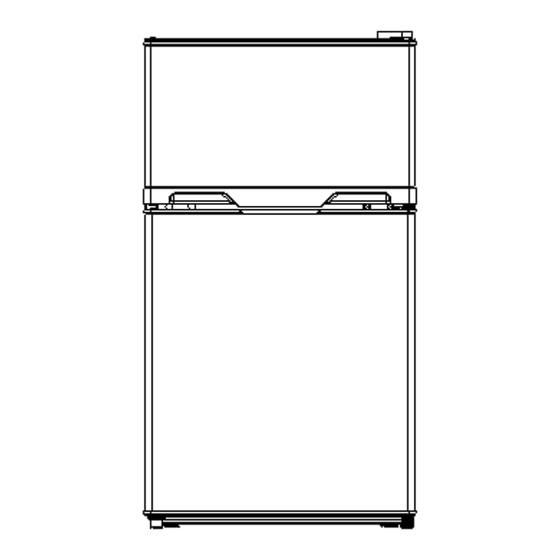

(The picture is only for reference, and specific appearance and configuration are subject to the real
product)
Prepared by
Reviewed by
Approved by
Service Manual, 2017-02
Model Code
22031020000524
22031020000352
22031020000085
R&D:Luo Xinjun
QA:WangTao
SVC:ChenLei
R&D:Tang Tao
SVC:GuangTaoshuai
1 / 31
