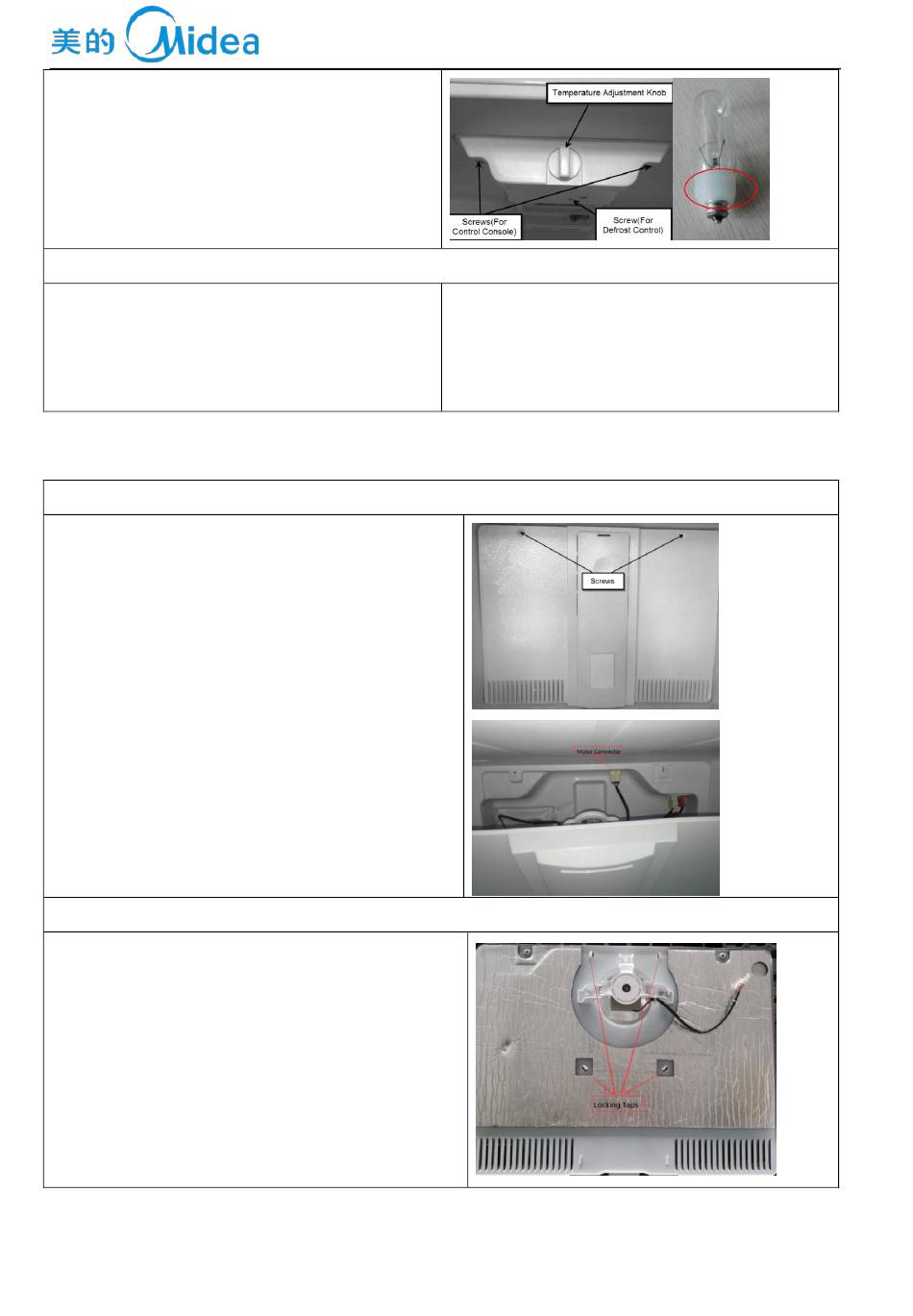

1） Light of the refrigerating chamber is located upper
chamberRemove the screw.
2） Loosen the hook and remove the light.
Light switch
There is a light switch on the side wall of the
refrigerating chamber.
1） Loosen the hook with small normal screwdriver
and pull out the switch until the wire connector
reveals.

8.4Air duct and fan motor

Air duct components in freezing chamber
All accessories in the freezing chamber should be
dismantled before removing the air duct components.
1） Remove 2 screws on the cover plate of the freezing
air duct using a cross screwdriver;
2） Pull out the connector terminal of the fan motor;
Fan motor
1） Disassemble buckles at the back of the freezing air
duct and remove 4 front cover plates;
2） Remove 3 screws using a cross screwdriver to get
the fan and components of fan brackets;
3） Remove 1 screws using a cross screwdriver to
separate fan brackets and the fan;
4） Separate the fan and fan blade (pull it out using
great force);
5） Replace the fan in reverse steps;
