Features

FM Approved as a quick-response storage sprinkler
Fusible link operating element

Product Description

The Reliable Model N25 Early Suppression Fast Response
(ESFR) Sprinkler is intended for use against severe fire
challenges. The sprinkler is designed to respond quickly
to a growing fire and deliver a heavy discharge of water to
suppress the fire. The Model N25 is FM Approved as a quick
response storage sprinkler.
The Model N25 ESFR Sprinkler utilizes a levered fusible
alloy solder link in either a 165°F (74°C) or 212°F (100°C)
temperature rating. The sprinkler has a nominal K Factor of
25.2 (metric 360), and is available with 1" NPT or ISO 7-1R1
threads, or with the Victaulic® IGS™ Style V9 Sprinkler
Coupling*.
The small deflector and frame provide a broad, symmetrical,
hemispherical pattern capable of suppressing fires between
sprinklers in high-piled storage areas. At the same time, a high
momentum central core discharge penetrates and suppresses
fires occurring directly beneath the sprinkler in lower height
storage areas.
The N25 ESFR sprinkler is less susceptible to damage due to
the smaller deflector and frame design, and has passed rough
use and abuse testing required for approval without the need
for plastic protectors.
*Note: Victaulic® and IGS™ are trademarks of Victaulic
Company.

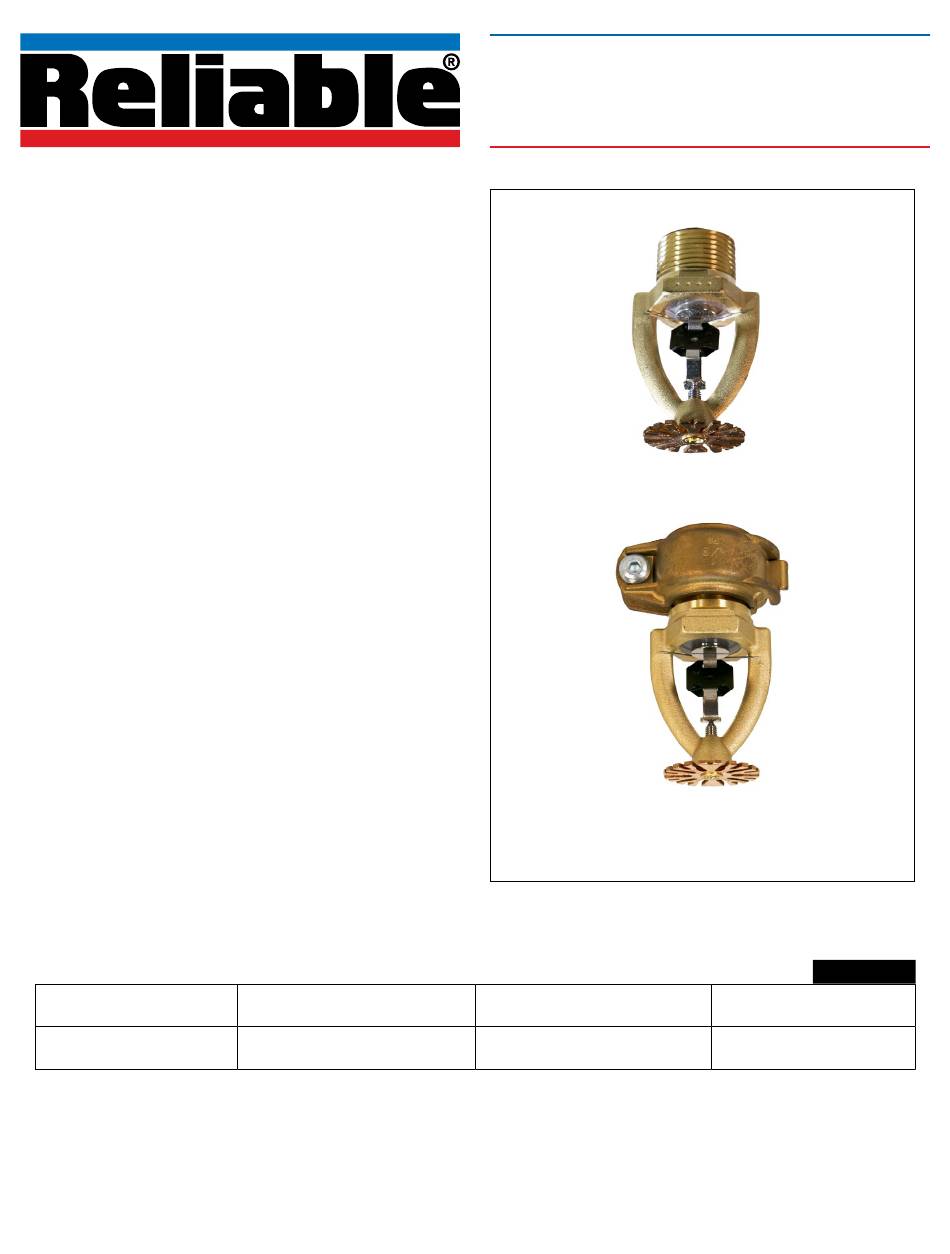

Model N25 ESFR Pendent Sprinkler
Model
N25
Nominal K-factor
gpm/psi
(L/min/bar
)
1/2
1/2
25.2 (360)
www.reliablesprinkler.com
Model N25 ESFR Sprinkler

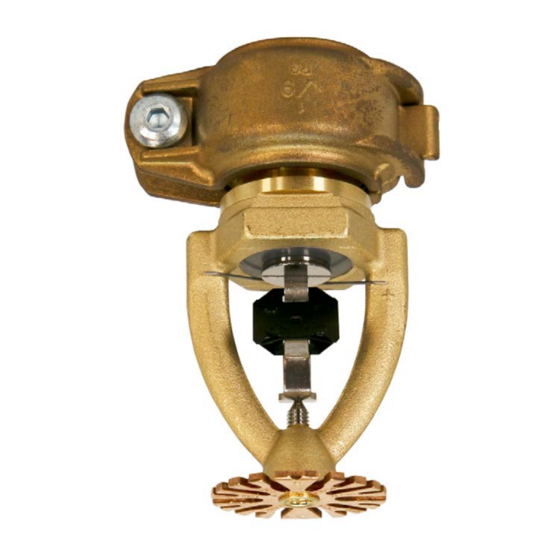

Model N25 Sprinkler w/
Victaulic® IGS™ Style V9
Sprinkler Coupling
Approvals
FM, CNBOP-PIB
Bulletin 909 August 2020
Model N25 ESFR
Pendent Sprinkler
175 psi (12 bar) rated
Table A
Sprinkler Identificaiton
Number (SIN)
RA0912
