Reliable HL22 Manual

Product Description

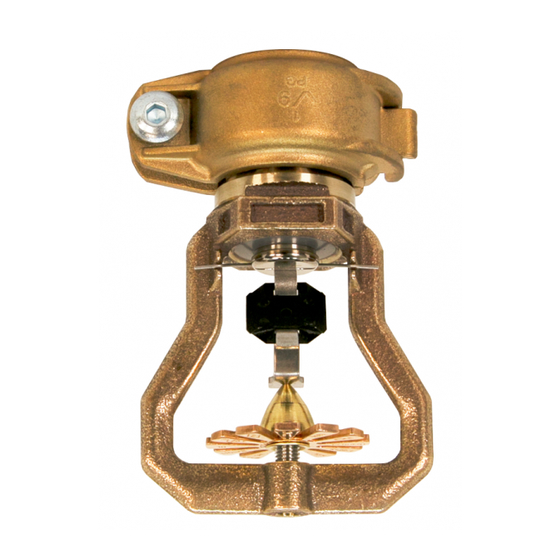

The Reliable Model HL22 is an Early Suppression Fast
Response (ESFR) Sprinkler with a nominal k-factor of
22.4 (320 metric). This sprinkler is designed to respond
quickly to growing fires with a high volume of water
discharge to "suppress" rather than "control" fires.
FM Global classifies the Model HL22 as a quick-
response sprinkler, storage and non-storage, when the
sprinkler is used in accordance with FM Global Property
Loss Prevention Data Sheets.
The Model HL22 sprinkler utilizes a levered fusible
alloy solder link in either 165°F (74°C) or 212°F (100°C)
temperature rating. The sprinkler has a nominal K Factor
of 22.4 (metric 320), and is available with 1" NPT or
ISO 7-R1 threads, or with the Victaulic® IGS™ Style V9
Sprinkler Coupling*.

Application and Installation

The HL22 ESFR sprinkler is intended for installation
in accordance with NFPA 13 and Factory Mutual (FM)
Loss Prevention Data Sheets 2-0 and 8-9, as well as
the requirements of any Authorities Having Jurisdiction.
See Table 1 for information on NFPA and FM Global
design criteria for the Model HL22 sprinkler.
In addition to design criteria permitted by NFPA
13, the Model HL22 also has the following Specific
Application Listing from UL, as documented in Table C:
• Sprinkler: Model HL22 in 212°F (100°C) only
• Maximum Ceiling Height: 48 ft. (14.6 m)
• Maximum Storage Height: 43 ft. (13.1 m)
• Minimum Aisle Width: 8 ft. (2.44 m)
• Permitted Commodities: Class I - IV commodities,
encapsulated or nonencapsulated, and Cartoned
Group A Unexpanded plastics. Permitted
Storage Arrangements: Single- and double-row
rack storage (no open top containers or solid
shelves) and palletized and solid pile storage
(no open top containers or solid shelves).
• Minimum System Operating
Pressure: 55 psi (3.79 bar).
• Installation and Obstruction Criteria: Same as
for K25.2 ESFR sprinklers, but with a maximum
deflector to ceiling distance of 14 in. (356 mm)
Follow installation criteria in NFPA 13 or FM Global
Property Loss Prevention Data Sheets. For installations
using the UL Listed Specific Application Criteria for
ceiling heights up to 48 ft. (14.6 m), also follow the
additional installation criteria contained in this bulletin.
*Note: Victaulic® and IGS™ are trademarks of Victaulic Company.
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model HL22 (SIN RA1011)
K22.4 (320 metric)
Early Suppression
Fast Response (ESFR) Sprinkler

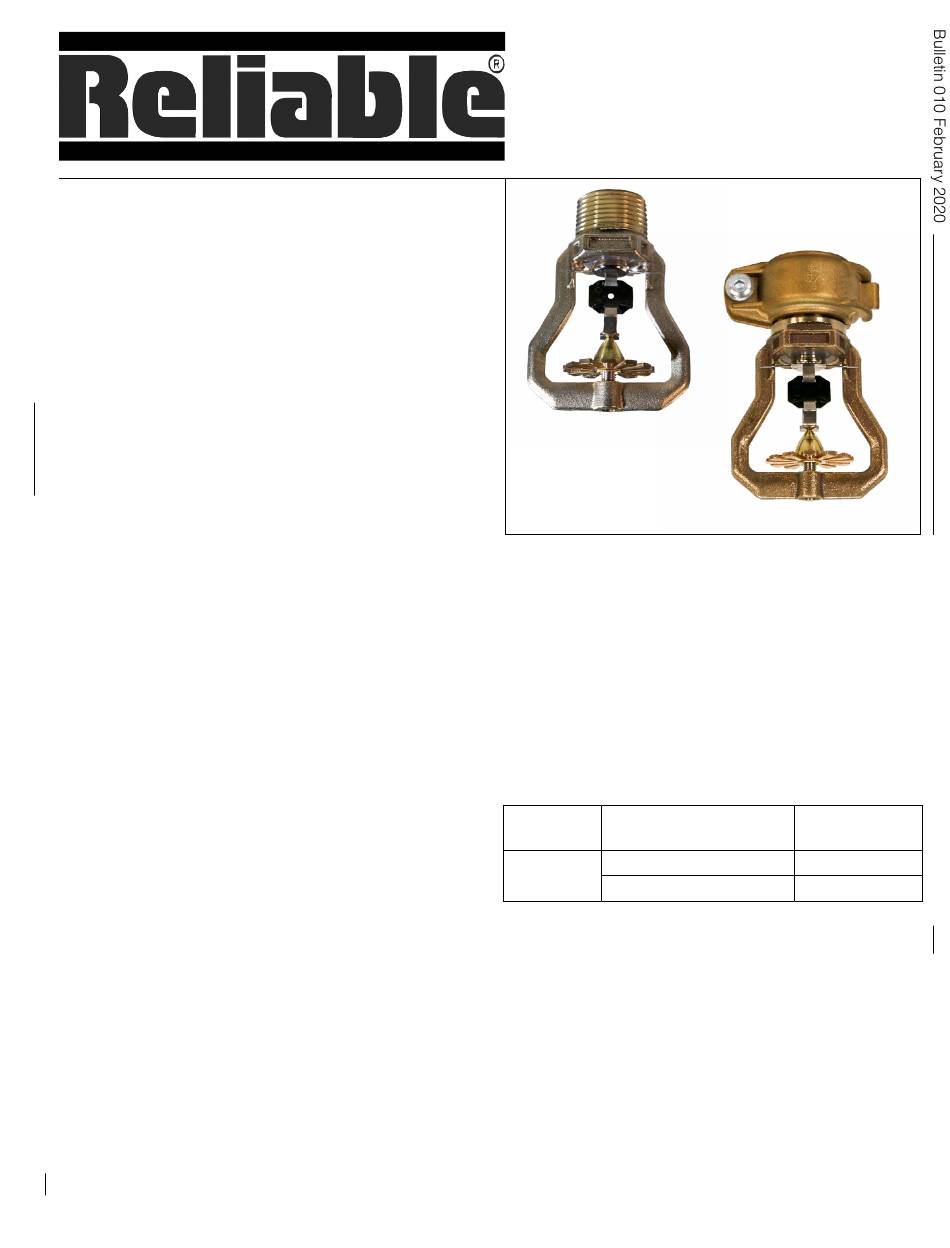

Model HL22 Sprinkler

Listings and Approvals

1. Listed by Underwriters Laboratories, Inc.
and UL certified for Canada (cULus).
2. FM Approved as a quick-response, storage
and non-storage, sprinkler (FM).
3. VdS Schadenverhütung (VdS).
4. Loss Prevention Certification Board (LPCB).
5. CNBOP Technical Approval.

Optional Guards and Water Shields

Sprinkler Guard or Water Shield
Model S-5 Water Shield
HL22 ESFR
Pendent
Model 22 Guard
Notes:
1. Guards and shields are approved for threaded sprinklers
only.
2. Water shield is listed for use only when the sprinkler is
installed within racks (IRAS) or under open grating (or similar)
areas as required by NFPA or FM standards.
3. Guard is listed for use only when the sprinkler is installed
within racks (IRAS).
