cULus Listed and FM Approved
for Storage and Non-storage
applications
Features
1. Provides maximum coverage areas up
to 196 ft
(18.21 m
2
ft. (4.27 m) by 14 ft. (4.27 m) spacing.
2. cULus Listed for recessed
installation in finished ceilings
with
/
" (13 mm) adjustment.
1
2
3. Available in brass, white polyester,
black polyester, and custom
color polyester finishes.
4. Ordinary, 165 °F (74 °C), and Intermediate,
212 °F (100 °C) temperature ratings.
5. cULus Listed for unobstructed or
noncombustible obstructed construction.
Listings and Approvals
1. Listed by Underwriters' Laboratories Inc.
and UL certified for Canada (cULus).
2. FM Approved (Pendent only) as a K25.2
Extended Coverage Quick-Response Pendent
Storage and Non-storage sprinkler.
3. Approved for use in New York City based on UL
Listing per Local Law 33/2007 and MEA 258-93-E
UL Listing Categories
Sprinklers, Automatic & Open
Sprinklers for Storage Protection
(Standard Response Area/Density)
UL Guide Number
VNIV
US Pat. No. 7,624,812
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
) per sprinkler at 14
2
Model N252 EC (SIN RA0842)
K25.2 (360 metric) Pendent
and Recessed Pendent
Extended Coverage Density
Area Sprinkler

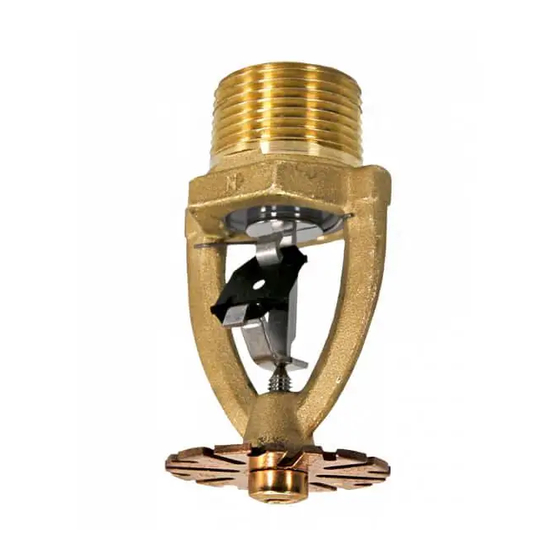

N252 EC Pendent
(cULus Listed and FM Approved)
N252 EC Recessed Pendent
(cULus Listed)
Product Description
The Models N252 EC Pendent and Recessed Pendent
Sprinklers are control mode, extended coverage
sprinklers for storage and non-storage density/area
applications. This includes protection of the storage
and display of Class I through Class IV commodities,
non-expanded Group A Plastics, and non-expanded,
exposed Group A Plastics in retail stores. The Model
N252 EC sprinklers offer maximum coverage areas up
to 14 ft by 14 ft (196 ft
), which is almost twice of that
2
provided by standard coverage sprinklers. This offers
the advantage of decreasing the number of required
sprinklers, reducing labor and material costs.
Operation
The Reliable Model N252 Extended Coverage Pendent
and Recessed Pendent Sprinklers utilize a levered
fusible alloy solder link. When the link reaches the rated
temperature, the solder melts and the two link halves
separate allowing sprinkler to operate and water to flow.
Bulletin 008
February 2019
