Model G5 Series Sprinklers
Available with Solid, Perforated, or Gasket Cover Plate
Product Features
•
Flat concealed cover plate available solid or perforat-
ed in a variety of finishes.
•
NEW: Stainless Steel Clad cover plate (see Table H).
•
3/4-inch (19 mm) cover plate adjustment.
•
Cover plate available with optional gasket.
Product Description

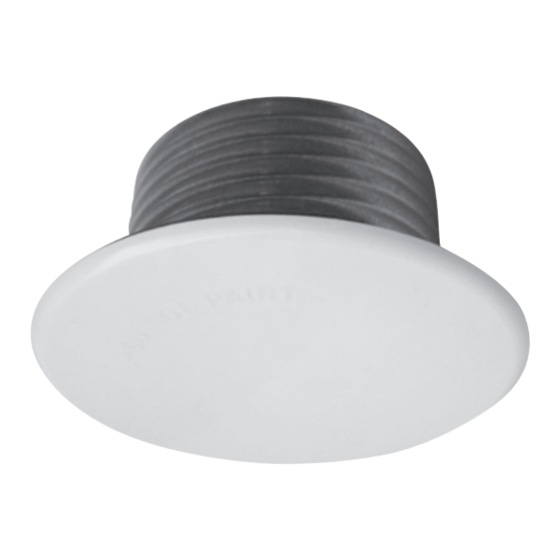

Model G5 series sprinklers are standard coverage, flat
plate concealed sprinklers designed for installation in ac-
cordance with NFPA 13. The sprinklers are offered with a
standard Model G4 cover plate (solid or perforated), a
Model G4 cover plate with a Quick-response (QR) gasket,
or a Model G4 cover plate with a Standard-response (SR)
gasket. Model G5 sprinklers must only be used with the
Model G4 cover plate listed or approved with the sprinkler.
All Model G5 series sprinklers use a fusible-link operating
element. Table A provides a summary of available Model
G5 series sprinklers, along with Listing and Approval in-
formation for each sprinkler and cover plate combination.
Model G5 Series Sprinkler Summary
K-Factor
Sprinkler
gpm/psi
1/2
Model
(L/min/bar
1/2
2.8
G5-28
(40)
4.2
G5-42
(60)
G5-56
5.6
(80)
5.6
G5-56 300
(80)
G5-80
8.0
(115)
Cover Plate
Model
)
G4
G4 QR Gasket
G4 SR Gasket
G4
G4 QR Gasket
G4 SR Gasket
G4
FM, LPCB, VdS, CE
G4 QR Gasket
G4 SR Gasket
G4
G4 QR Gasket
G4 SR Gasket
G4
G4 QR Gasket
G4 SR Gasket
www.reliablesprinkler.com
Standard Coverage, Concealed Pendent
K2.8, 4.2, 5.6, & 8.0 (40, 60, 80, & 115 metric)
Model G5 Series Sprinkler Cover Plates
Model G4 Cover Plate
(Solid)
Model G4 QR Gasket
Cover Plate
Listings
and
Sensitivity
Approvals
cULus
QR
FM
SR
cULus
QR
cULus, FM
SR
cULus
QR
cULus
SR
cULus
QR
SR
cULus
QR
cULus
SR
FM
SR
cULus
QR
cULus
SR
cULus
QR
cULus
SR
Bulletin 034 Rev. F June 2016
Model G4 Cover Plate
(Perforated)
Model G4 SR Gasket
Cover Plate
Table A
Max. Working
Sprinkler
Pressure
Identification
psi (bar)
Number (SIN)
175 (12)
RA3411
175 (12)
RA3413
250 (17)
175 (12)
250 (17)
RA3415
250 (17)
175 (12)
300 (21)
RA4014
175 (12)
RA3412
