Model N252 (SIN RA0842)
Nominal K-Factor = 25.2
Features
1. Provides maximum coverage areas up to 14 ft.
(4,27 m) by 14 ft. (4,27 m) 196 ft
2. Can be installed recessed below finished
ceilings with
/
" (13 mm) adjustment.
1
2
Available in brass, chrome, black plated
and white polyester coated finishes.
3. 165 °F (74 °C) and 212 °F (100 °C) temperature
ratings.
4. Listed by Underwriters' Laboratories
Inc, Underwriters' Laboratories for
use in Canada and Factory Mutual.
5. cULus Listed for unobstructed or non-
combustible obstructed construction.
Listings and Approvals
Listed by Underwriters' Laboratories Inc.,
UL certified for Canada (cULus) and
FM Approved (Pendent only) as a storage sprinkler.
NYC MEA 258-93-E
UL Listing Categories
Sprinklers, Automatic & Open
Sprinklers for Storage Protection (Area/Density)
UL Guide Number
VNIV
US Pat. No. 7,624,812
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
(18,21 m
).
2
2
Product Description
The Models N252 EC Pendent and Recessed Pendent
Sprinklers are control mode, extended coverage sprinklers for
storage and extra hazard density/area applications. This in-
cludes protection of the storage and display of Class I through
Class IV commodities, non-expanded Group A Plastics, and
non-expanded, exposed Group A Plastics in retail stores. The
Model N252 EC sprinklers offer maximum coverage areas up
to 14 ft by 14 ft (196 ft
by standard coverage sprinklers. This offers the advantage of
decreasing the number of required sprinklers, reducing labor
and material costs.
Operation
The Reliable Model N252 Extended Coverage Pendent
and Recessed Pendent Sprinklers utilize a levered fusible
alloy solder link. When the rated temperature is reached,
the solder melts and the two link halves separate allowing
sprinkler to operate and water to flow.
Model N252 EC Pendent and
Recessed Pendent Extended
Coverage Area Density
Sprinklers for Storage and
Extra Hazard Applications

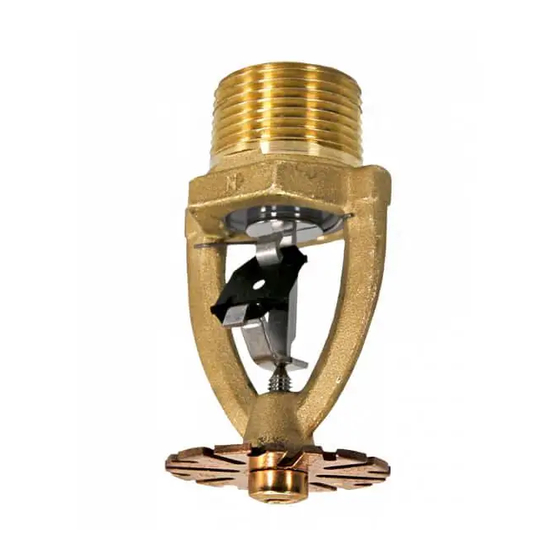

N252 EC Pendent
N252 EC Recessed Pendent
(UL approved only)
), which is almost twice of that provided
2
Bulletin 008
. D
Rev
Advertisement
Table of Contents
Related Manuals for Reliable N252 EC
Summary of Contents for Reliable N252 EC
- Page 1 When the rated temperature is reached, the solder melts and the two link halves separate allowing sprinkler to operate and water to flow. The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
- Page 2 Model FP escutcheons, illustrated herewith, are the only sprinklers. Sprinklers should be tightened between 22 to recessed escutcheons to be used with Model N252 EC 30 ft. - lbs. (29,8 - 40,7 Nm) torque. Sprinklers not tight- Recessed Pendent Sprinklers. Use of any other recessed ened to recommended torque may cause leakage or im- escutcheon will void all approvals and warranties.
- Page 3 ). Maximum spacing between sprinklers Design Criteria for FM is 14 ft (4.3 m); minimum spacing between sprin- The Model N252 EC Pendent Sprinklers are FM approved to klers is 10 ft (3.1 m). be utilized in accordance with the following guidelines: •...
- Page 4 Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
