Model F1FR56 Sprinkler Types
Standard Upright
Standard Pendent
Conventional
Vertical Sidewall
Horizontal Sidewall

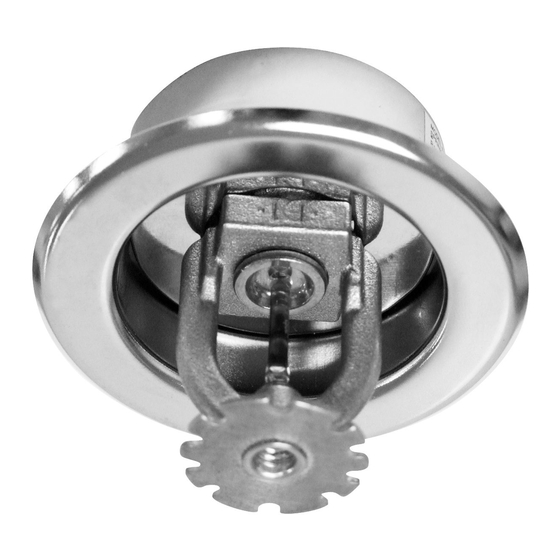

Model F1FR56 Recessed Sprinkler Types
Standard Pendent/F1/F2/FP
Horizontal Sidewall
Model F1FR56 Concealed Sprinkler Types
Standard Pendent
Model F1FR42, F1FRXLH & F1FR28 Sprinkler
Types
Standard Upright
Standard Pendent
Model F1FR42, F1FRXLH & F1FR28 Recessed
Sprinkler Types
Standard Pendent
Model F1FR56LL & F1FR42LL Low Lead Sprinkler
Types*
Standard Pendent
Less than 0.25% Lead Content
Listing & Approvals
1. Underwriters Laboratories Inc. and Certified for
Canada (cULus).
2. Factory Mutual Approvals (FM)
3. Loss Prevention Council (LPCB, UK)
4. VdS Schadenverhütung GmbH
5. *NSF Certified to NSF/ANSi Standard 61 Annex G
6. EC Certificate: 0786-CPD-40239 (RA1414), 0786-
CPD-40251 (RA1425), 0786-CPD-40252 (RA1475)
UL Listing Category
Sprinklers, Automatic & Open (VNIV)
Quick Response Sprinkler
Product Description
Reliable Models F1FR56, F1FR56LL, F1FR42, F1FR42LL,
F1FRXLH & F1FR28 Series Sprinklers are quick response
sprinklers which combine the durability of a standard sprin-
kler with the attractive low profile of a decorative sprinkler.
The Models F1FR56, F1FR56LL, F1FR42, F1FR42LL,
F1FRXLH & F1FR28 Series Recessed automatic sprinklers
utilize a 3.0 mm frangible glass bulb. These sprinklers have
demonstrated response times in laboratory tests which are
five to ten times faster than standard response sprinklers.
This quick response enables the Model F1FR56, F1FR56LL,
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523

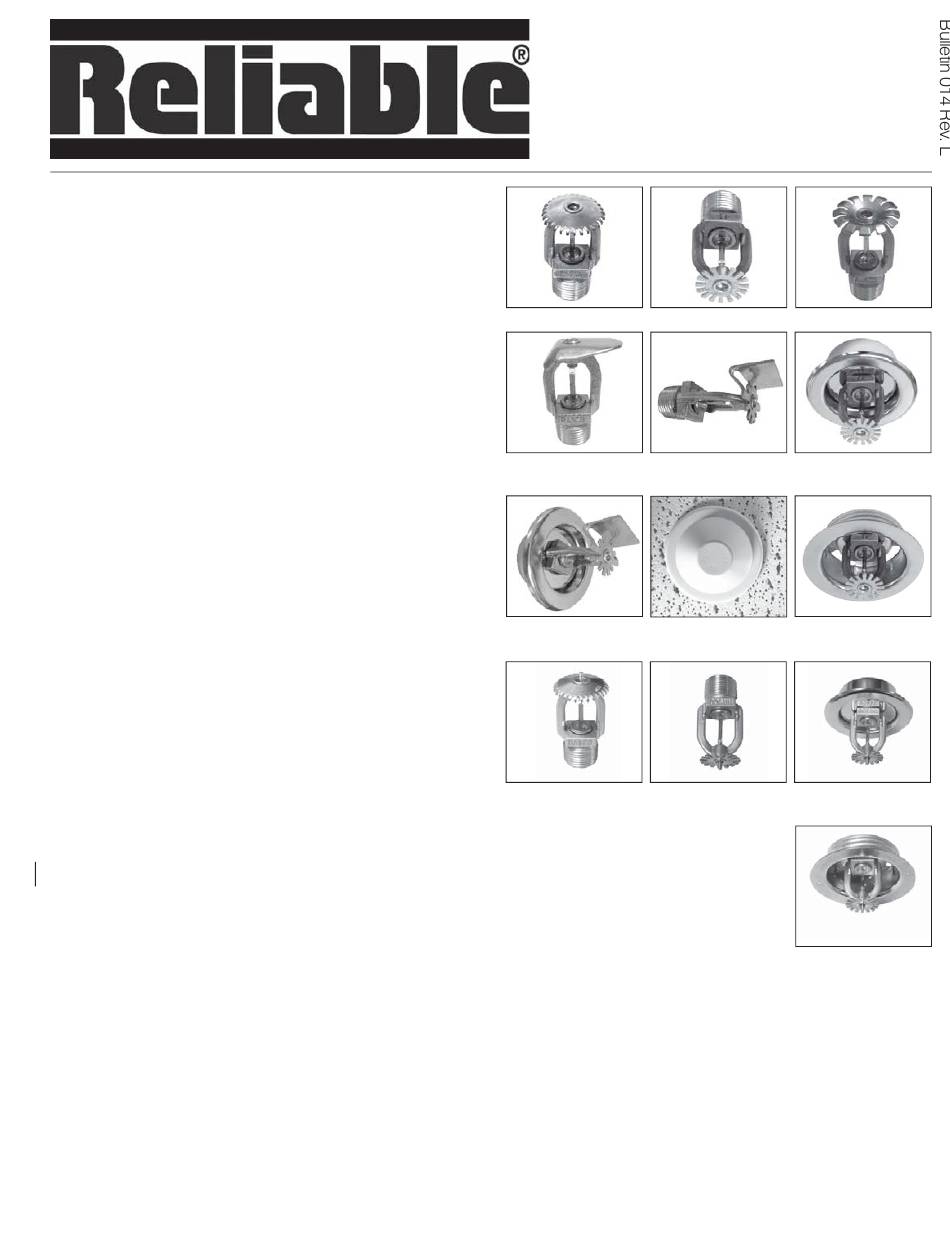

Model F1FR Series
Quick Response
Standard Spray
Upright
Vertical Sidewall
Horizontal Sidewall
Recessed
Concealed
Horizontal Sidewall
XLH Upright
XLH Pendent
F1FR42,
F1FR42LL,
F1FR28 Series sprinklers to apply wa-
ter to a fire much faster than standard
sprinklers of the same temperature rat-
ing.
The glass bulb consists of an accu-
rately controlled amount of special fluid
hermetically sealed inside a precisely
manufactured glass capsule. This glass bulb is specially
constructed to provide fast thermal response.
At normal temperatures, the glass bulb contains the fluid
in both the liquid and vapor phases. The vapor phase can
be seen as a small bubble. As heat is applied, the liquid
expands, forcing the bubble smaller and smaller as the liq-
uid pressure increases. Continued heating forces the liquid
to push out against the bulb, causing the glass to shatter,
opening the waterway and allowing the deflector to distrib-
ute the discharging water.
Bulletin 014 Rev. L
Pendent
Conventional
Recessed
Pendent/F1/F2
Recessed
Pendent
Pendent/FP
XLH Recessed
Pendent F1/F2
F1FRXLH
&
XLH Recessed
Pendent FP
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Reliable F1FR Series
Summary of Contents for Reliable F1FR Series
- Page 1 This quick response enables the Model F1FR56, F1FR56LL, The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523...
-
Page 2: Technical Data
Application Quick response sprinklers are used in fixed fire protection systems: Wet, Dry, Deluge or Preaction. Care must be exercised that the orifice size, temperature rating, deflector style and sprinkler type are in accordance with the latest published standards of the National Fire Protection Association or the approving Authority Having Jurisdiction. Quick response sprinklers are intended for installation as specified in NFPA 13. - Page 3 Model F1FR56, Upright, Pendent & Conventional Sprinklers Model F1FR42, F1FRXLH & F1FR28 Upright & Pendent Sprinklers Installation Wrench: Model D Sprinkler Wrench Installation Data: Sprinkler Identifi cation Number Thread Nominal K Factor Sprinkler Approval Nominal (SIN) Orifi ce Size Metric Height Organization Upright...
- Page 4 Model F1FR56, F1FR42, F1FRXLH & F1FR28 Quick Response Recessed Pendent Sprinkler Installation Wrench: Model GFR2 Sprinkler Wrench Installation Data: K Factor Nominal Thread Sprinkler Sprinkler Identifi cation Number Orifi ce Size Height (SIN) Metric 1/2” (15mm) 1/2” NPT(R½) 2.25” (57mm) RA1414 7/16”...
- Page 5 Model F1FR56 Quick Response Horizontal Sidewall Sprinkler Defl ector: HSW Installation Wrench: Model D Sprinkler Wrench Installation Data: Horizontal Sidewall Sprinkler Approval Organizations Nominal K Factor Sprinkler Height and Type of Approval Nominal Orifi ce Thread Size Identifi cation Ordinary Numbers (SIN) Metric Light Hazard...
-
Page 6: Installation
Figure 1 Figure 2 Installation Aid gagement. A choice of two cover plate assemblies provide A protective cap is included for use during installation. either 1/2” (13mm) or 5/8” (8mm) of cover adjustment, Important: The F1FR56 Sprinkler with Model CCP cover Do not install these sprinklers in ceiling which have positive plate is not an FM Approved combination. -
Page 7: Temperature Ratings
Temperature Ratings Finishes Sprinkler Standard Finishes Max. Ambient Sprinkler Escutcheon Cover plate Classifi cation Bulb Color Temperature Temp. Bronze Brass Chrome °C °F Ordinary 100°F (38°C) Orange Chrome Plated Chrome White Ordinary 100°F (38°C) Polyester Plated Intermediate 150°F (66°C) Yellow Coated White Painted (4)(5)(6) - Page 8 Mutual Research Corporation, or other similar organizations and also with the provisions of governmental codes or ordinances whenever applicable. Products manufactured and distributed by Reliable have been protecting life and property for over 90 years, and are installed and serviced by the most highly qualified and reputable sprinkler contractors located throughout the United States, Canada and foreign countries.
