Figure 16: Cantilever 3D Array, Front View; Table 10: 3D Array, Cantilever Version - Geokon 4420 Series Instruction Manual

24 | 3D MONITORING | GEOKON

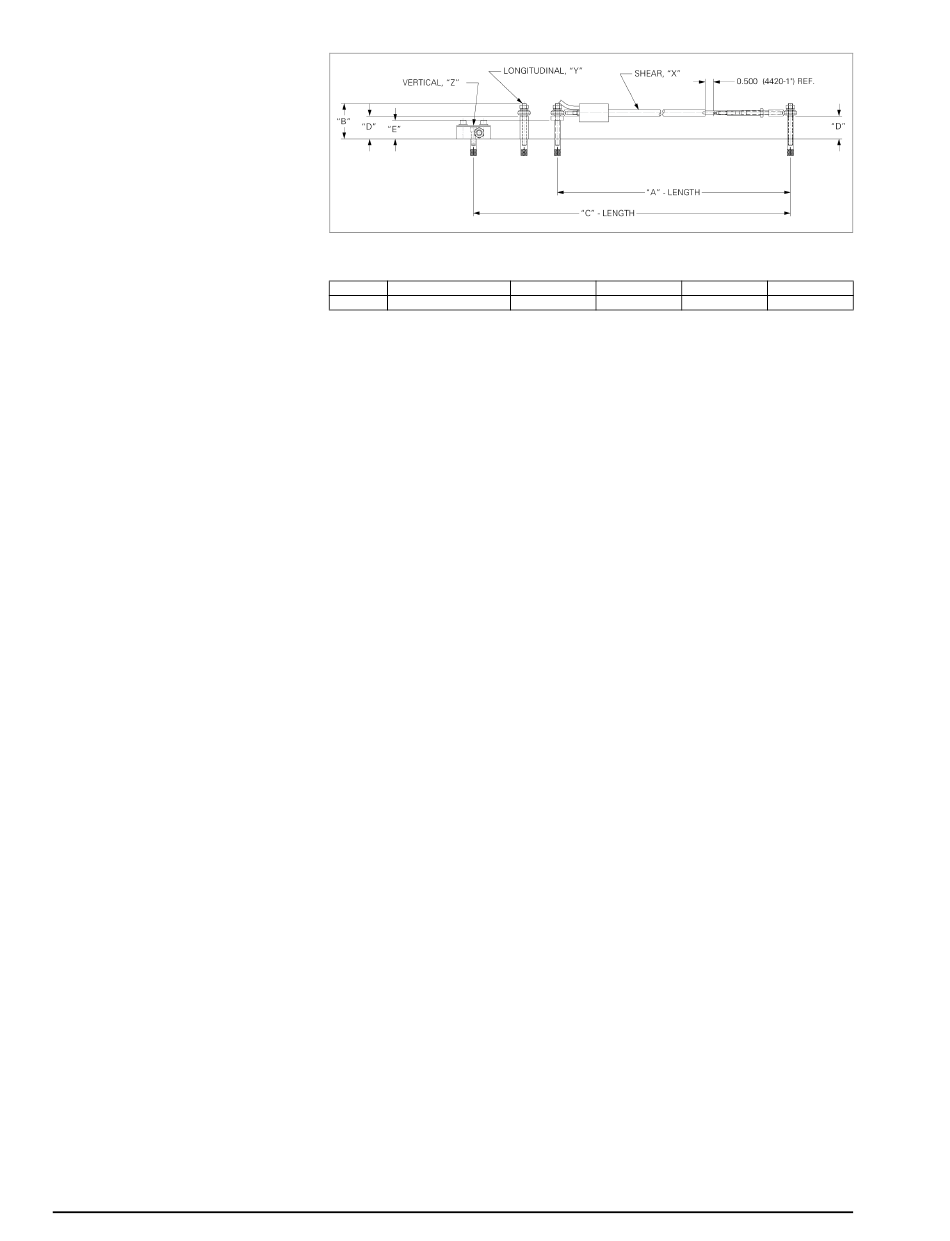

FIGURE 16: Cantilever 3D Array - Front View
Range 10: 'A' Length @ Midrange
25 mm (1") 342.90 mm (13.50")

TABLE 10: 3D Array, Cantilever Version

For detailed information about the 4420-3 low profile crackmeter, refer to
Appendix E.
'B' Height 'C' Length 'D' Dimension
53.98 mm (2.125") 558.80 mm (22") 34.93 mm (1.375") 28.58 mm (1.125")
16:
'E' Dimension
