ekwb EK-Dual DDC X-Top CSQ Installation And Mounting Manual

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
The barb hose fittings require only a small amount of force to screw them in; otherwise the high flow fittings might break. These fittings do not need to be tightened with much force because the
liquid seal is made using O-rings. The use of an algaecide and corrosion inhibitors is always recommended for any liquid cooling system.

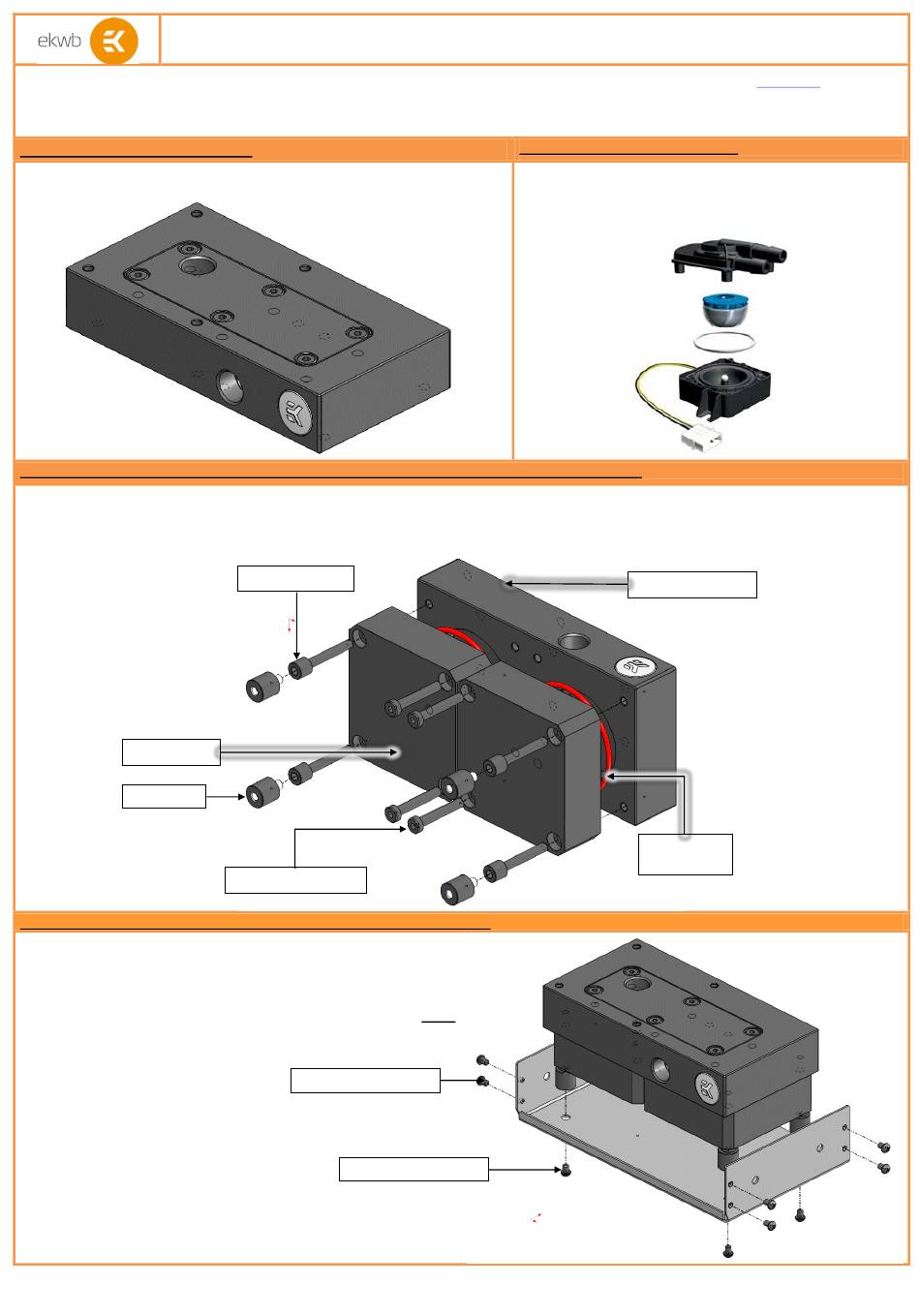

STEP 1: GENERAL INFORMATION

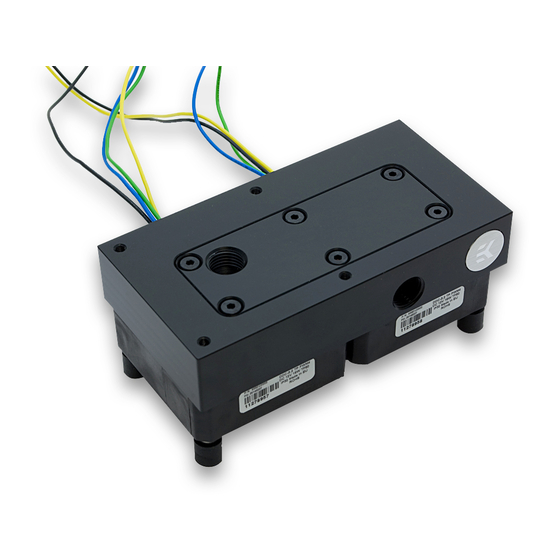

Sample picture of the EK-Dual DDC X-Top CSQ without pumps.
STEP 3: ASSEMBLING THE "EK-Dual DDC X-Top CSQ" WITH TWO PUMPS (if disassembled)
Take motor with impeller of your Laing DDC pump. Place it according to the picture. Do not forget to place back the stock O-rings into the pumps groove. Use
enclosed Allen key to secure the pumps with Four (4) M4×25 DIN 7984 and Four (4) Dumper DDC screws.
2 × DDC pump
M4 Dumper
STEP 4: INSERTING THE RESERVOIR TO YOUR COMPUTER CHASSIS
EK-Dual DDC X-Top CSQ can be mounted directly on computer chassis or into
5,25" bay drive and occupies three (3) 5.25" drive bay expansion slots in
your computer chassis.
If you decided to mount into Bay Drive slots free three slots in case they
are already occupied with other computer components such as optical or
hard disk drives. Place the reservoir in your 5.25" drive bay. After
completing STEP 5 in this manual, secure the reservoir to the drive bay
cage using the enclosed M3x4 DIN 7985 screws with Philips head
screwdriver.
Installation and mounting manual for EK-Dual DDC X-Top CSQ
Dumper DDC screw
M4×25 DIN 7984 screw
M3x4 DIN 7985 screw
M4x4 DIN 7984 screw
STEP 2: PREPARING THE PUMP
Take your Laing DDC pump. Unscrew the screws that connect stock
top (usually you will need a Torx T20 head screwdriver) at the bottom
and put the top away as you don't need it any more. Keep it for a
warranty reason if the pump stops working.
EK-Dual DDC X-Top
CSQ
Place the stock
O-rings.
Revision 1.0. Released on 6
www.ekwb.com for updates. Before
th
of May, 2014
