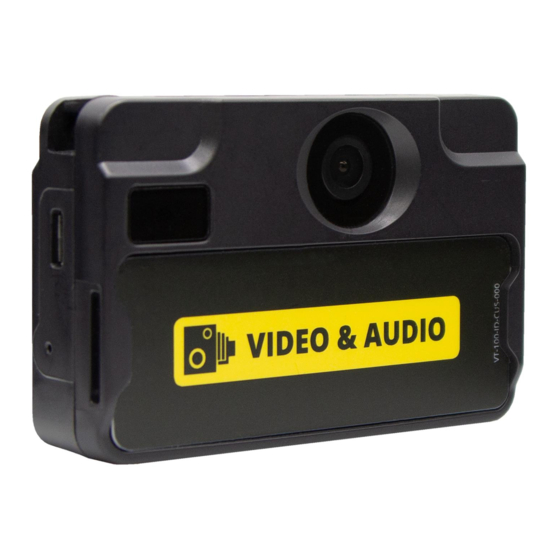

Motorola solutions VT-100 Quick Start Manual
  1. Manuals
  2. Brands
  3. Motorola solutions Manuals
  4. Digital Camera
  5. VT-100
  6. Quick start manual

Motorola solutions VT-100 Quick Start Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VT-100
QUICKSTART GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Motorola solutions VT-100

Summary of Contents for Motorola solutions VT-100

  • Page 1 VT-100 QUICKSTART GUIDE...

  • Page 2: Table Of Contents

    HOW TO CHARGE YOUR VT-100 HOW TO USE YOUR VT-100 HOW TO POWER UP YOUR VT-100 IF YOUR VT-100 IS CONFIGURED TO LIVESTREAM IF YOUR VT-100 IS NOT CONFIGURED TO LIVESTREAM HOW TO STOP RECORDING WEARING YOUR VT-100 VT-100 ROTATABLE LONG ALLIGATOR CLIP...

  • Page 3: Introduction

    Thank you for choosing the VT-100 Body-worn camera. This simple guide will lead you through the set up and use of your VT-100. The VT-100 is designed to function on standby for up to three months. Therefore, it is necessary to fully charge the device before first use.

  • Page 4: How To Charge Your Vt-100

    HOW TO CHARGE YOUR VT-100 To charge, you will need either a USB charging cable (AC-USB-MICROB-100) or the VT-100 variant of the 14-Port Dock (VT-100-DOCK14). USB Charging Cable VT-100 14-Port Dock (AC-USB-MICROB-100) (VT-100-DOCK14) QUICKSTART GUIDE | VT-100...
  • Page 5 If the VT-100 is configured to connect to Wi-Fi® while docking, the back-right LED will flash blue when searching for a Wi-Fi connection, and will become a solid blue when a Wi-Fi connection is found.

  • Page 6: How To Use Your Vt-100

    HOW TO POWER UP YOUR VT-100 The VT-100 starts recording (and live streaming, if it has been configured to do so), as soon as it is powered up. To power up your device, press either of the two buttons on the back of the device. The device will vibrate briefly, and recording will start.

  • Page 7: If Your Vt-100 Is Configured To Livestream

    - about once a second - indicating that it is looking for Wi-Fi to connect to. A solid blue light on the back-right LED indicates that the VT-100 has connected to the Wi-Fi. IF YOUR VT-100 IS NOT CONFIGURED TO LIVESTREAM The recording LED on the back-left of the device should now be a solid red, as well as the LED on the front of the device.

  • Page 8: How To Stop Recording

    To stop recording, press and hold either of the buttons on the back of your device for one second. The LED on the front of the device will switch off. If your VT-100 is configured to livestream, the back-right LED will remain a solid blue, indicating that the device is still connected to the Wi-Fi, but no footage is being recorded.

  • Page 9: Wearing Your Vt-100

    WEARING YOUR VT-100 The VT-100 can be attached to most uniforms and items of clothing using one of the robust clips which can be purchased from Motorola Solutions (see following pages for options available). These clips are rotatable - however, the camera should always remain upright when capturing footage.

  • Page 10: Vt-100 Rotatable Long Alligator Clip

    To detach the clip clip from your VT-100, pull the lip of the attachment plate away from the body of your VT-100 and firmly pull the attachment out of the rails.

  • Page 11: Vt-100 Klick Fast Stud

    Slide the VT-100 into the Klick Fast dock upside-down, so the device’s serial number is pointing towards the ceiling. Once the stud is firmly attached to the dock, rotate the VT-100 by twisting it until it is the right way up.

  • Page 12: Vt-100 Sports Camera Pillar

    To detach a VT-100 from the sports camera stud, pinch the two metal clips on the back of the stud together, and slide the stud (with the sports camera pillar) upwards out of the attachment rail.

  • Page 13: Vt-100 Epaulette (Shoulder) Clip

    • A VT-100 • An Epaulette (Shoulder) Clip (VT-100-FIX-EP) Firstly, attach your VT-100 to the mount by pulling the metal clip on the back of the stud towards the mount, and sliding the attachment into the mounting rail on the back of your VT-100 until a firm click is heard.
  • Page 14 You can change the vertical angle of your VT-100 by adjusting the stud on the back of your device to point up or down. To detach a VT-100 from the epaulette clip, pull the metal clip on the back of the stud towards the mount, and slide the stud (with the epaulette clip) upwards out of the attachment rail.

  • Page 15: Lanyards

    LANYARDS The Motorola Solutions lanyard (AC-LANYARD-05) is a long piece of sturdy polyester ribbon, with a split ring at each end and a phone strap attached to each split ring. It has five break points for added safety - allowing for quick release if pulled on.

  • Page 16: Regulatory Information

    WARNING: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. The device must not be co-located or operating in conjunction with any other antenna or transmitter. QUICKSTART GUIDE | VT-100...
  • Page 17 4.1 du document CNR-102, version 5. Tests DAS sont effectués en utilisant les positions recommandées par la CNR avec le téléphone émet à la puissance certifiée maximale dans toutes les bandes de fréquences testées sans distance attacher loin du corps. QUICKSTART GUIDE | VT-100...
  • Page 18 For more information, please visit: www.motorolasolutions.com Motorola Solutions Ltd. Nova South, 160 Victoria Street, London, SW1E 5LB, United Kingdom Availability is subject to individual country law and regulations. All specifications shown are typical unless otherwise stated and are subject to change without notice. MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license.
