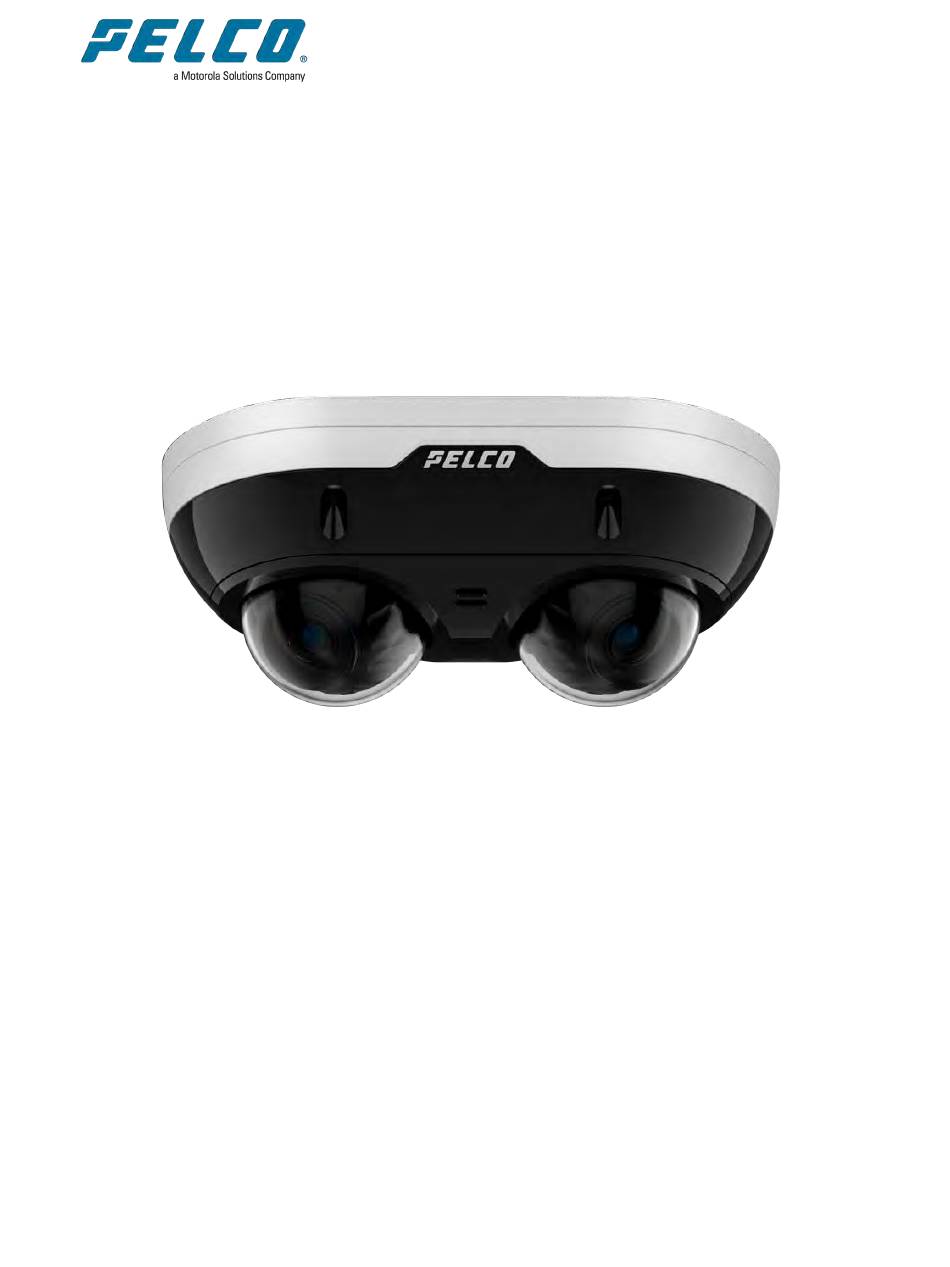

- Page 1 Sarix Enhanced Duo Installation Manual Model Numbers: SBDE1-6V7-E2H-IR SBDE1-10V7-E2H-IR SBDE1-16V7-E2H-IR Document number: C6754M Publication date: 1/2025...
-
Page 2: Legal Notices
Sarix Enhanced Duo Cameras Installation Manual Legal Notices © 2025, Pelco Corporation. All rights reserved. PELCO, the PELCO logo, PELCO are trademarks of Pelco Corporation. ONVIF is a trademark of Onvif, Inc. Covered by one or more claims of the patents listed at patentlist.hevcadvance.com. -
Page 3: Important Safety Information
Sarix Enhanced Duo Cameras Installation Manual Important Safety Information WARNING Failure to observe the following instructions may result in severe injury or death. Installation must be performed by qualified personnel only, and must conform to all local codes. This product is intended to be supplied by a UL Listed Power Unit marked “Class 2” or “LPS” or “Limited Power Source”... -
Page 4: Regulatory Notices
Sarix Enhanced Duo Cameras Installation Manual Regulatory Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Disposal And Recycling Information
Sarix Enhanced Duo Cameras Installation Manual Disposal and Recycling Information When this product has reached the end of its useful life, please dispose of it according to your local environmental laws and guidelines. European Union: This symbol means that according to local laws and regulations your product should be disposed of separately from household waste. -
Page 6: Table Of Contents
Sarix Enhanced Duo Cameras Installation Manual Table of Contents Important Safety Information Regulatory Notices For Korea Disposal and Recycling Information Overview Camera Module Cover View Internal View Junction Box View Mounting Plate View Pendant Camera View NPT Adapter View Pendant Wall Mount View Preparing for Installation Pre-Deployment In-Box Configuration Removing the Dual Head Cover... - Page 7 Sarix Enhanced Duo Cameras Installation Manual Pendant Mount Installation Pendant Mount Required Tools and Materials Pendant Mount Package Contents Installation Steps Mounting the Camera to a Pipe Mounting the Camera to the Pendant Wall Mount Installing the Camera into the NPT Adapter Connecting Cables Installing the Dual Head Cover Connecting a Camera to the Network...
-
Page 8: Overview
Sarix Enhanced Duo Cameras Installation Manual Overview Camera Module Cover View 1. Tamper resistant screws Star-shaped captive screws to fix the dome cover to the base. 2. Dome cover Vandal resistant dome cover. 3. Microphone slots Allows sound to pass through the dome cover to the microphone. C6754M | 1/2025... -
Page 9: Internal View
Sarix Enhanced Duo Cameras Installation Manual Internal View 1. Cable entry hole An entry hole for the cables required for camera operation. 2. microSD card slots (x2) Accepts up to two microSD cards for onboard storage. Install microSD cards so the metal contacts are facing the base of the camera. -
Page 10: Junction Box View
Sarix Enhanced Duo Cameras Installation Manual 10. I/O connector block Provides connections to external input/output and audio devices. If using the optional electrical box wall plate adapter or NPT adapter, align the mounting posts with the mounting slots. Junction Box View 1. -
Page 11: Mounting Plate View
Sarix Enhanced Duo Cameras Installation Manual Mounting Plate View 1. Camera mounting points Align the mounting points on the plate adapter to the mounting screws on the camera base. 2. Mounting holes Holes for mounting the plate to the mounting surface or the following electrical boxes: a. -
Page 12: Pendant Camera View
Sarix Enhanced Duo Cameras Installation Manual Pendant Camera View NOTE The NPT pipe and NPT-female to NPT-female adapter are not supplied by Pelco and should be sourced separately. However, if you are using the NPT adapter (NPTA-1201), the lock nut is included. 1. -
Page 13: Npt Adapter View
Sarix Enhanced Duo Cameras Installation Manual NPT Adapter View 1. 1-1/2” NPT thread mount Standard female 1-1/2” NPT thread mount for mounting the camera to an NPT pipe or wall arm. 2. Lanyard Connects to the lanyard anchor on the camera base.. 3. -
Page 14: Preparing For Installation
Sarix Enhanced Duo Cameras Installation Manual Preparing for Installation Pre-Deployment In-Box Configuration The camera comes equipped with an RJ45 connector that is accessible from the outside of the box for users that want to configure camera settings before installing the camera. The RJ45 connector is accessible through the small flap on the side of the camera box for easy configuration before unpacking the camera. -
Page 15: Removing The Dual Head Cover
Sarix Enhanced Duo Cameras Installation Manual Removing the Dual Head Cover 1. Remove the cover by loosening the screws that fix the cover to the base. Use the provided starshaped screwdriver to loosen the screws. NOTE Be careful not to scratch or touch the dome bubble. The resulting marks or fingerprints may affect the overall image quality. -
Page 16: Mounting And Aiming Video Analytics Cameras
Sarix Enhanced Duo Cameras Installation Manual Mounting and Aiming Video Analytics Cameras When installing a Pelco Smart analytics camera, follow the listed mounting and aiming recommendations to maximize the camera's analytics capabilities: The camera should be installed above 2.74 m (9 feet). The camera should tilt downwards no more than 45 degrees. - Page 17 Sarix Enhanced Duo Cameras Installation Manual NOTE If you will pull multiple cables through the sealing grommet, apply silicone sealant to seal any gaps in the grommet. C6754M | 1/2025...
-
Page 18: Surface Mount Installation
Appropriate screwdriver for attaching camera to an electrical box or mounting surface. Surface Mount Package Contents Ensure the package contains the following: Pelco Sarix Enhanced Duo Camera Mounting plate adapter Star-shaped screwdriver 4x screws and anchors — for securing the camera to the mounting surface. - Page 19 Sarix Enhanced Duo Cameras Installation Manual 1. Using the Surface Mounting Template, drill 4 pilot holes into the mounting surface for the mounting screws. 2. Hammer the supplied plastic anchors into the holes. 3. Cut the cable entry hole into the mounting surface with a drywall saw or hole saw. 4.
-
Page 20: Connecting Cables
Sarix Enhanced Duo Cameras Installation Manual 7. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera base. The thread around the grommet should line up with the cable entry hole. The rubber grommet should be pressed firmly into the cable entry hole to create a seal. -
Page 21: Installing The Dual Head Cover
Sarix Enhanced Duo Cameras Installation Manual 3. Connect power using Power over Ethernet (PoE) Class 3 or Class 4 — If PoE is available, the LEDs will turn on. 4. Check that the Connection Status LED indicator indicates the correct state. For more information, Connection Status LED Indicator on page 39. - Page 22 Sarix Enhanced Duo Cameras Installation Manual 1. Remove the plastic covers on the inside of the dome bubbles. 2. Attach the lanyard to the cover. 3. Attach the cover to the base and tighten the screws with the star-shaped screwdriver. 4.
-
Page 23: Junction Box Installation
Appropriate screwdriver for attaching camera to the mounting surface. Junction Box Package Contents Ensure the package contains the following: Pelco Sarix Enhanced Duo Camera Mounting plate adapter Star-shaped screwdriver 4x screws and anchors — for securing the camera to the mounting surface. - Page 24 Sarix Enhanced Duo Cameras Installation Manual 1. Using the Junction Box Mounting Template, drill 4 pilot holes into the mounting surface for the mounting screws. 2. Align the conduit for the cables with the side conduit entry surface area on the mounting template. 3.
-
Page 25: Installing The Camera Base Into The Junction Box
Sarix Enhanced Duo Cameras Installation Manual 5. Arrange and feed the required cables through the conduit. Pull the cables through the side conduit entry hole on the junction box. 6. Screw the conduit into the side conduit entry hole on the junction box. The side conduit entry hole is compatible with 1/2"... -
Page 26: Connecting Cables
Sarix Enhanced Duo Cameras Installation Manual 1. Attach the lanyard on the junction box to the anchor on the camera base. 2. Pull the required cables through the cable entry hole on the camera base. 3. Push the rubber sealing grommet with the required cables into the cable entry hole on the camera base. -
Page 27: Installing The Dual Head Cover With The Junction Box
Sarix Enhanced Duo Cameras Installation Manual 3. Connect power using Power over Ethernet (PoE) Class 3 or Class 4 — If PoE is available, the LEDs will turn on. 4. Check that the Connection Status LED indicator indicates the correct state. For more information, Connection Status LED Indicator on page 39. - Page 28 Sarix Enhanced Duo Cameras Installation Manual 1. Remove the plastic covers on the inside of the dome bubbles. 2. Attach the lanyard to the cover. 3. Attach the cover to the base and tighten the screws with the star-shaped screwdriver. 4.
-
Page 29: Pendant Mount Installation
If you will be installing the NPT adapter (NPTA-1201), you will need: 1-1/2" NPT female to female adapter NPT pipe Pendant Mount Package Contents Ensure the package contains the following: Pelco Sarix Enhanced Duo Camera Mounting plate adapter Star-shaped screwdriver Rubber grommet RJ-45 grommet piercing cap... - Page 30 Sarix Enhanced Duo Cameras Installation Manual 1. Pull the required cables through the NPT conduit pipe. 2. Apply thread seal tape to the pipe and screw on the 1-1/2” NPT female to NPT female pipe adapter. 3. Screw the lock nut onto the NPT adapter. 4.
-
Page 31: Mounting The Camera To The Pendant Wall Mount
Sarix Enhanced Duo Cameras Installation Manual 5. Carefully tighten the lock nut until the NPT adapter is secured to the conduit pipe. Mounting the Camera to the Pendant Wall Mount The pendant wall arm mount (WLMT-1021) is an optional accessory and must be purchased separately. 1. - Page 32 Sarix Enhanced Duo Cameras Installation Manual 3. Pull the required cables through the preferred cable entry hole on the pendant wall mount. a. If you are using the pipe entry hole, pull the cables through the pipe conduit then the wall mount.
-
Page 33: Installing The Camera Into The Npt Adapter
Sarix Enhanced Duo Cameras Installation Manual 5. Loosely thread the lock nut onto the NPT adapter, then secure the NPT adapter into the pendant wall mount. 6. Carefully tighten the lock nut until the NPT adapter is secured to the wall mount. Installing the Camera into the NPT Adapter Before installing the camera, you must first prepare either the wall mount or NPT pipe mount.. -
Page 34: Connecting Cables
Sarix Enhanced Duo Cameras Installation Manual 1. Attach the lanyard to the camera base. Pull the required cables through the cable entry hole. Inserting 2. Pull the required cables through the rubber sealing grommet. For more information, see Cables through the Sealing Grommet on page 11. -
Page 35: Installing The Dual Head Cover
Sarix Enhanced Duo Cameras Installation Manual 1. If the camera is connected to any external devices, connect the I/O or audio cables to the I/O connector block. For more information, see Connecting to External Devices on page 38. 2. Connect a network cable to the camera's Ethernet port (RJ-45 connector). The Link LED indicator will turn on once a network link has been established. - Page 36 Sarix Enhanced Duo Cameras Installation Manual 1. Remove the plastic covers on the inside of the dome bubbles. 2. Attach the lanyard to the cover. 3. Attach the cover to the base and tighten the screws with the star-shaped screwdriver. 4.
-
Page 37: Connecting A Camera To The Network
Camera's web interface. Enter the camera's IP address in a web browser to access the web interface. For more information, see the Pelco Sarix Enhanced Duo Operations Manual . If the camera is in the factory default state, you will be redirected to the New User page to create an administrator user: 1. -
Page 38: Accessing The Live Video Stream
Sarix Enhanced Duo Cameras Installation Manual NOTE When you log in the first time, the camera will be in a factory default state and no password is required. You must create a user with administrator privileges before the Initializing a Camera Username and device is operational. - Page 39 Sarix Enhanced Duo Cameras Installation Manual 1. To aim the camera, adjust each of the camera heads as required. a. Release the latch to unlock the camera head for panning, tilting and azimuth rotation. b. Rotate the azimuth control ring to set the image in the correct rotation. Pan and tilt the camera head to capture the desired field of view.
-
Page 40: Zooming And Focusing The Dome Camera
Sarix Enhanced Duo Cameras Installation Manual c. Lock the latch back into position when the camera head is in the desired position. 2. In the camera web browser interface, adjust the camera’s Image and Display settings to achieve the desired image parameters and position. Zooming and Focusing the Dome Camera Ensure this procedure is performed after the dome cover is installed, so you can accommodate for the focus shift caused by the dome bubble. -
Page 41: Configure The Microphone From The Camera Web Interface
Enhanced Duo Operations Manual . For More Information Additional information about setting up and using the device is available in the following guides: Pelco Sarix Enhanced Duo Operations Manual available on the Pelco website: www.pelco.com. Camera Configuration Tool User Guide C6754M | 1/2025... -
Page 42: Cable Connections
Sarix Enhanced Duo Cameras Installation Manual Cable Connections C6754M | 1/2025... -
Page 43: Connecting To External Devices
Sarix Enhanced Duo Cameras Installation Manual Connecting to External Devices External devices are connected to the camera through pluggable terminal blocks. For the locations of the terminals, see Camera Module on page 1. The pinout for the I/O terminal block is shown in the following diagram: 1. -
Page 44: Connection Status Led Indicator
Connected Connected to the Network Video Management software. The default connected setting can be changed to Off using the camera's web user interface. For more information, see the Pelco Sarix Enhanced Duo Operations Manual . C6754M | 1/2025... -
Page 45: Troubleshooting Network Connections And Led Behavior
Sarix Enhanced Duo Cameras Installation Manual Troubleshooting Network Connections and LED Behavior NOTE For any of the below LED behaviors, ensure that the camera is getting power and is using a good network cable before trying another solution. LED Behavior Suggested Solution Green LED is off and amber is on Perform a factory reset of the camera using the physical... -
Page 46: Resetting To Factory Default Settings
Sarix Enhanced Duo Cameras Installation Manual Resetting to Factory Default Settings If the device no longer functions as expected, you can choose to reset the device to its factory default settings. Use the firmware revert button to reset the device. The firmware revert button is shown in the following diagram: Figure 1: The firmware revert button on the camera. -
Page 47: Cleaning
Sarix Enhanced Duo Cameras Installation Manual Cleaning Dome Bubble If the video image becomes blurry or smudged in areas, it may be because the dome bubble requires cleaning. To clean the dome bubble: Use hand soap or a non-abrasive detergent to wash off dirt or fingerprints. Use a microfiber cloth or non-abrasive fabric to dry the dome bubble. -
Page 48: Pelco Troubleshooting Contact Information
Sarix Enhanced Duo Cameras Installation Manual Pelco Troubleshooting Contact Information For further assistance, contact Pelco Product Support at 1-800-289-9100 (USA and Canada) or +1-559- 292-1981 (international). Do not try to repair the unit yourself. Leave maintenance and repairs to qualified technical personnel only. C6754M | 1/2025... - Page 49 Sarix Enhanced Duo Cameras Installation Manual C6754M | 1/2025...
