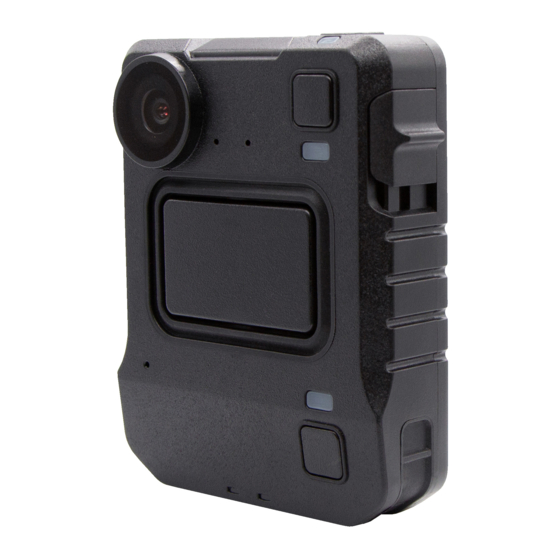

VIDEOBADGE
VB-400 FIXINGS
TECHNICAL SPECIFICATIONS
Edesix provides a number of accessories
and fixings to complement your VideoBadge
VB-400, making the badge simple to use,
easy to wear and secure for your daily needs.
Designed for optimum performance and comfort in a wide range of situations, the VB-400 comes with a variety of fixing
types to suit every uniform type and body shape.
QUICK RELEASE MOUNTS
Quick Release Mounts are compatible with Klick Fast bases, giving the user a great degree of flexibility over their VB-400
fixings.
Fixing
+44 131 510 0232
KLICK FAST QUICK RELEASE STUD
Mounts directly onto police uniforms.
Suitable for use with Klick Fast clothing fixings.
About
Fixed angle fitting for closest mounting to body - ideal for use
Weight
12g
Dimensions
57mm x 48mm x 20mm
QUICK RELEASE SPORTS CAMERA PILLAR
Compatible with sports camera mounts.
About
Allows VB-400 to be used with an extensive variety of 3rd party
Weight
8g
Dimensions
68mm x 40mm x 9mm
sales@edesix.com
Description / Specification
with 3 - and 4 - point harnesses.
mounts, allowing helmet-mounting, dashboard mounting etc.
www.edesix.com
ED-002-049-07
Reg: SC235672 | VAT: GB 803 904 251
Advertisement
Table of Contents
Related Manuals for Motorola solutions edesix VIDEOBADGE VB-400
Summary of Contents for Motorola solutions edesix VIDEOBADGE VB-400
- Page 1 VIDEOBADGE VB-400 FIXINGS TECHNICAL SPECIFICATIONS Edesix provides a number of accessories and fixings to complement your VideoBadge VB-400, making the badge simple to use, easy to wear and secure for your daily needs. Designed for optimum performance and comfort in a wide range of situations, the VB-400 comes with a variety of fixing types to suit every uniform type and body shape.
- Page 2 Fixing Description / Specification KLICK FAST QUICK RELEASE TILT MOUNT Mounts directly onto police uniforms. Suitable for use with Klick Fast clothing fixings. About Tilting fitting for adjustable mounting angle against the body - ideal for use with most uniform fittings. Weight Dimensions 56mm x 40mm x 19mm...
- Page 3 KLICK FAST MOUNTS Klick Fast mounts are compatible with Klick Fast docks - a standard fitting on most police, public safety and security uniforms. VB-400 Body Worn Cameras fitted with Klick Fast mounts do not require additional fixings, they attach straight on to compatible uniforms.
- Page 4 CLOSE-FIT MOUNTS The Close-Fit Mounts are compatible with almost every type of uniform and fabric, and can be detached with a simple twist motion. The MOLLE Mount is compatible with MOLLE tactical clothing, offering maximum functionality in police, security & military settings.
- Page 5 HARNESSES Harnesses provide a comfortable and secure means of wearing a Body Worn Camera, typically when worn for a full shift and needs to be clearly visible to members of the public. Fixing Description / Specification KLICK FAST 3-POINT CHEST HARNESS Positions VideoBadge on left of wearer to enable driving with seatbelt About...
- Page 6 Wearing the Klick Fast Shoulder Harness Instructions Attaching the clips With the Klick Fast stud attachment facing to the front, attach the top clip to the top of the velcro strap as shown. Then attach the bottom clip to the narrow part of the main shoulder strap. Wearing the shoulder harness Place the main shoulder strap on your left shoulder and place your right arm through the elastic strap, making sure it doesn’t restrict the movement of your arms.
