Bio Compression Systems SC-2004-OC Instructions For Use Manual page 13

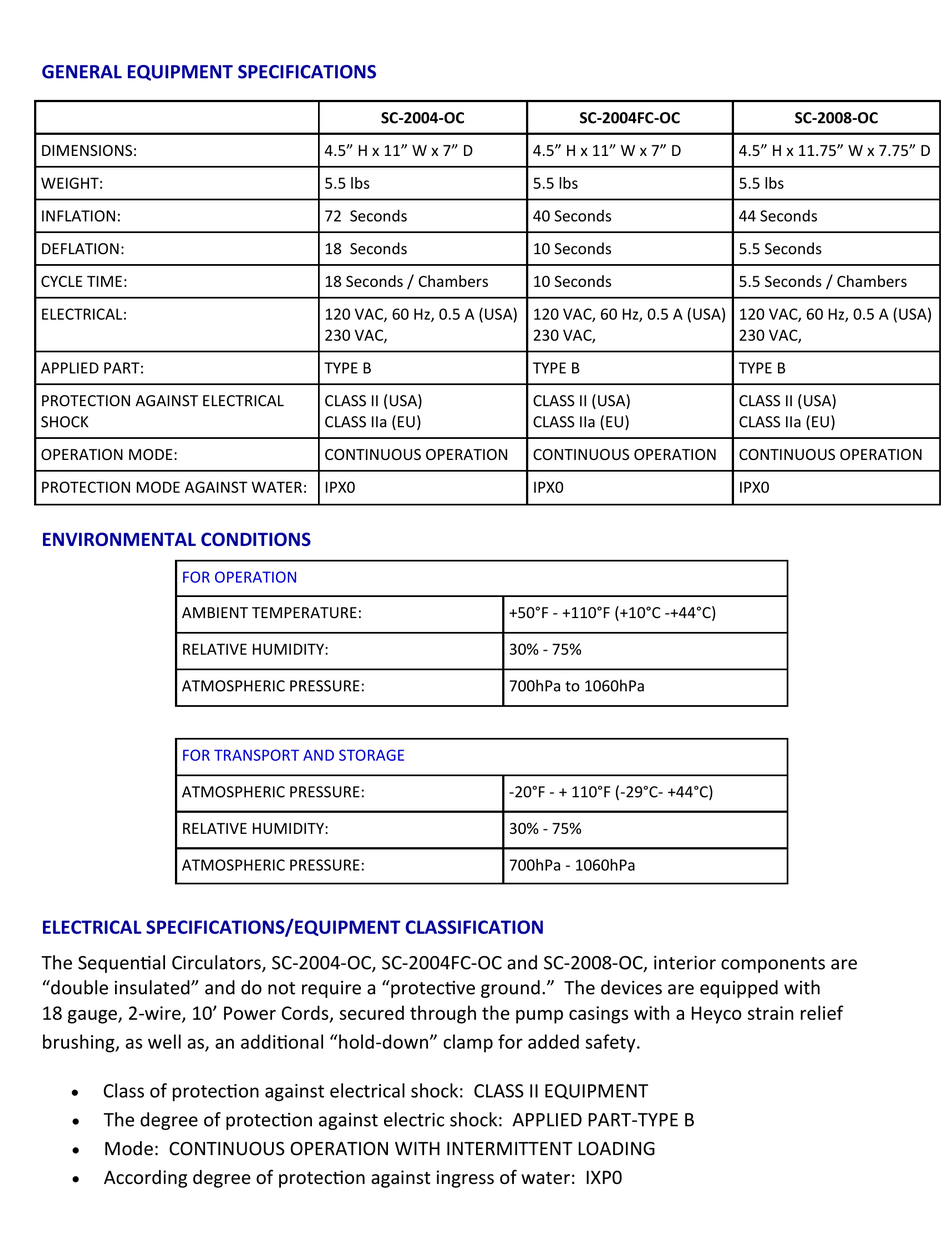

GENERAL EQUIPMENT SPECIFICATIONS
DIMENSIONS:
WEIGHT:
INFLATION:
DEFLATION:
CYCLE TIME:
ELECTRICAL:
APPLIED PART:
PROTECTION AGAINST ELECTRICAL
SHOCK
OPERATION MODE:
PROTECTION MODE AGAINST WATER: IPX0
ENVIRONMENTAL CONDITIONS
FOR OPERATION
AMBIENT TEMPERATURE:
RELATIVE HUMIDITY:
ATMOSPHERIC PRESSURE:
FOR TRANSPORT AND STORAGE
ATMOSPHERIC PRESSURE:
RELATIVE HUMIDITY:
ATMOSPHERIC PRESSURE:
ELECTRICAL SPECIFICATIONS/EQUIPMENT CLASSIFICATION
The Sequential Circulators, SC-2004-OC, SC-2004FC-OC and SC-2008-OC, interior components are
"double insulated" and do not require a "protective ground." The devices are equipped with
18 gauge, 2-wire, 10' Power Cords, secured through the pump casings with a Heyco strain relief
brushing, as well as, an additional "hold-down" clamp for added safety.

Class of protection against electrical shock: CLASS II EQUIPMENT

The degree of protection against electric shock: APPLIED PART-TYPE B

Mode: CONTINUOUS OPERATION WITH INTERMITTENT LOADING

According degree of protection against ingress of water: IXP0
SC-2004-OC
4.5" H x 11" W x 7" D
5.5 lbs
72 Seconds
18 Seconds
18 Seconds / Chambers
120 VAC, 60 Hz, 0.5 A (USA)
230 VAC,
TYPE B
CLASS II (USA)
CLASS IIa (EU)
CONTINUOUS OPERATION
SC-2004FC-OC
4.5" H x 11" W x 7" D
5.5 lbs
40 Seconds
10 Seconds
10 Seconds
120 VAC, 60 Hz, 0.5 A (USA)
230 VAC,
TYPE B
CLASS II (USA)
CLASS IIa (EU)
CONTINUOUS OPERATION
IPX0
+50°F - +110°F (+10°C -+44°C)
30% - 75%
700hPa to 1060hPa
-20°F - + 110°F (-29°C- +44°C)
30% - 75%
700hPa - 1060hPa
SC-2008-OC
4.5" H x 11.75" W x 7.75" D
5.5 lbs
44 Seconds
5.5 Seconds
5.5 Seconds / Chambers
120 VAC, 60 Hz, 0.5 A (USA)
230 VAC,
TYPE B
CLASS II (USA)
CLASS IIa (EU)
CONTINUOUS OPERATION
IPX0
