SunSetter EasyShade Replacement page 2

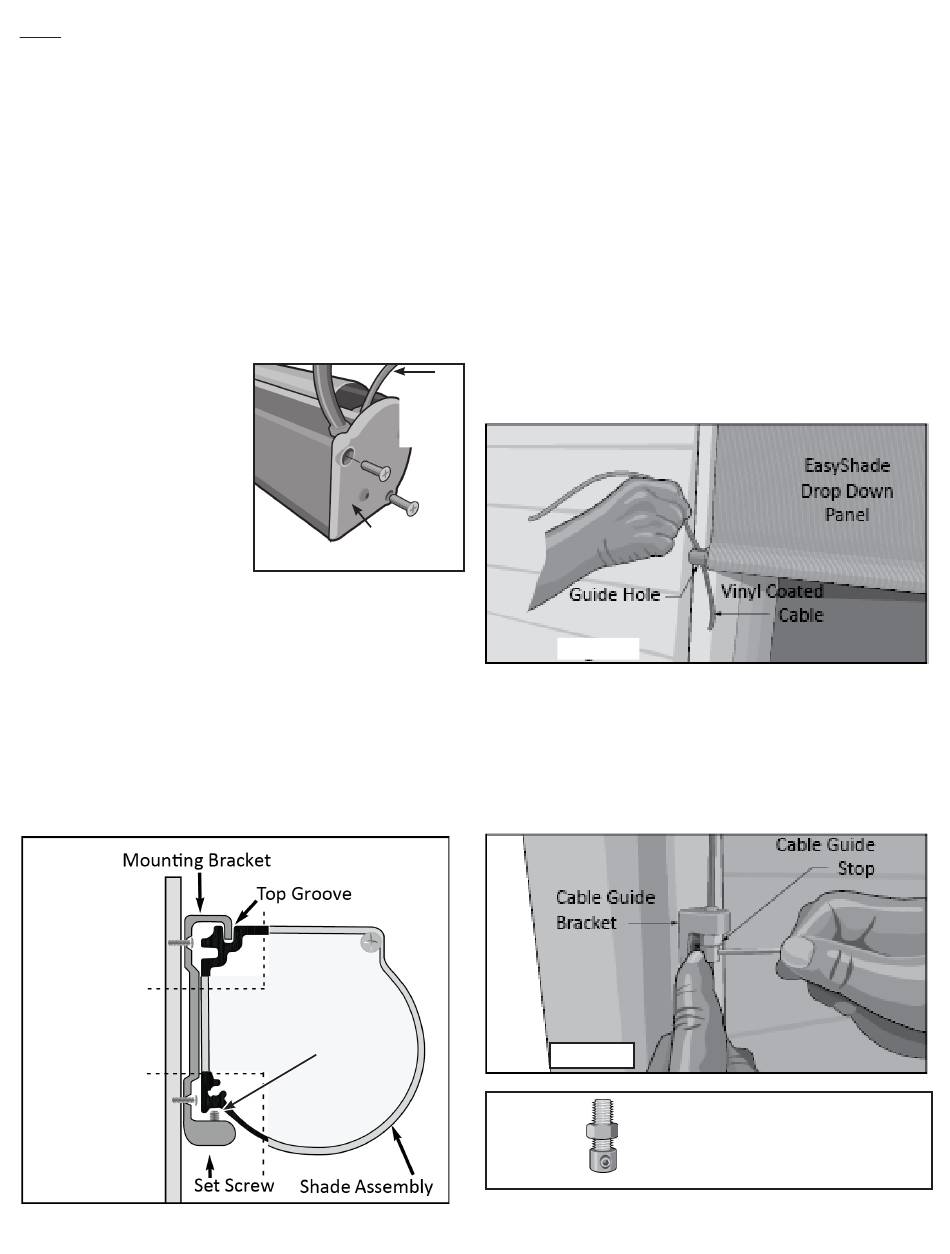

Note: Before performing Step 8, take a moment to
observe the orientation of the Housing End Plate.
See Figure 6.
8. On the Motor end of the Housing, remove the two
Phillips head screws that secure the End Plate to the
Housing, then remove the End Plate. See Figure 6.
9. Install the new Housing End Plate on to the Motor,
beginning with the top Allen head screw. Once the
top Allen head screw has been started, lift up on
the Housing End Plate to allow for alignment and
installation of the second Allen head screw. When
both Allen head screws have been started and
alignment achieved, tighten both Allen head screws.
10. On the Motor end,
ensure the Vinyl Coated
Cable is positioned in the
Fabric Slot (see Figure 6).
Align the End Plate with
the Housing and install the
two Phillips head screws to
secure the End Plate to the
Housing.
11. With your helper, lift the EasyShade assembly
up to the installed Mounting Brackets and insert
the Top Groove of the EasyShade assembly onto
the protruding tab of the Mounting Brackets. While
maintaining upward pressure to keep the Top
Groove of the EasyShade assembly on the Tab of the
Mounting Brackets, press the EasyShade assembly
toward the Mounting Bracket and be sure that the Set
Screw is aligned in the Recessed Portion of the Shade
Assembly. See Figure 7.
Vinyl
Coated
Cable
Housing
Figure 6
End Plate
Figure 7
Recessed portion of
the Shade Assembly
12. Tighten the Set Screw in each Mounting Bracket
until the EasyShade assembly is secure.
13. Plug the Motor Power Cord into your electrical
outlet.
14. Open your EasyShade using the DOWN Button on
your Remote Transmitter.
15. Unplug the Motor cord.
16. At each end of the EasyShade Housing assembly,
uncoil the Vinyl Coated Cable. Allow it to hang flat
against the mounting surface.
17. Insert the Vinyl Coated Cable located at each end
of the Housing assembly through the Guide Holes
at each end of the EasyShade drop down Panel. See
Figure 8.
Figure 8
18. Place the lower end of one of the Vinyl Coated
Cables through the hole in the Cable Guide Bracket.
See Figure 9. From the bottom, slide one of the Cable
Guide Stops (see Figure 10) onto the Vinyl Cable and
secure in place with the supplied 5/64" Allen wrench.
Repeat for the other side of the EasyShade.
Figure 9
Figure 10
Insert Cable Guide Stop
pointing upward, from underneath
the Cable Guide Bracket.
