SunSetter EasyShade Replacement Instructions page 3

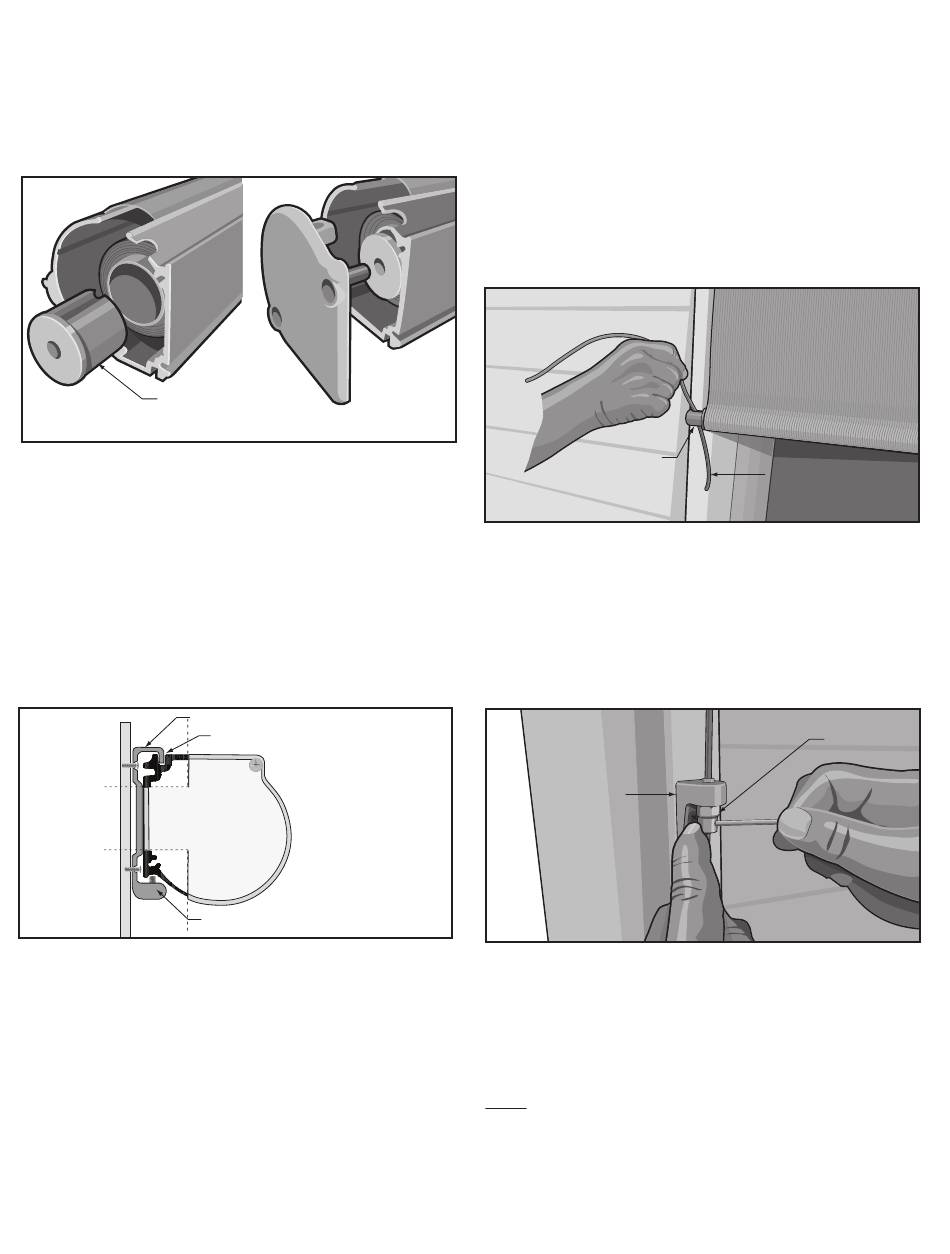

16. Slide the nylon roller bar insert into place.
Slide the end cap into the insert and make sure that
the vinyl coated cable is positioned in the fabric slot.
Align the end plate with the housing and install the
two Phillips head screws to secure it in place.
See Figure 9.
Nylon Roller
Bar Insert
Figure 9
17. With your helper, lift the shade assembly up to
the installed mounting brackets and insert the top
groove of the shade assembly onto the protruding
tab on the mounting brackets. While maintaining
upward pressure to keep the top groove of the shade
assembly on the tab of the mounting brackets, press
the shade assembly toward the mounting bracket and
be sure that the set screw is aligned in the recessed
portion of the shade assembly.
See Figure 10.
Mounting Bracket
Figure 10
18. Tighten the set screw in each mounting bracket
until the shade assembly is secure.
19. Connect the Motor Power Cord to the Solar Panel.
20. Reset your existing Remote Transmitter to
communicate with the new replacement Motor
and set new Up and Down stop positions using the
instructions in Appendix A. Then continue to Step 21.
Top Groove
Set Screw
21. Open your EasyShade pressing the DOWN button
on your remote control. With the EasyShade open,
disconnect the Power Cord from the Solar Panel.
22. At each end of the EasyShade Housing Assembly
uncoil the Vinyl Coated Cable. Allow the coiled cable
to hang flat against the mounting surface.
23. Insert the Vinyl Coated Cable located at each end
of the Housing Assembly through the guide holes at
each end of the EasyShade Drop Down Fabric Panel.
See Figure 11.
Guide
Hole
Figure 11
24. Place the lower end of one of the Vinyl Coated
cables through the hole in the Cable Guide Bracket
and from the bottom slide one of the Cable Guide
Stops onto the Vinyl Coated Cable and secure in place
with the 5/64" Allen wrench. Repeat for the other side
of the EasyShade.
See Figure 12.
Figure 12
Cable Guide
Bracket
25. Ensure the Vinyl Coated Cables are tight. Adjust
the tension using a 7/16" open end wrench as follows.
On each of the Cable Guide Stops you will find 7/16"
nut, by turning the nut counter clockwise you can
tighten the cable.
Note: DO NOT OVER TIGHTEN THE CABLE.
26. Connect the Motor Power Cord to the Solar Panel.
27. Test for proper operation. Enjoy.
3
EasyShade
Drop Down
Fabric Panel
Vinyl Coated
Cable
Cable Guide
Stop
