SunSetter EasyShade Replacement Instructions page 2

8. On the motor end of the housing remove the two
Phillips head screws that secure the end plate to the
housing. Pull the end plate/motor and the roller bar
about 6 inches out of the Housing. While holding the
roller bar, pull the end plate/motor out of the roller
bar. See Figure 4.

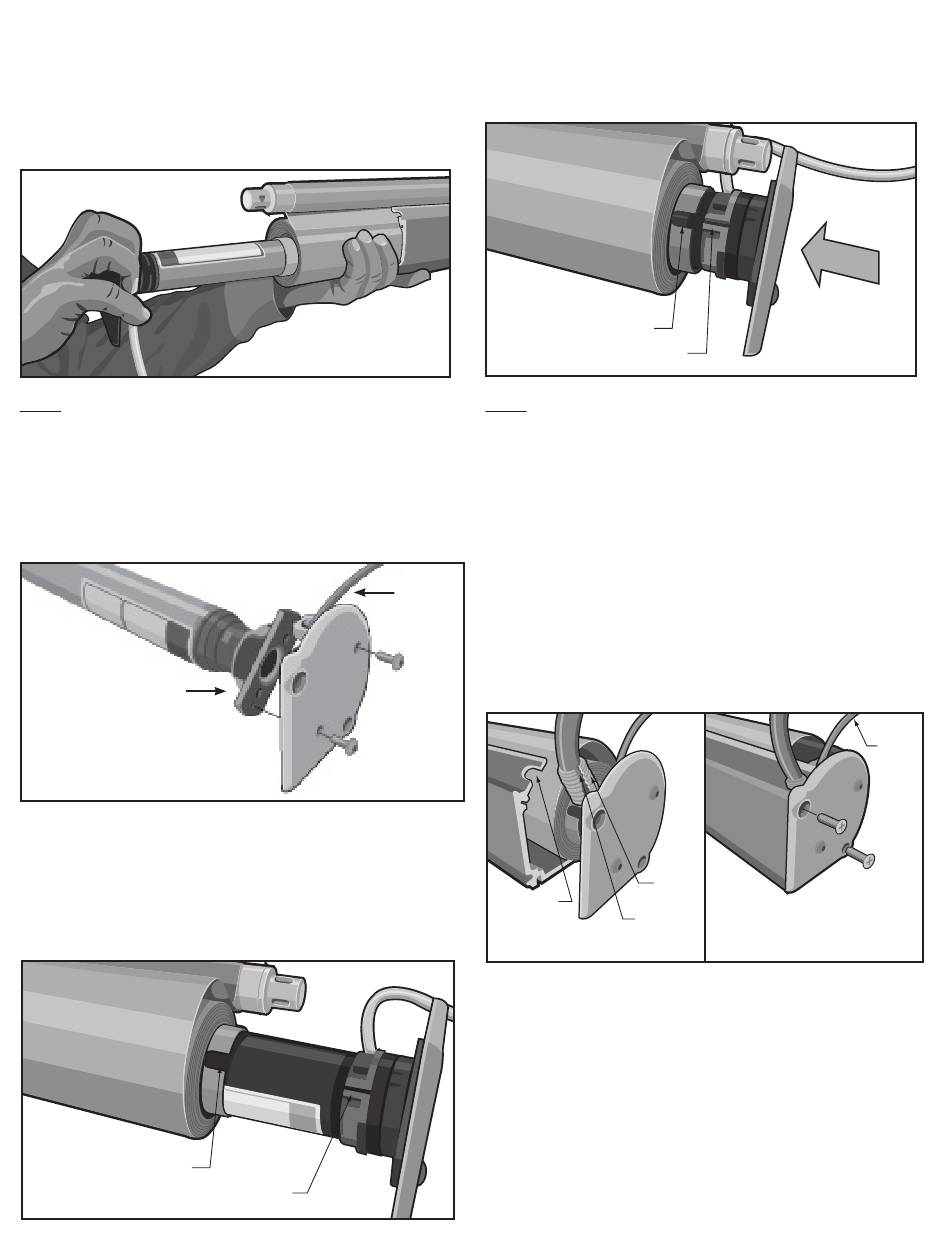

Figure 4
Note: Before preforming Step 9, take a moment
to observe the orientation of the motor on the
housing end plate.
9. Using a 3mm Allen wrench, remove the two screws
that secure the Housing end plate to the motor.
See Figure 5.
Cord not
shown here.
Figure 5
10. Install the end plate removed in Step 9 on the
replacement motor.
11. Slide the motor into the end of the roller bar, with
the motor aligned with the notch cut in the end of the
roller bar. See Figure 6.
Notch
Figure 6
Vinyl
Coated
Cable
Locking
Tabs
12. Rotate the motor to align the motor locking collar
with the notch on the roller bar (see Figure 7) and
while holding the roller bar push the motor into the
roller bar until it is fully seated in the notch.
Notch
Locking Tabs
Figure 7
Note: The motor cord has a small white plastic cord
protector just below the motor head.
See Figure 8.
13. Align the cord protector so that the open side
will be facing the end of the housing and push the
cord and the cord protector into the notch on the
end of the housing.
See Figure 8.
14. On the motor end, make sure that the vinyl coated
cable is positioned in the fabric slot. (See Figure 8a)
Align the end plate with the housing and install the
two Phillips head screws to secure it in place.
Protector
Cord
Open
Protector
End
Notch
Figure 8
15. Locate the end plate and the nylon roller bar
insert for the other end of the easyshade.
2
Cord
Figure 8a
Vinyl
Coated
Cable
