Bell System Practices Plant Series Adjustments page 89

3.12 Page Feed-Out Mechanism (Cont.)

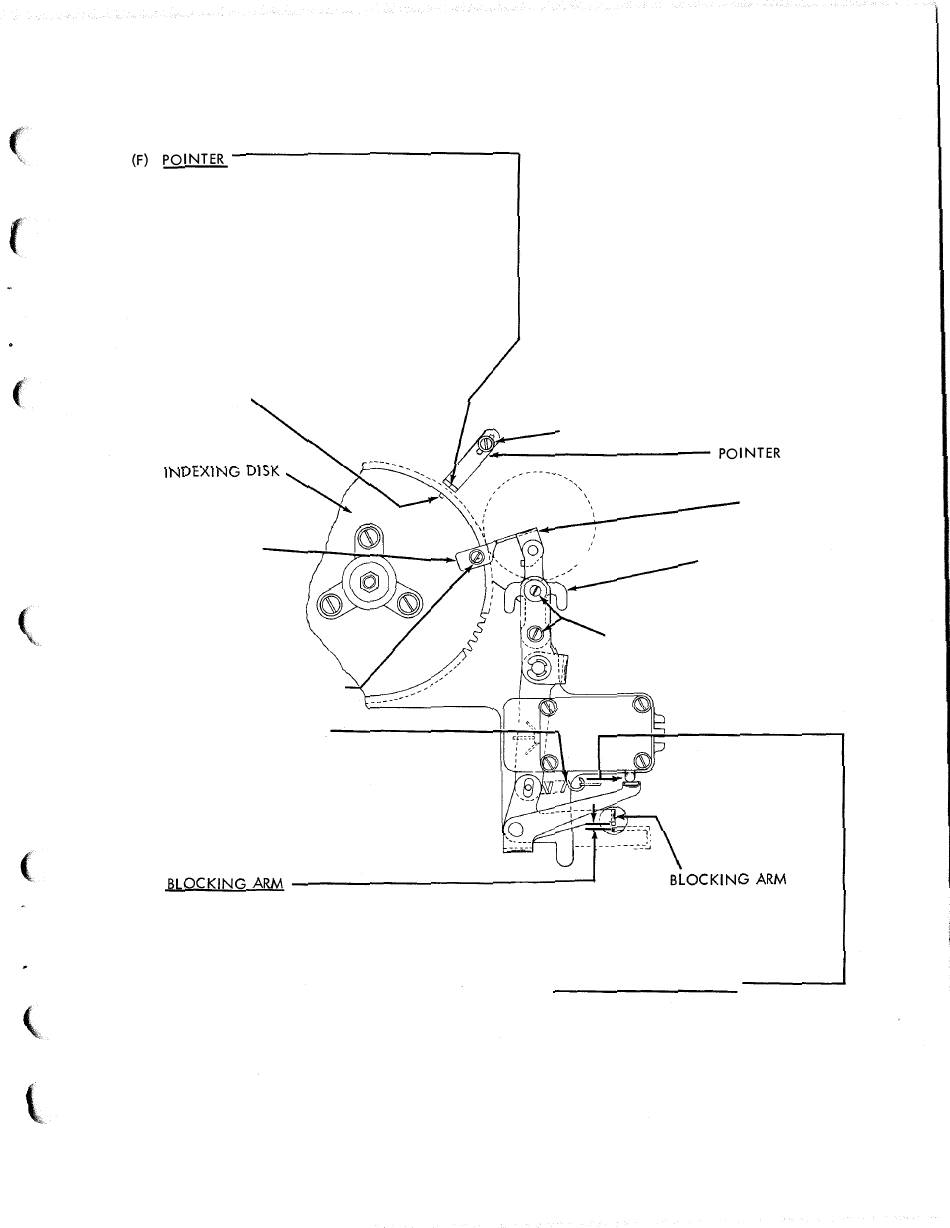

REQUIREMENT
LINE FEED CLUTCH DISENGAGED.
INDEX PLATE ADJACENT TO BAIL
AS SHOWN IN PAR.
SHOULD LINE UP WITH NOTCH IN
INDEXING DISK AND CLEAR DISK BY
APPROXIMATELY
TO ADJUST
POSITION POINTER WITH MOUNTING
SCREWS LOOSENED.
NOTCH
INDEX PLATE
MOUNTING SCREW
BLOCKING ARM SPRING
(C) BLOCKING ARM
REQUIREMENT
BAIL ON PEAK OF INDEX
PLATE. CLEARANCE
MIN. 0.005
MAX. 0.045
TO ADJUST
POSITION ADJUSTABLE ARM
WITH MOUNTING SCREWS
LOOSENED.
NOTE
IF REQUIREMENT CANNOT
BE MET FOR EACH PLATE,
REPOSITION PLATE WITH
MOUNTING SCREW LOOSENED.
3. 1 1. POINTER
1/16 INCH.
INCH
INCH
ISS 7, SECTION 573-115- 700
MOUNTING SCREW
'
/
ADJUSTABLE ARM MOUNTING SCREWS
I
\
-
-- ------
PAGE FEED OUT SLIDE
(H) BLOCKING ARM SPRING
REQUIREMENT
BLOCKING ARM IN UNBLOCKED
P . O SITION.
MIN. 3 OZS.
MAX. 5 OZS.
TO PULL SPRING TO OPERATING
LENGTH.
BAIL
ADJUSTABLE ARM
Page 89
