Bell System Practices Plant Series Adjustments page 25

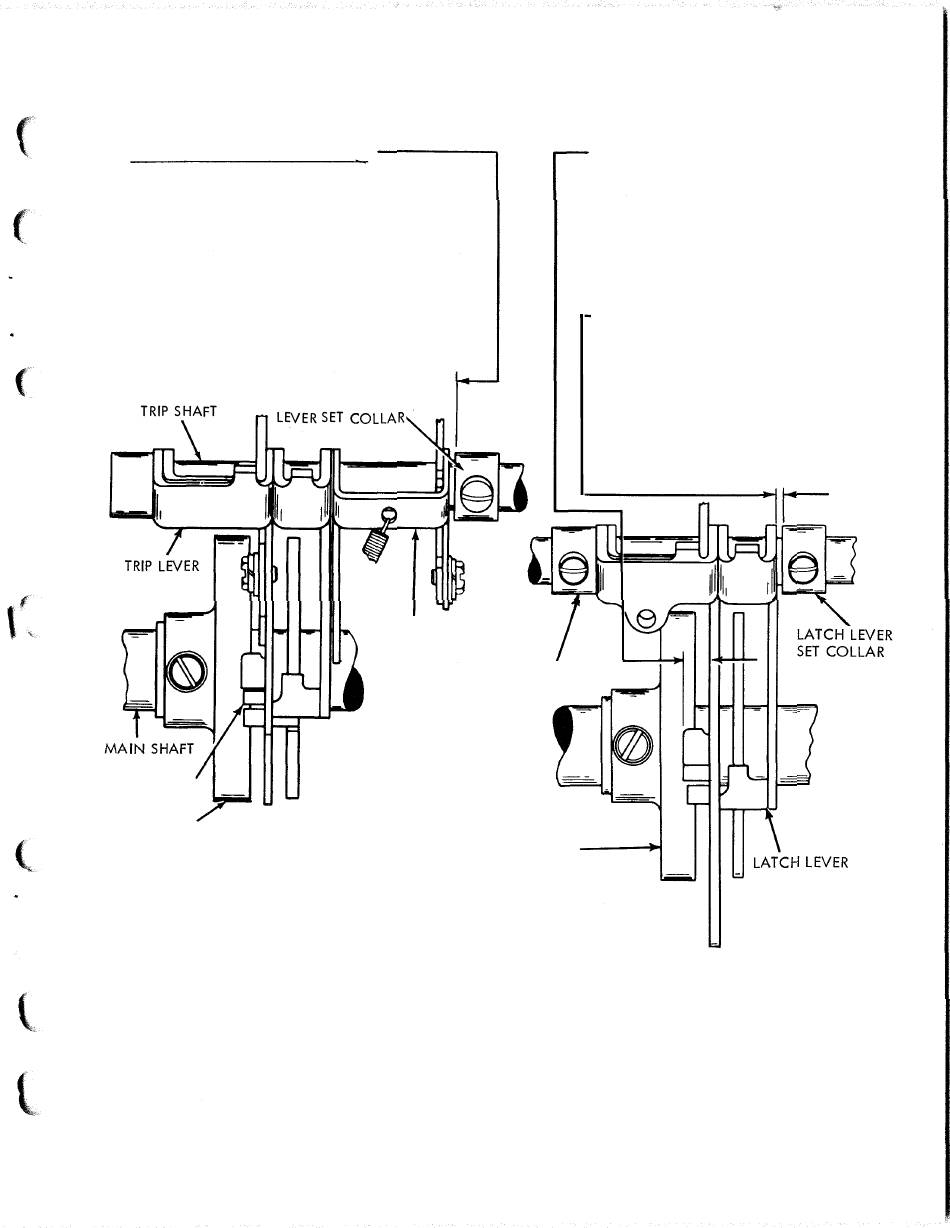

2. 19 Main Shaft and Trip Shaft Mechanisms (Cont.)
(A) CLUTCH TRIP SHAFT SET COLLARS
(1) REQUIREMENT
SPACING CUT-OUT LEVER SHOULD
HAVE SIDE PLAY
MIN.
MAX.
TO ADJUST
POSITION SPACING CUT-OUT LEVER
SET COLLAR
NOTE� FOR EARLIER DESIGN
SHOE LEVER
SPACING CLUTCH
•
SOME
INCH
0.008
SEE PAR.
4.05.
SPACING CUT-OUT
SPACING CUT­
OUT LEVER
(REAR VIEW)
TO ADJUST
J
TO ADJUST
LINE FEED CLUTCH
TRIP LEVER SET COLLAR
LINE FEED CLUTCH
ISS 7, SECTION 573-115-700
(2) REQUIREMENT
APPROXIMATE ALIGNMENT O F
RIGHT END O F STOP E XTENSIONS
ON TRIP LEVER AND SHOE LEVER.
POSITION LINE FEED CLUTCH
TRIP LEVER SET COLLAR.
(3) REQUIREMENT
LINE FEED CLUTCH LATCH LEVER
SHOULD HAVE SIDE PLAY.
MIN.
SOME
MAX. INCH
0.008
POSITION LINE FEED CLUTCH
LATCH LEVER SET COLLAR.
Page 25
