Bell System Practices Plant Series Adjustments page 15

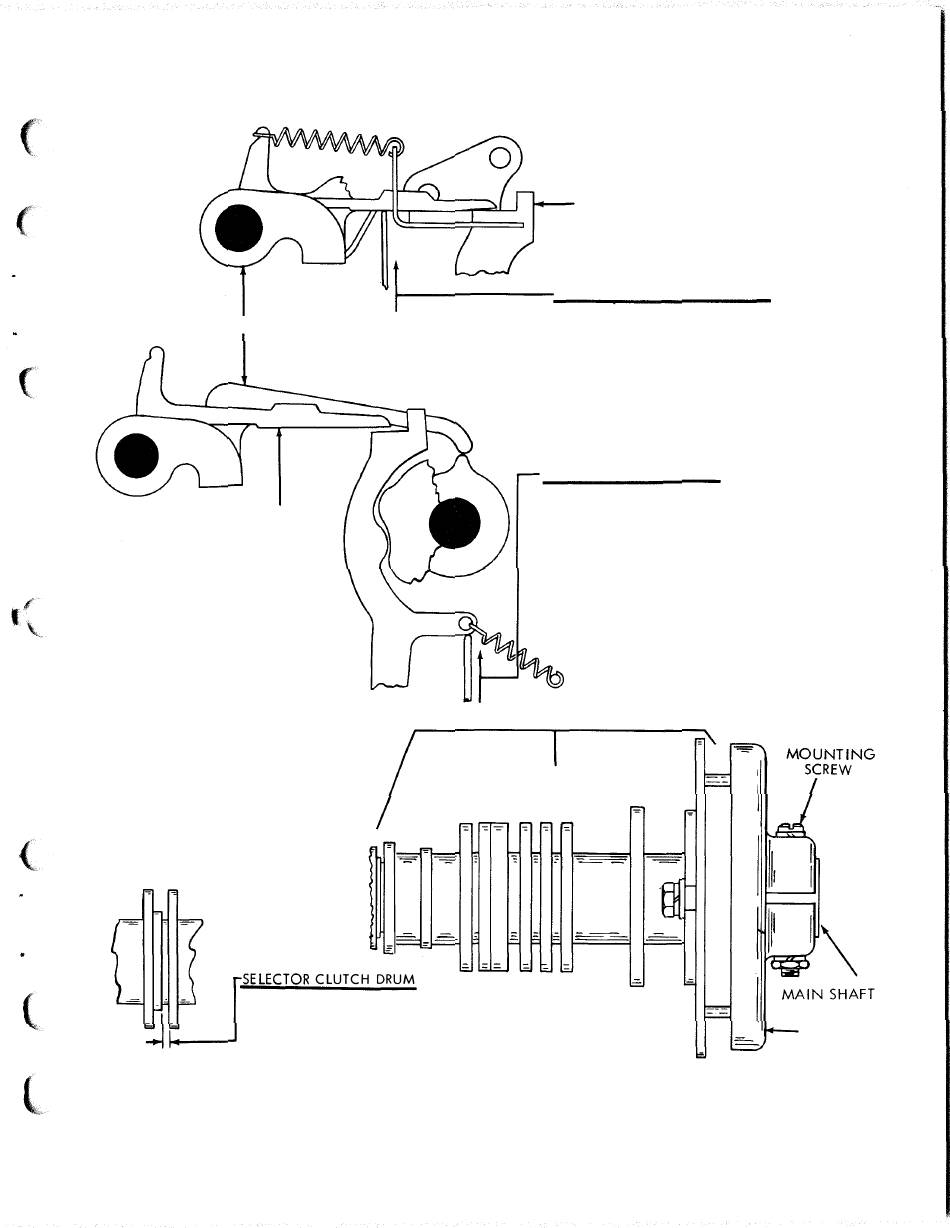

2. 08 Selector Mechanism (Cont.)
RESET BAIL
PUSH LEVER
FRONT VIEW
REQUIREMENT
CLUTCH LATCHED IN STOP POSITION.
CLUTCH ASSEMBLY SHOULD HAVE SOM E END PLAY
MAX. 0.010
TO ADJUST
POSITION CLUTCH DRUM WITH MOUNTING
SCREW LOOSENED.
CAM-CLUTCH ASSEMBLY
INCH
ISS 7, SECTION 573-115-700
SELECTOR LEVER
SELECTOR P USH LEVER SPRING
REQUIREMENT
PUSH LEVER IN SPACING POSITION
3/4
MIN. OZ.
MAX. 1-1/2
OZS.
TO MOVE PUSH LEVER FROM SELECTOR
LEVER. CHECK FIVE SPRINGS.
SELECTOR LEVER SPRING
REQUIREMENT
PLACE UNIT U PSID E D OWN.
RESET BAIL ON PEAK OF ITS CAM.
1-1/4
MIN. OZS.
MAX. 2-1/2
OZS.
TO START EACH LEVER MOVING.
CHECK FIVE SPRINGS.
UNHOOK START LEVER SPRING TO CHECK
4
NO. SELECTOR LEVER SPRING.
CAM-
IF NECESSARY,
CLUTCH
DRUM
