Mounting of cables

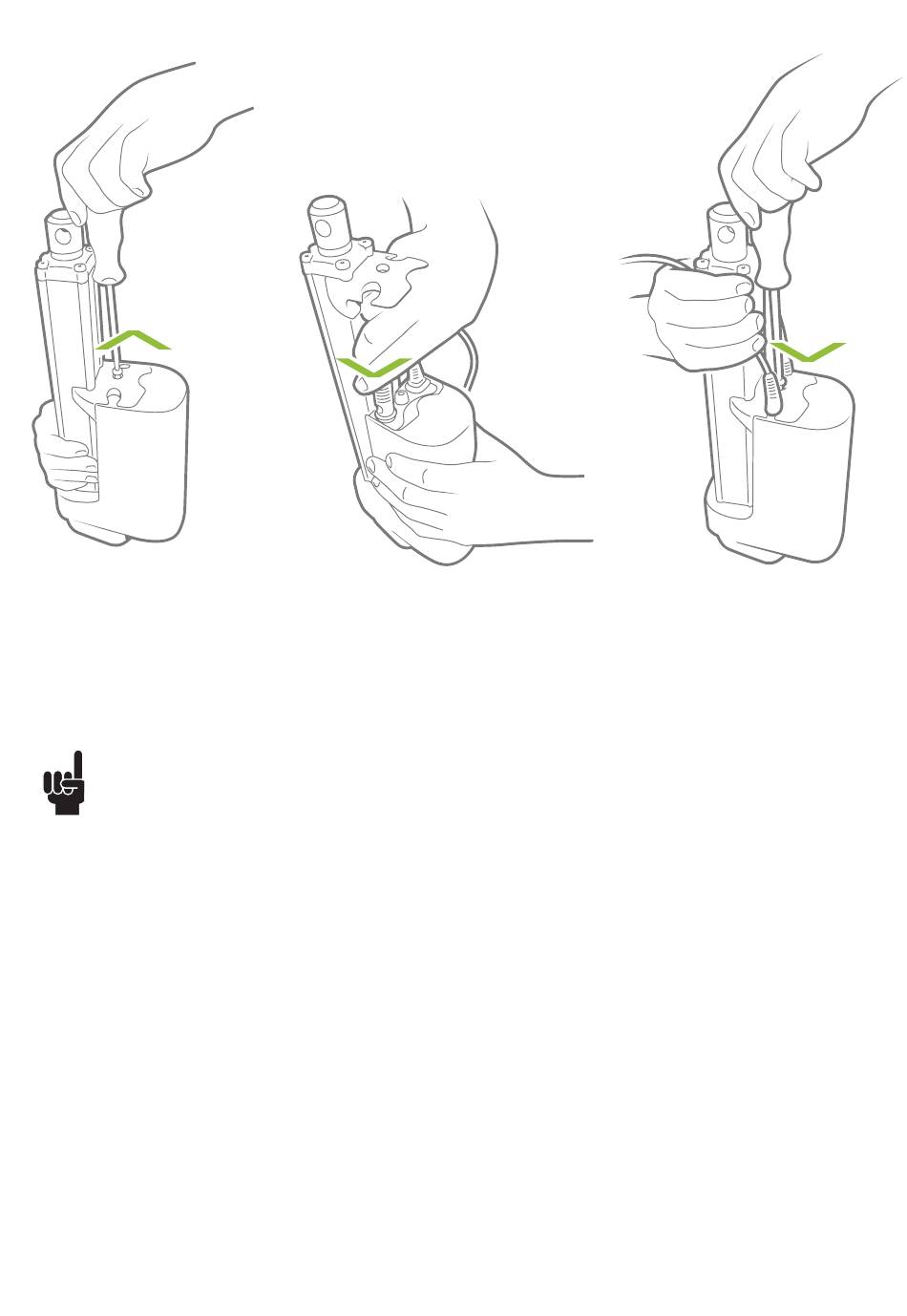

1. Unscrew the cover and

remove the two blind

plugs.

When changing the cables on a LINAK actuator, it is important that this is done carefully, in order to protect the plugs and pins. Before the new

cable is mounted, we recommend that the socket is greased with vaseline, to keep the high IP protection and ensure an easy mounting. Please

be sure that the plug is in the right location and fully pressed in before the cable lid is mounted.

Please note that if the cables are mounted and dismounted more than 3 times the plugs can be damaged. Therefore, we recommend that such

cables are discarded and replaced.

Also note that the cables should not be used for carrying the actuator.

We recommend to take some precaution and design the wire connection in a way, where the cable end is kept inside a closed, protected area

to guarantee the high IP protection.

NOT VALID FOR ATEX CABLES, PLEASE REFERE TO CHAPTER 6

2. Plug in the power

cable and/or the

signal cable.

Page 10 of 92

3. Slide the cover onto

the actuator.

The torque of the

cover screw is

approx. 3.5 ± 0.3 Nm

TORX 25IP
