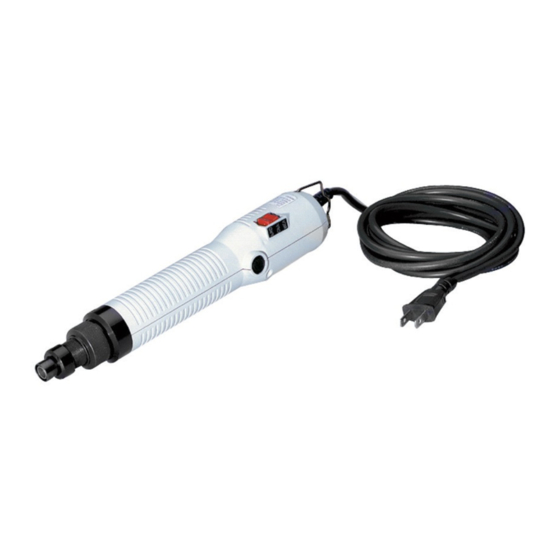

- Page 1 45527801 Edition 1 May 2007 Electric Screwdrivers ES45T, ES50T and ES50TC Maintenance Information Save These Instructions...
- Page 2 ES50T-462 2.0 to 9.0 in-lb (0.23 to 1.02 N m) Disassembly For Models ES45T and ES5OT, unscrew and remove the 7. Brake Switch (15) replacement Coupling (55). This is a left-hand thread; turn clockwise to remove. Remove the two Screws (16) holding the Brake Switch.
- Page 3 Housing. seal around the edge of the Plate and also at the opening in the 14. For Models ES45T and ES5OT, place the right side of the Plate for the motor leads. Housing against the left side and install the three Housing 11.
- Page 4 Trouble Probable Cause Solution Are wire leads in good condition Screwdriver runs in Defective solder connections. Resolder and rewire if necessary. and properly soldered? one direction but not the other Does Reverse Switch operate properly? Defective Reverse Switch (9). Replace it. Armature (31) is in contact with the magnets.
- Page 5 Notes:...
- Page 6 Notes:...
- Page 7 Notes:...
- Page 8 www.irtools.com © 2007 Ingersoll Rand Company...
