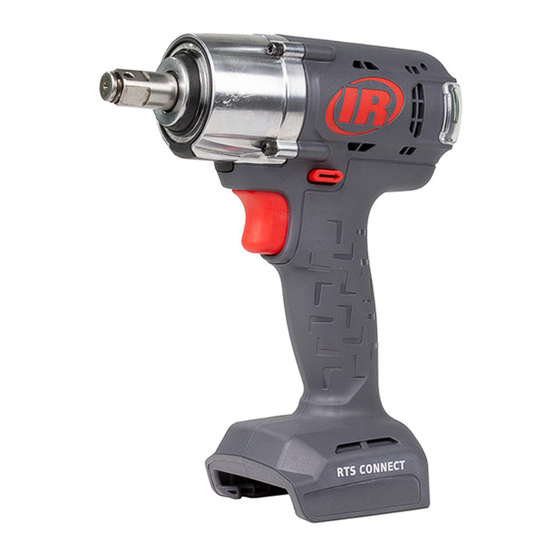

- Page 1 TL-RTS-UIM Edition 1 July 2024 RTS Connect Series User Manual Save These Instructions...
-
Page 2: Intended Use
Intended Use: This manual provides instructions for programming the parameters of the RTS Connect Series Mechanical Pulse Tools. Programming Methods • Program via Tool User Interface and Display. • Program via Bluetooth with Android or iOS INSIGHT Connect mobile application. - Page 3 1. Symbol Identi cation PSet Symbol Identi cation Symbol Function Symbol Function Tightening Direction Flush Level Batch Count Full Power Mode Torque Level Wireless Symbol Identi cation Symbol Function Symbol Function Bluetooth Connected Radio Paired, Disconnected Bluetooth Paired, Disconnected Wi-Fi Connected Bluetooth Searching Wi-Fi Paired, Disconnected Radio Connected...
-
Page 4: Default Setting
Status Bar Symbol Identi cation Symbol Function Symbol Function Maintenance OFF Battery OK Maintenance OK Battery Low Maintenance Warning Battery Critically Low Maintenance Alert MES Disabled Tool Unlocked MES Connected Tool Locked MES Enabled, Disconnected 2. Color LCD Display The color LCD display on the tool allows for quick setup and tool feedback. A full list of display icons can be seen in the “Symbol Identi cation”... - Page 5 3.3 Next Pset Button 1. Use the button to cycle through the eight Psets stored on any RTS Connect series tool. 3.3.1 Edit Pset 1. Select the button. Enter the default password '0000' if prompted.
- Page 6 4. INSIGHT Connect Bluetooth Pairing Note: Record the serial number of the tool to be paired before beginning the pairing process. 1. Select the button for wireless pairing from the home screen on the tool. Enter the default password '0000' if prompted. 2.
-
Page 7: Setting Options
6. Pairing with INSIGHTqcx Controller 1. Select the button for wireless pairing from the home screen on the tool. Enter the default password '0000' if prompted. 2. Select the button to highlight the Radio icon ( ) and press to accept. 3. - Page 8 Parameter Description Setting Options Adjustable with Tool, Application, and Batch Count Used to track the completion of a group of fasteners. 0-99 Controller The tool will delay ush detection at the beginning of a cycle for a speci ed period of time. If there are loads on a fastener before it is fully seated, the ush detection algorithm may enable prematurely.
-
Page 9: Utilities Page
8. Tool Clock The tool has a clock that will retain the date and time during battery swaps. For initial setup, connect to the INSIGHT Connect application or INSIGHTqcx Controller. The date/time will be set automatically on connection. 9. Maintenance Interval Alarm Up to three di erent Maintenance Interval Alarms can be set through the Utilities Page of the INSIGHT Connect application;... - Page 10 12. RTS Connect Setup Procedure 12.1 Introduction The RTS algorithm takes measurements during the tightening, and reacts to various inputs to ensure shut-o at a repeatable point. Each tool must be calibrated for the intended application. For the RTS algorithm to function as designed, Flush Detection must be set properly for each application. The various Flush detection levels (L1-L7) allow the tool to be tuned for various joint types, including hard and soft joints with or without prevailing torque.
-
Page 11: Parts And Maintenance
13. Tool Fault Codes/Troubleshooting Fault Code Category Notes Actions/Solutions A-F1 Invalid Firmware Image Size Con rm the rmware image is correct. A-F2 Invalid Firmware CRC Check the connection and retry. A-F3 Firmware Upgrade Invalid Image ID Con rm the rmware image is correct. A-F4 Timeout Power-cycle the tool and retry rmware update. - Page 12 ingersollrand.com © 2024 Ingersoll Rand...
