End Cover - mycom i125S Instruction Manual

k) When the seal tightening allowance is proper, push the
seal cover firmly into the bearing cover.
Since there is repulsion force of the seal bellows, keep
it pushed firmly and tighten the two hexagon socket
head cap screws (for tightening the seal cover) evenly at
positions 180 degrees apart.
When the gasket surface gets free of gap, tighten all of
the remaining screws.
m) When tightening of the seal cover is finished, supply oil
to the seal cover while rotating the shaft.
n) After supplying oil, be sure to install the plug.

5.6.10 End Cover

a) Screw two stud bolts (i125:M12/i160:M16) symmetrically, and then place end cover gasket 【23】.
b) Install end cover 【22】. In case of i160, attach lifting tools to the end cover, which weighs 47 kg.
Screw Compressor i-series

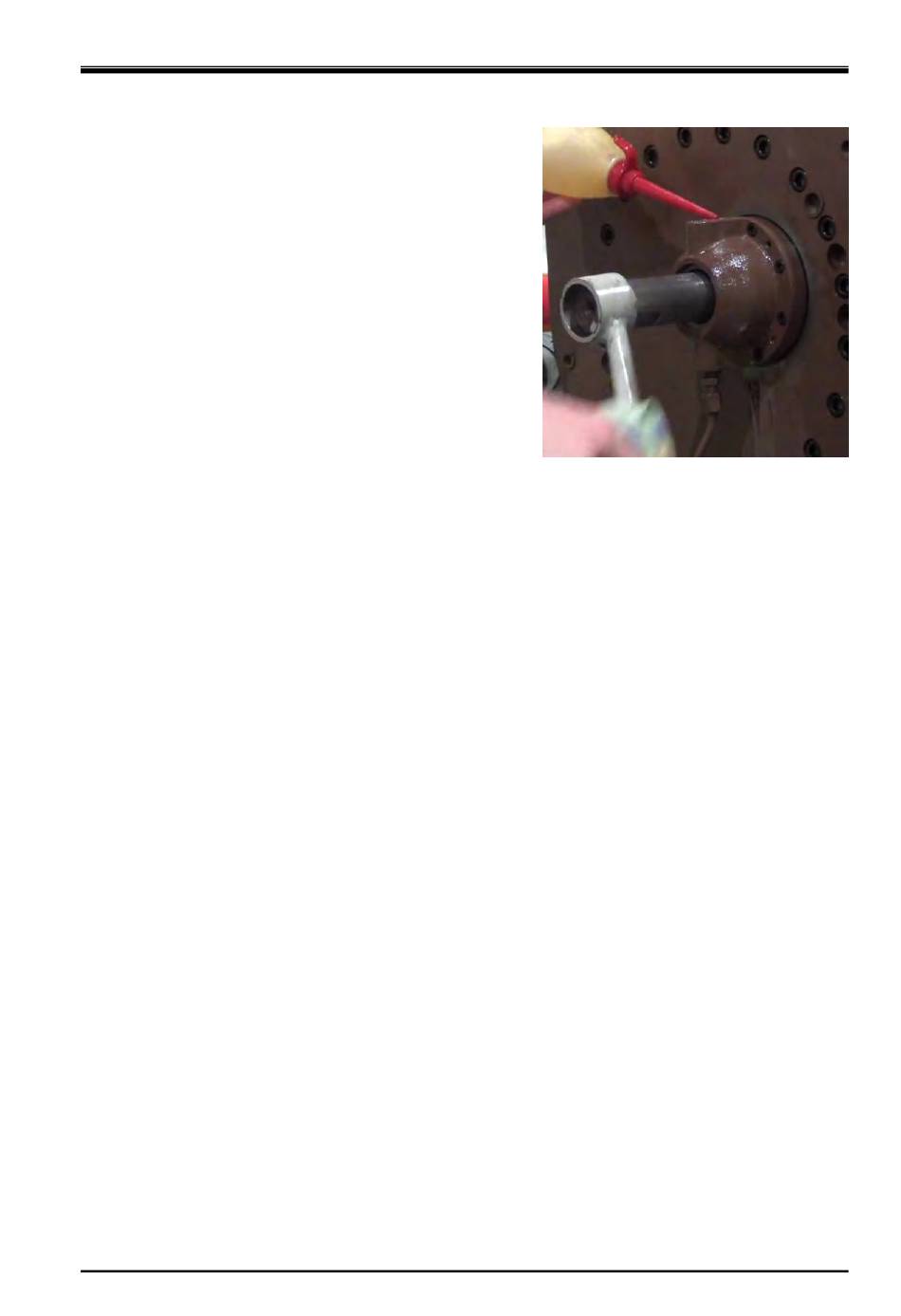

Photo 041 Supplying Oil
