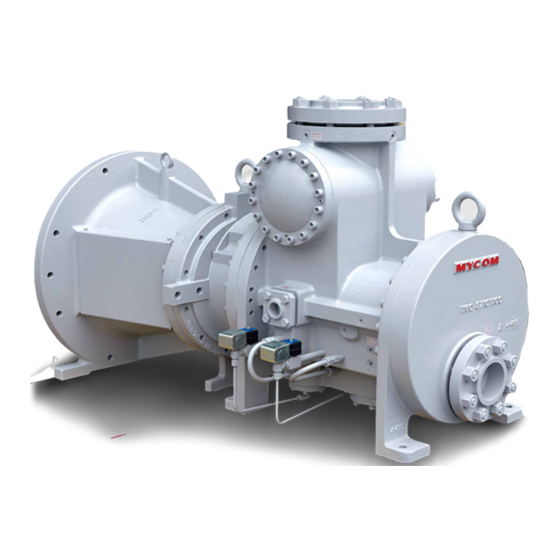

i-Series Screw Compressor
Instruction Manual
This manual is applied to each compressor after the serial number
shown below.
i125S: 8750303
i160S: 8710055
Before operating, servicing, or inspecting this product, read this manual thoroughly to fully
understand the contents.
Keep this instruction manual in a safe, designated place for future reference whenever the
manual is needed.
Specifications of this product is subject to change without prior notice.
i160S / i160M / i160L
:
i125L
8770301
i160M: 8720018
CAUTION
2200M4JE-HO-iS2-N_2014.04.
i125S / i125L
i160L: 8730030
