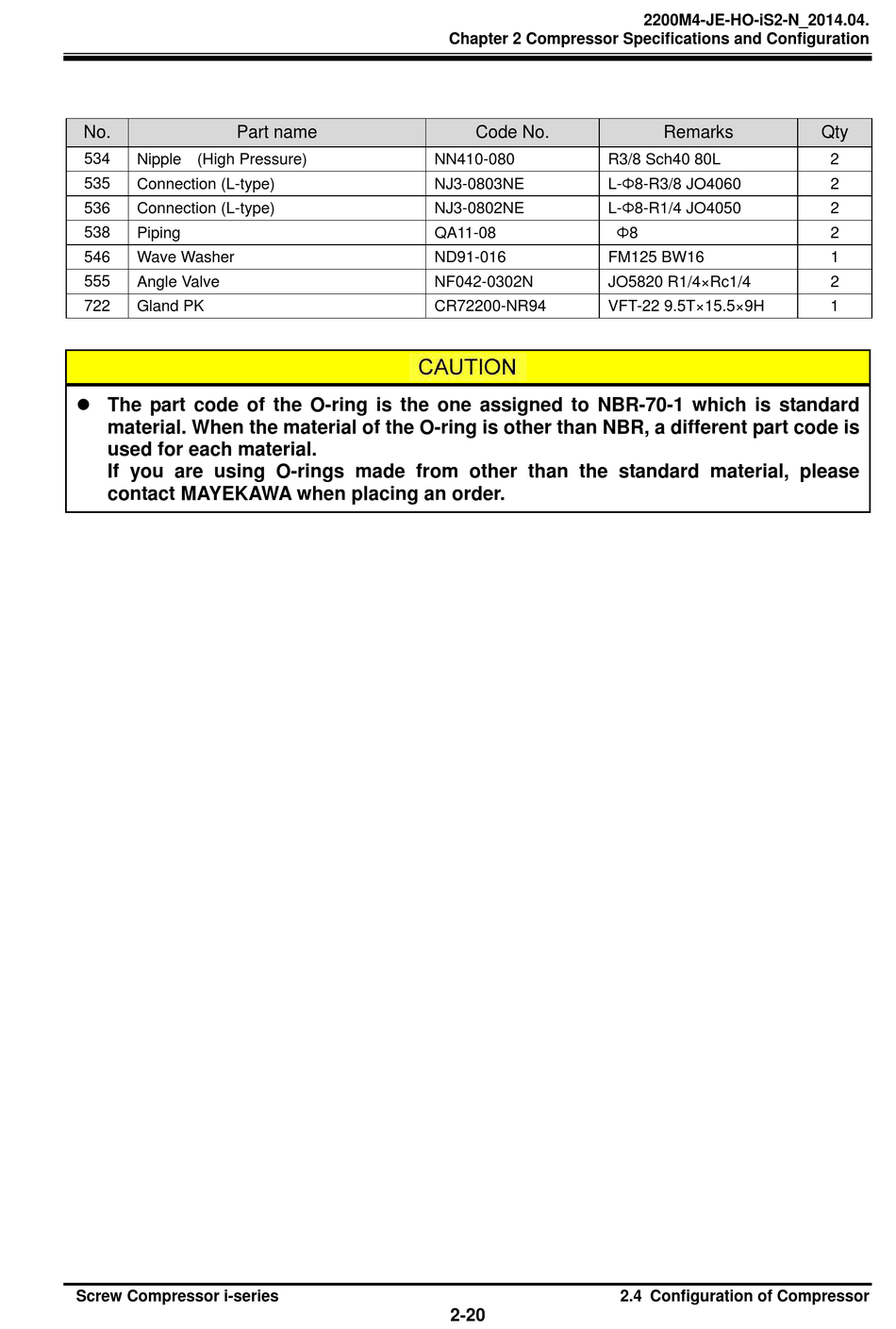

mycom i125S Instruction Manual page 37

No. Part name
534 Nipple (High Pressure)
535 Connection (L-type)
536 Connection (L-type)
538 Piping
546 Wave Washer
555 Angle Valve
722 Gland PK
 The part code of the O-ring is the one assigned to NBR-70-1 which is standard
material. When the material of the O-ring is other than NBR, a different part code is
used for each material.
If you are using O-rings made from other than the standard material, please
contact MAYEKAWA when placing an order.
Screw Compressor i-series
Chapter 2 Compressor Specifications and Configuration
Code No.
NN410-080
NJ3-0803NE
NJ3-0802NE
QA11-08
ND91-016
NF042-0302N
CR72200-NR94
2-20
2200M4-JE-HO-iS2-N_2014.04.
Remarks
R3/8 Sch40 80L
L-Φ8-R3/8 JO4060
L-Φ8-R1/4 JO4050
Φ8
FM125 BW16
JO5820 R1/4×Rc1/4
VFT-22 9.5T×15.5×9H
2.4 Configuration of Compressor
Qty
2
2
2
2
1
2
1
