Bearing Cover; Disassembly; Inspection - mycom i125S Instruction Manual

Photo 005

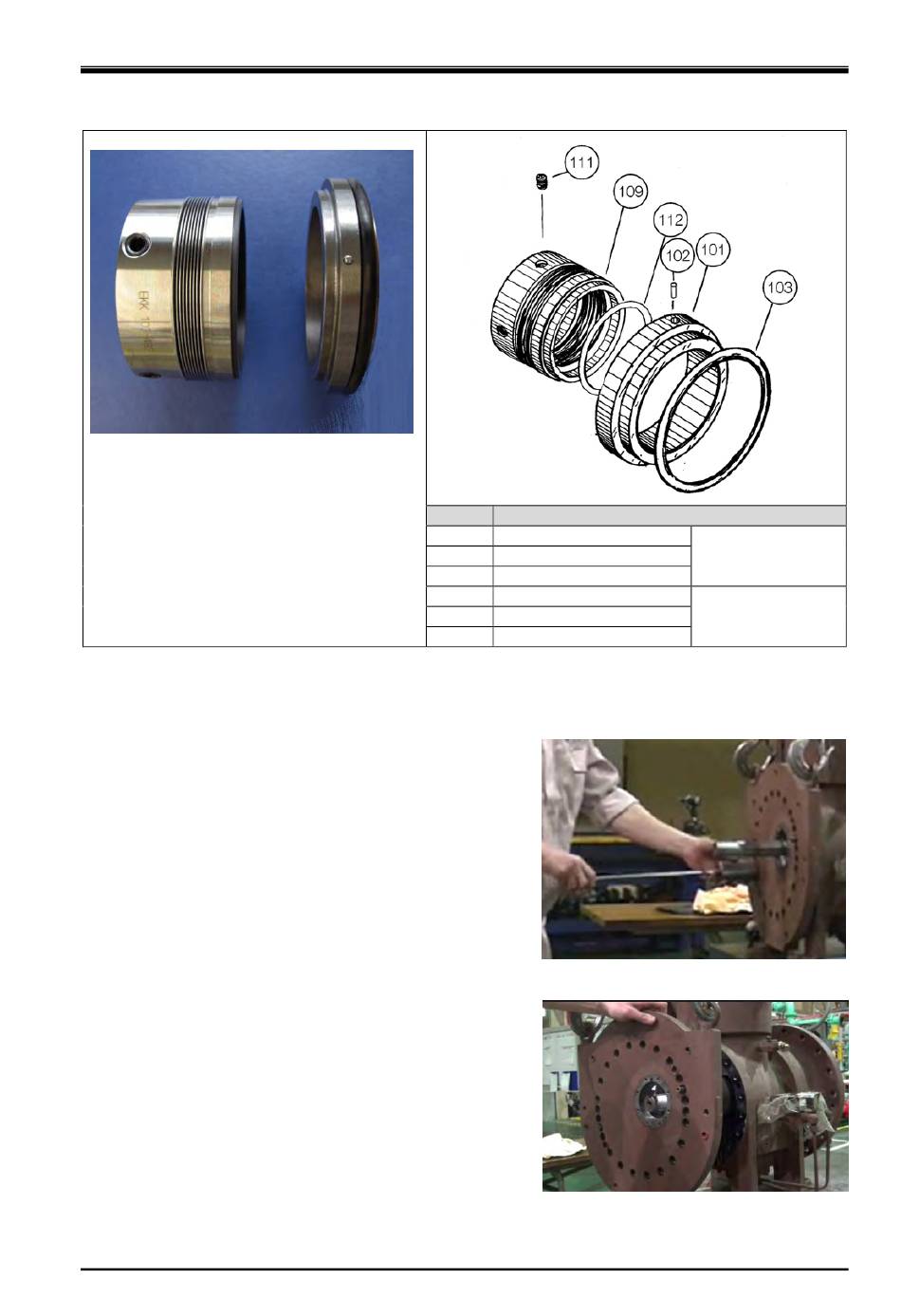

Figure 5-1 Details of BBSE Mechanical Seal Assembly
5.5.2

Bearing Cover

5.5.2.1 Disassembly

a) Remove two threaded alignment pins 【3】 by using a
tool (slide hammer). (Photo 006)
b) Attach lifting tools, and remove all of the hexagon
socket head cap screws. If the bearing cover gasket
【17】 is stuck, use a jack bolt to remove.
At this moment, lubricant remaining inside the bearing
cover will flow out. Prepare a container to catch oil.
c) Remove the bearing cover 【16】. Exercise care not to let
it hit against the shaft and cause damage.

5.5.2.2 Inspection

a) If the alignment pin is bent or worn, replace it with a new
one.
b) The bearing cover gasket must be replaced with a new
one.
