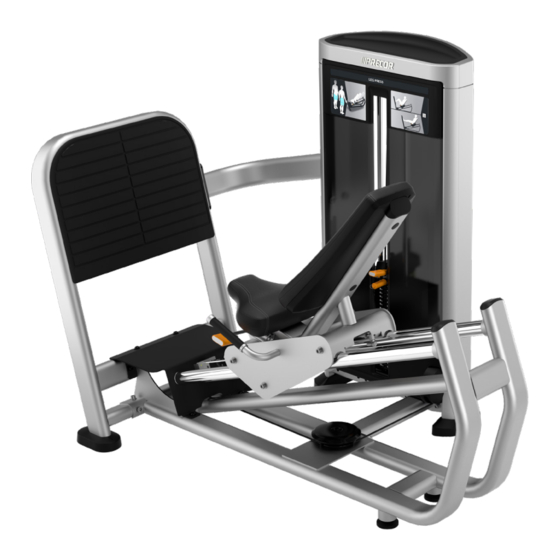

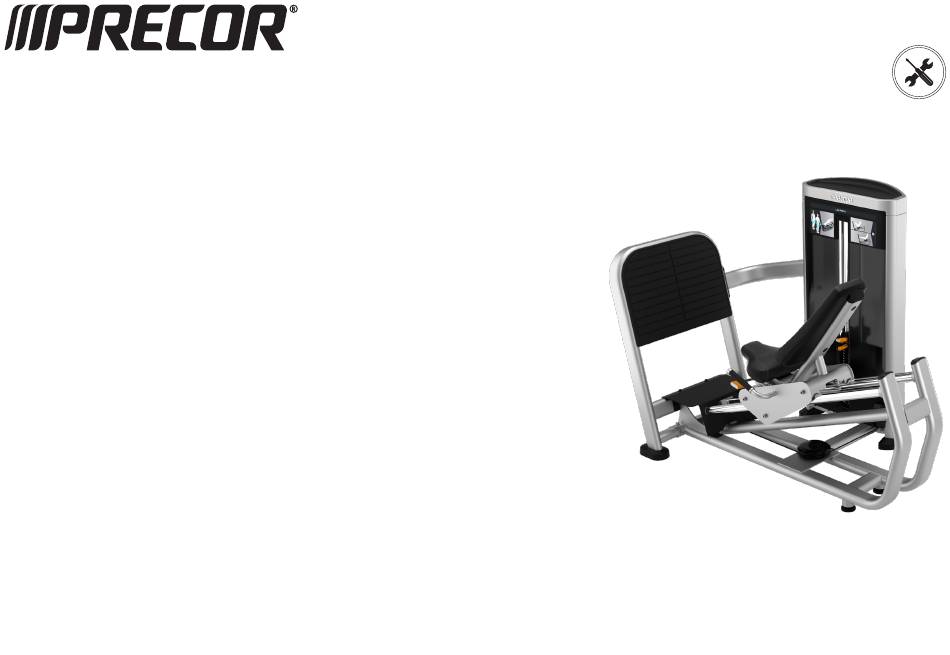

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Leg Press RSL 602 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Nylon lock nuts, M10 Shroud, rear lower Nylon lock nuts, M12 Shroud, front middle (left and right) Shroud, front lower Shroud, lower pulley cover Back pad Seat pad Washers, domed, silver ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... -
Page 4: Frame Assembly
Then connect the main frame to the front washers, 13 mm frame . Insert horizontal fasteners first from main frame to Tool: Hex wrench, 10 mm front frame and fully tighten. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... - Page 5 55 ft-lb (75 N-m). Socket wrench, 19 mm Torque wrench Do not tighten the M10 screws installed in step 1 at this time. They will be removed temporarily in a later step. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
-
Page 6: Seat Assembly
To route the cable to the upper pulleys of weight stack tower, remove the cable retainers, route the cables, and replace the retainers. Tighten to 50 Open-end wrench, 19 mm ft-lb (67 N-m) of torque. Torque wrench ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide... - Page 7 Place the top 20 lb (9 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
- Page 8 Replace the cap to the top of the rod and secure top of rod to weight stack tower frame. washers, 11 mm M10 nylon lock nut Tools: Hex wrench, 8 mm Socket wrench, 17 mm ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
- Page 9 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Superior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
- Page 10 M10 x 40 mm SHCS Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Leg Press RSL 602 | Assembly Guide...
-
Page 11: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points. - Page 12 RSL Leg Press 602 | Assembly Guide | P/N CW39551-101 ENG © Precor, Incorporated | 30 August 2019...
