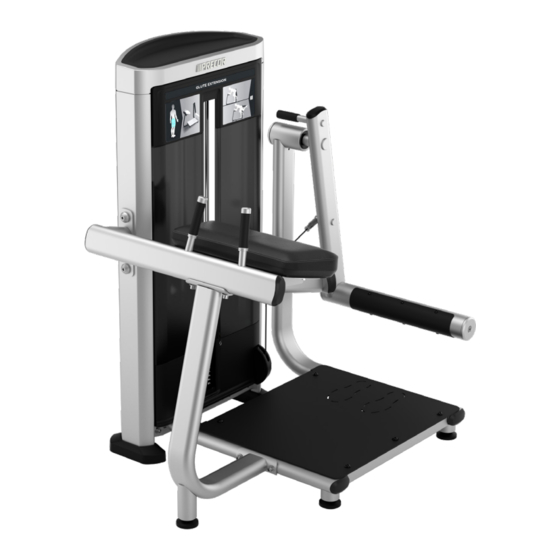

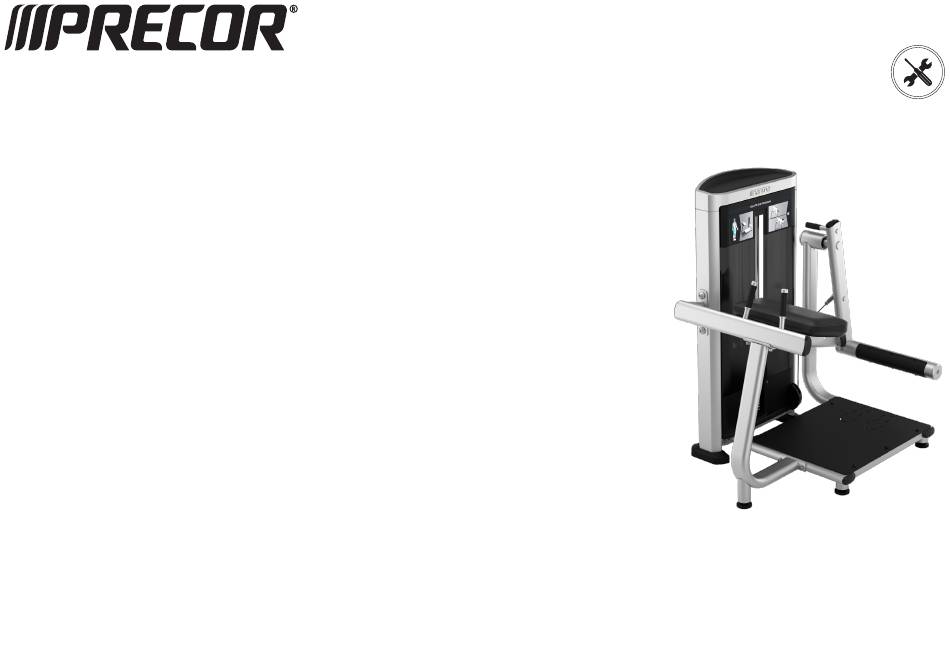

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Glute Extension RSL 618 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Shroud, front middle (left and right) Washers, 9 mm Shroud, crown Washers, 13 mm Top tray Washers, 11 mm, black (for foot plate) Shroud, rear lower Shroud, lower pulley cover ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide... -
Page 4: Frame Assembly
Hand tighten only. These will be removed temporarily in a later washers, 11 mm step. M12 x 35 mm SHCS Connect pivot frame to weight stack tower washers, domed Tool: Hex wrench, 10 mm ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide... - Page 5 Tool: Hex wrench, 10 mm M12 x 35 mm SHCS Connect handle assembly to front frame washers, 13 mm Tool: Hex wrench, 10 mm ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide...
-
Page 6: Moving Parts
Slide wave washer onto shaft on pivot arm end cap Slide shaft of pivot arm into pivot frame and secure. M12 x 35 mm FHCS Tool: Hex wrench, 8 mm ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide... -
Page 7: Route The Cable
To route the cable to the upper pulleys of weight stack tower, remove the cable retainers, route the cables, and replace the Open-end wrench, 19 mm retainers. Tighten to 50 ft-lb (67 N-m) of torque. Torque wrench ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide... - Page 8 Place the top 10 lb (4.5 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide...
- Page 9 Replace the cap to the top of the rod and secure top of rod to weight stack tower frame. washers, 11 mm M10 nylon lock nut Tools: Hex wrench, 8 mm Socket wrench, 17 mm ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide...
- Page 10 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Superior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide...
- Page 11 Recommended bolt torque M10 x 40 mm SHCS Place shroud crown is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Glute Extension RSL 618 | Assembly Guide...
-
Page 12: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points.
