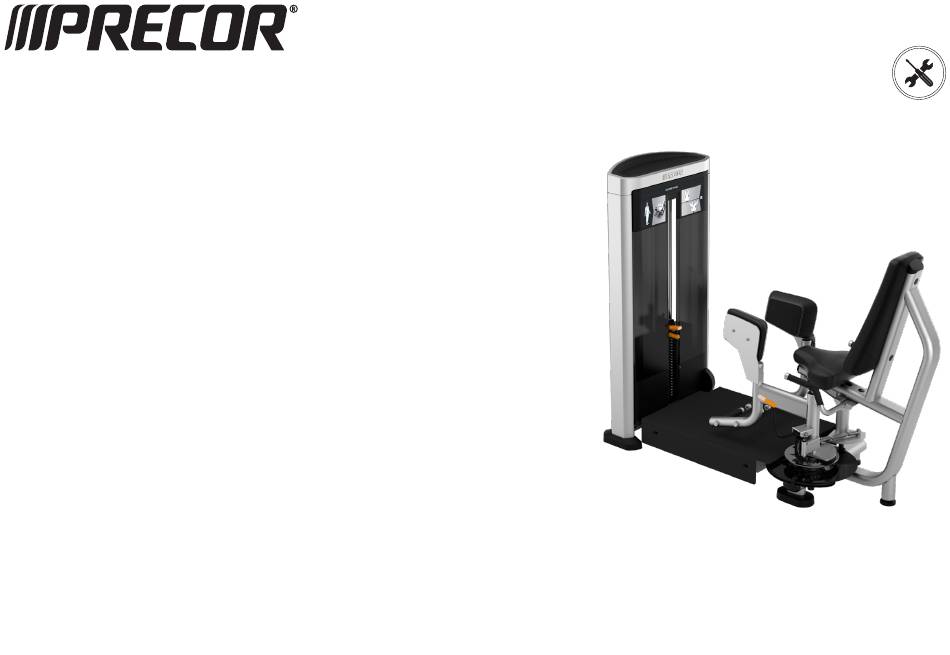

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Outer Thigh RSL 621 Assembly Guide...
-
Page 3: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 4: Parts List
Washer, silver, 13.5 mm ID x 35 mm OD Top tray Nylon lock nuts, M8 Shroud, lower pulley cover Hex head screws (SHCS) M12 x 35 mm Weight plates 10 lb (4.5 kg) ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide... -
Page 5: Frame Assembly
. Do not fully tighten. This will be done in a later step. washers, 9 mm Tool: Socket wrench, 13 mm with extension CAUTION! Do not drop hardware down frame tube. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide... - Page 6 (75 N-m), except those in step 4 above. Socket wrench, 19 mm Torque wrench Do not tighten the M10 screws installed in step 1 at this time. They will be removed temporarily in a later step. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide...
-
Page 7: Moving Parts
Secure the legs with the collars under the seat. M6 x 20 mm SHCS Do not fully tighten the collars yet. Tool: Hex wrench, 5 mm with extension Remove all labels. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide... - Page 8 Tool: Hex wrench, 8 mm shown. Tool: Open end wrench, 19 mm If feet are not centered, adjust link rod as needed to center foot bars and then tighten. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide...
-
Page 9: Seat Assembly
. Align top of pad with the end cap in seat washers, 9 mm frame. hole plugs CAUTION! Do not drop hardware down frame tube. Tool: Socket wrench, ½-inch with extension ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide... -
Page 10: Route The Cable
. Tighten to 42 ft-lb (57 N-m) of M10 x 25 mm SHCS Mount foot plate to lower cross brace torque. washers, 11 mm, black Tools: Hex wrench, 8 mm Torque wrench ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide... - Page 11 Place the top 10 lb (4.5 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide...
- Page 12 Replace the cap to the top of the rod and secure top of rod to weight stack tower frame. washers, 11 mm M10 nylon lock nut Tools: Hex wrench, 8 mm Socket wrench, 17 mm ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide...
- Page 13 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Superior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide...
- Page 14 M10 x 40 mm SHCS Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Outer Thigh RSL 621 | Assembly Guide...
-
Page 15: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points. - Page 16 RSL Outer Thigh 621 | Assembly Guide | P/N CW39575-101 rev B ENG © Precor, Incorporated | 11 November 2019...
