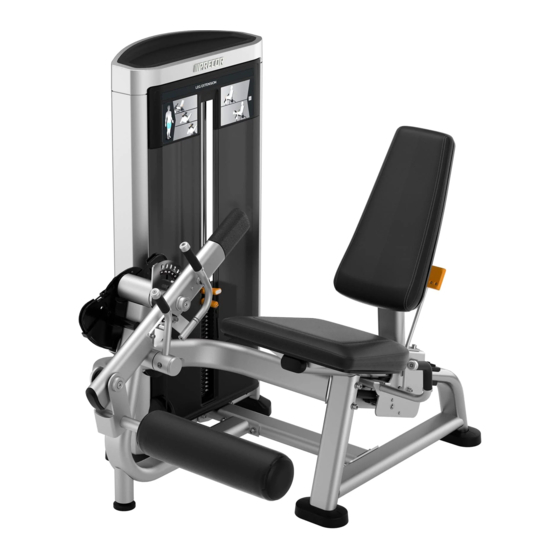

Precor Resolute RSL 605 Assembly Manual
Strength selectorized line leg extension
Hide thumbs
Also See for Resolute RSL 605:
- Maintenance manual (4 pages) ,
- Getting started manual (2 pages) ,
- Assembly manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Precor Resolute RSL 605
Summary of Contents for Precor Resolute RSL 605
- Page 1 ENGLISH Resolute™ Strength Selectorized Line Leg Extension RSL 605 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Shroud, rear middle Retaining ring, small Shroud, front middle (left/right) Retaining ring, large Shroud, top tray Seat pad Shroud, lower pulley cover Roller pad Cable retainer pin Back pad ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide... -
Page 4: Frame Assembly
Insert guide rod fasteners, one from each side, to align kick M10 x 125 mm BHCS plate. Hand tighten only. These will be removed temporari- washer, 11 mm ly in a later step. ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide... - Page 5 55 ft-lb (75 N-m). Socket wrench, 19 mm Do not tighten the M10 screws installed in step 2 at this Torque wrench time. They will be removed temporarily in a later step. ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
- Page 6 M8 x 15 mm SHCS Connect handlebars to underside of seat frame washers, 9 mm CAUTION! Do not drop hardware down tube. hole plugs Tool: Hex wrench, 6 mm ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
- Page 7 Prepare roller pad. Attach cap ring to roller pad retaining ring, large Slide roller pad onto shaft and secure. Snap on roller cap. roller pad cap Tool: Retaining ring pliers ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
-
Page 8: Route The Cable
To route the cable to the upper pulleys of weight stack tower, remove the cable retainers, route the cables, and replace the retainers. Tighten to 50 Open-end wrench, 19 mm ft-lb (67 N-m) of torque. Torque wrench ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide... - Page 9 Place the top 10 lb (4.5 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
- Page 10 Replace the cap to the top of the rod and secure top of rod to weight stack tower frame. washers, 11 mm M10 nylon lock nut Tools: Hex wrench, 8 mm Socket wrench, 17 mm ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
- Page 11 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Superior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
- Page 12 M10 x 40 mm SHCS Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Leg Extension RSL 605 | Assembly Guide...
-
Page 13: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points. - Page 14 RSL Leg Extension 605 | Assembly Guide | P/N CW39555-101 ENG © Precor, Incorporated | 30 August 2019...
