ENGLISH
Resolute™ Strength Selectorized Line
Prone Leg Curl RSL 606
Assembly Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Resolute RSL 606 and is the answer not in the manual?

Questions and answers

Related Manuals for Precor Resolute RSL 606

Summary of Contents for Precor Resolute RSL 606

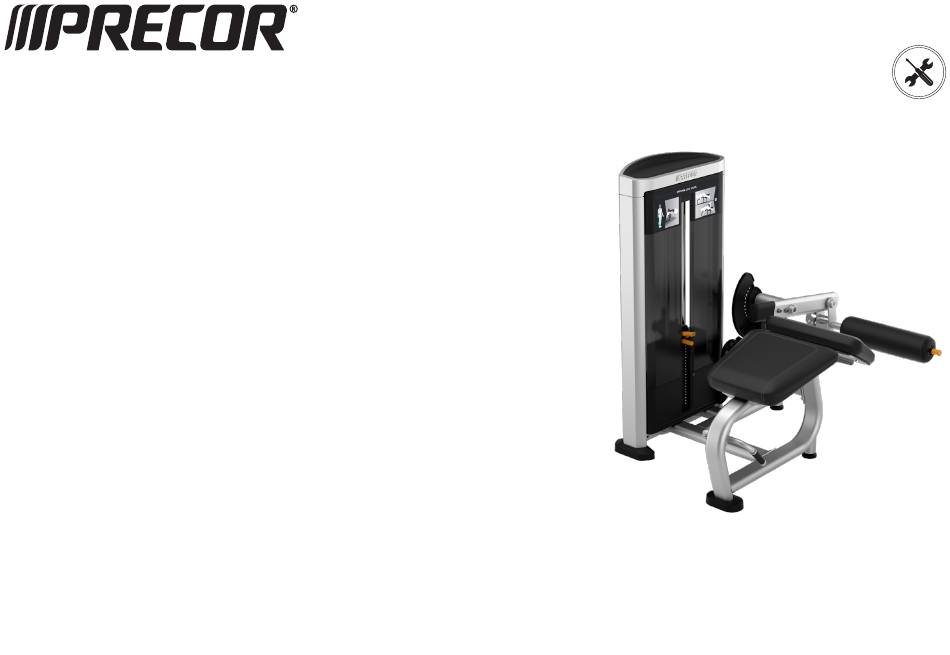

  • Page 1 ENGLISH Resolute™ Strength Selectorized Line Prone Leg Curl RSL 606 Assembly Guide...

  • Page 2: Assembly Requirements

    It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points.

  • Page 3: Parts List

    Washers, 9 mm Shroud, rear middle Hip pad Shroud, front middle (left and right) Chest pad Top tray Shroud, lower pulley cover Weight plates 10 lb (4.5 kg) ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...

  • Page 4: Frame Assembly

    Insert guide rod fasteners, one from each side, to align kick plate. M10 x 125 mm BHCS Hand tighten only. These will be removed temporarily in a later washer, 11 mm step. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...

  • Page 5: Moving Parts

    Align hole in end cap with pin on shaft and secure pivot arm. M12 x 35 mm FHCS Tool: Hex wrench, 8 mm ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...

  • Page 6: Seat Assembly

    9 mm Tool: Socket wrench, ½-inch hex head screws 5/16-inch x 1½-inch Attach chest pad to seat frame washers, 9 mm Tool: Socket wrench, ½-inch ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
  • Page 7 6 inches (15 cm), enough clearance weight stack spacer, 3-inch for the weights. Flat side of weight stack spacer should face user side. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
  • Page 8 Tools: Hex wrench, 8 mm Socket wrench, 17 mm Remove the cap from the guide rod and place the rod into bracket opening se- guide rod with cap cured by the screw. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
  • Page 9 The distance from the underside of the jam nut to the top of the washer should 1.61 inch (41mm). be no more than Tighten the locking bolt against the select stem to 50 ft-lb (81 N-m) of torque. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
  • Page 10 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Superior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...
  • Page 11 Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Prone Leg Curl RSL 606 | Assembly Guide...

  • Page 12: Complete The Assembly

    Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points.
