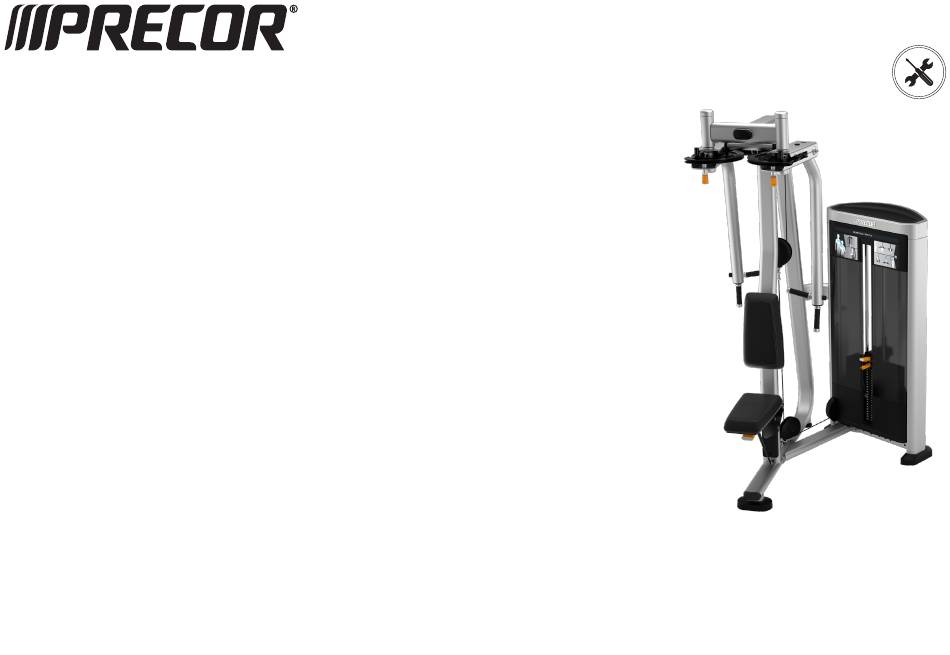

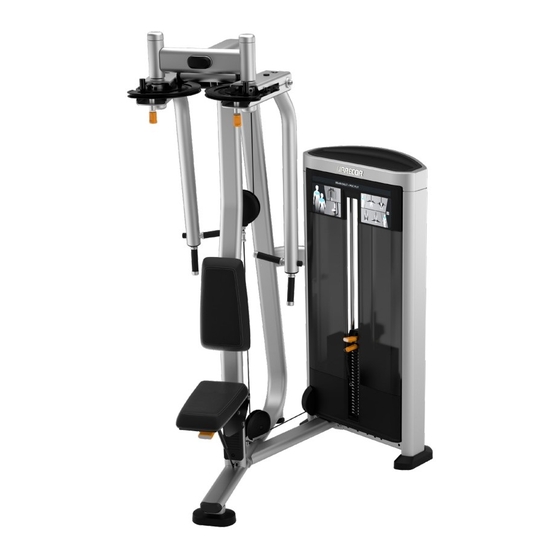

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Rear Delt/Pec Fly RSL 505 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Nylon lock nuts, M12 Shroud, front middle (left and right) Nylon lock nuts, M10 Shroud, front lower Weight labels Shroud, front upper placard Shroud, lower pulley cover Chest/back pad Seat pad ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide... -
Page 4: Frame Assembly
Insert both guide rod fasteners from user side to align kick plate. M10 x 125 mm BHCS Hand tighten only. These will be removed temporarily in a later washers, 11 mm step. ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide... -
Page 5: Moving Parts
Insert right arm assembly for stability. Match the labels on arm and main frame. Top with end cap and secure. shoulder bolt Tool: Hex wrench, 4 mm ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide... -
Page 6: Seat Assembly
. The larger body of the gas spring attaches to the seat. To adjust the roller clearance on the seat assembly, have your assistant apply force downward on seat. ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide... -
Page 7: Route The Cable
Route the Cable Image Hardware Instructions Pull the pop pin handle on the right arm assembly and rotate it outward. Then feed the upper cable through the arm. ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide... - Page 8 To route the cable to the upper pulleys of weight stack tower, remove the cable retainers, route the cables, and replace the retainers. Tighten to 50 ft-lb (67 Open-end wrench, 19 mm N-m) of torque. Torque wrench ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide...
- Page 9 Place the top 10 lb (4.5 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide...
- Page 10 Replace the cap to the top of the rod and secure top of rod to weight stack tower frame. washers, 11 mm M10 nylon lock nut Tools: Hex wrench, 8 mm Socket wrench, 17 mm ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide...
- Page 11 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Superior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide...
- Page 12 Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide...
-
Page 13: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points. - Page 14 RSL Rear Delt/Pec Fly 505 | Assembly Guide | P/N CW39543-101 ENG © Precor, Incorporated | 30 August 2019...
