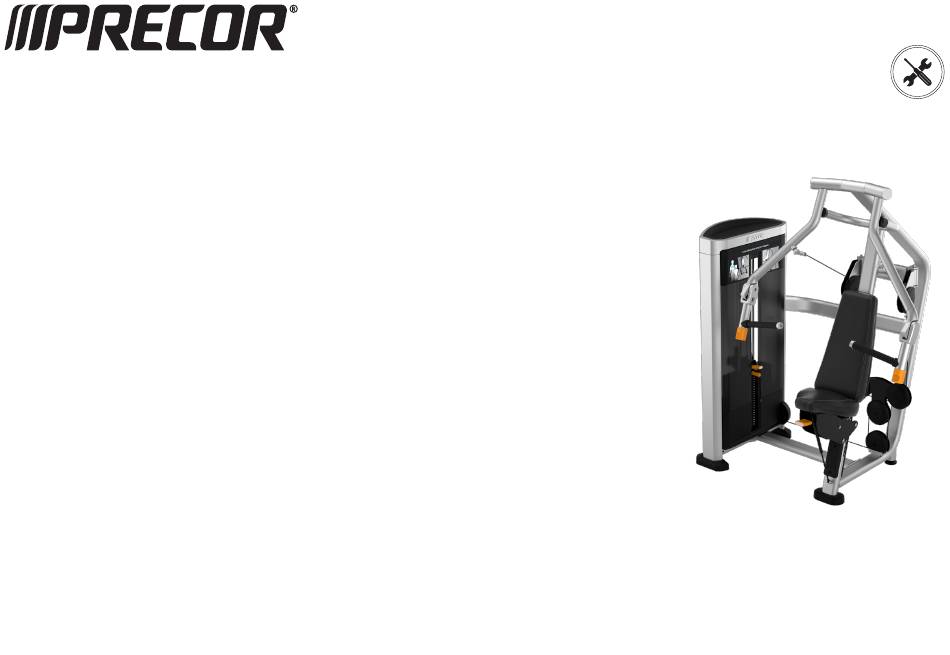

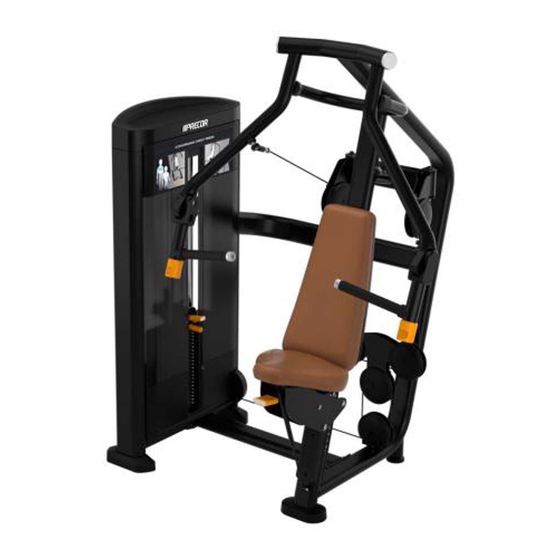

- Page 1 ENGLISH Resolute™ Strength Selectorized Line Converging Chest Press RSL 414 Assembly Guide...
-
Page 2: Assembly Requirements
It takes about 90 minutes to assemble this equipment. If this is your first time doing this, allow more time. CAUTION At least two people are required to assemble the equipment. DO NOT attempt to assemble this by yourself. Precor recommends that all strength equipment be bolted to the flooring at all anchoring points. -
Page 3: Parts List
Shroud, top tray Seat pad Shroud, front middle (left and right) Weight labels Shroud, front lower Roller adjustment tool (attached to Seat assembly) Shroud, front upper placard Shroud, pulley cover ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide... -
Page 4: Frame Assembly
Insert guide rod fasteners, one from each side, to align the M10 x 125 mm BHCS kick plate. Hand tighten only. These will be removed tem- washer, 11 mm porarily in a later step. 50 48 ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide... - Page 5 13 mm Tool: Hex wrench, 10 mm M12 x 35 mm SHCS Connect upper cross brace to weight stack tower washers, domed, silver Tool: Hex wrench, 10 mm ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide...
- Page 6 Socket wrench, 19 mm Do not tighten the M10 screws installed in step 1 at this Torque wrench time. They will be removed temporarily in a later step. ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide...
-
Page 7: Moving Parts
Tools: Hex wrench, 10 mm Torque wrench end plugs with sleeves Slide end plugs with sleeves onto ends of arms. Tap gently with mallet if needed. Tool: Mallet Remove all labels. ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide... -
Page 8: Seat Assembly
(ensure the position of the roller tool does not change). Remove tool. hex head screws 5/16 x 1½-inch Attach seat pad to seat assembly washers, 9 mm Tool: Socket wrench, ½-inch with extension ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide... -
Page 9: Route The Cable
To route the cable to the upper pulleys of weight stack tower, remove the cable retainers, route the cables, and replace the retainers. Tighten to 50 ft-lb (67 Open-end wrench, 19 mm N-m) of torque. Torque wrench ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide... - Page 10 Place the top 10 lb (4.5 kg) weight plates plate over the weight plates. The plates and top plate should align flush on the top plate assembly user side. ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide...
- Page 11 Place one bumper onto third rod, followed by the add-on weight spacer, another bumper, the add-on weight, and the add-on weight handle. add-on weight spacer, 3-inch add-on weight add-on weight handle ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide...
- Page 12 Peel the extra label away and rub remaining labels again. Lubricate the guide rods with a Teflon-based lubricant, such as Tri-Flow Supe- rior Lubricant. Remove any excess with a clean cloth or tissue. ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide...
- Page 13 Place shroud crown on top and secure. Recommended bolt torque is 25 ft-lb (34 N-m). Tools: Hex wrench, 8 mm Torque wrench Securely snap top tray into place. ©2019 Precor Inc. | Converging Chest Press RSL 414 | Assembly Guide...
-
Page 14: Complete The Assembly
Complete the Assembly Precor recommends that the strength equipment be bolted down at all anchoring points. Adjust the round feet on the frame up or down by turning them left or right to help level the equipment. Anchor each oblong foot on the frame to the floor, including the feet on the weight stack tower. Each oblong foot has a rubber cap with slits to allow access the anchor points. - Page 15 RSL Converging Chest Press 414 | Assembly Guide | P/N CW39535-101 ENG © Precor, Incorporated | 30 August 2019...
