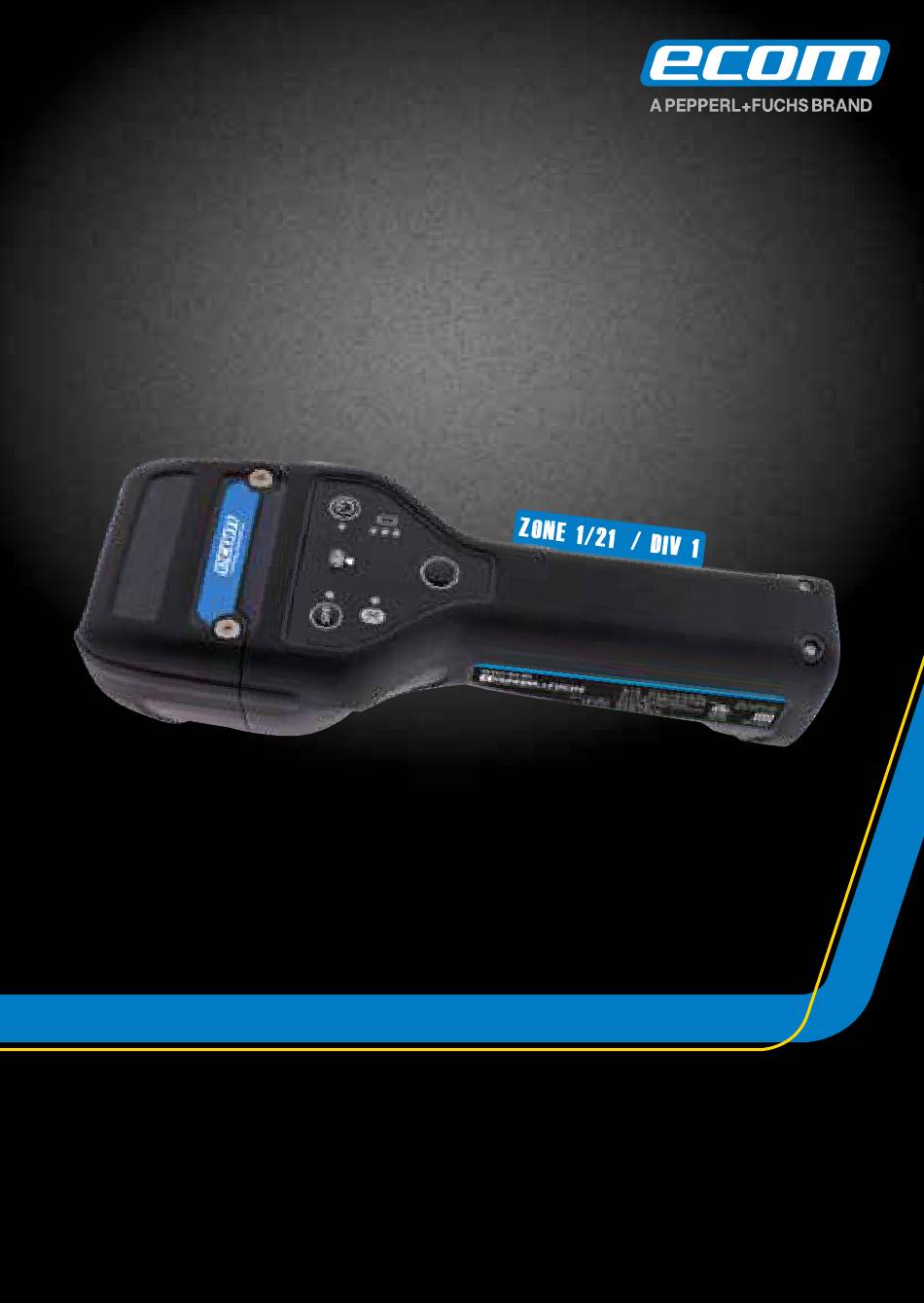

- Page 1 Bluetooth Scanner Ident-Ex ® Operating instructions...
-
Page 2: Table Of Contents
Content 1. Application ......................3 2. Specifications.......................3 3. Functional Description / Operating Instructions ..........3 4. Scope of Delivery ....................3 5. Charging.......................3 6. Battery indicator of the Ident-Ex.................4 7. Description of Buttons and LEDs ...............4 8. Switching Ident-Ex On and Off with Power Button ..........5 9. -
Page 3: Application
1. Application The intrinsically safe RFID and Barcode Scanner Ident-Ex 01 can be connected via Bluetooth to an input device (Smartphone, Tablet, etc.) or used as stand-alo- ne-device. 2. Specifications Operating temperature: -20°C … +50°C Storage temperature: Storage temperature for shipping is -20° C ... +35° C. Recommended temperature around 23°... -
Page 4: Battery Indicator Of The Ident-Ex
6. Battery indicator of the Ident-Ex Description of the LED status of the battery indicator (running on battery) Battery level The green LED illuminates permanently Ident-Ex battery status by 100-60% The yellow LED illuminates permanently Ident-Ex battery status by 59-30% The red LED illuminates permanently Ident-Ex battery status by 29-6% The red LED blinks... -
Page 5: Switching Ident-Ex On And Off With Power Button
There is only one button on the bottom side of the Ident-Ex. The main trigger. 8. Switching Ident-Ex On and Off with Power Button To turn on the Ident-Ex, you have to keep the Power Button pressed for 3 seconds. Please note that the Ident-Ex can only be turned off, if the device is in battery operation. -
Page 6: Reading With A Head Module
Settings, such as the selection of the head module and the selection of the module which reacts by pressing the Main Trigger or Trigger, will not be part of the reset. 14. Reading with a head module The head module which shall be used for reading can be chosen through the settings. -
Page 7: Connection With Spp-Profile
Lost connection: If the Ident-Ex 01 has lost the connection (e.g. out of range), the Ident-Ex 01 will try to connect to the device approx. every 5 seconds until the connection was made or the Ident-Ex 01 was switched off. Disconnect / start new connection: The connection of the Ident-Ex and the device (Bluetooth LED illuminating) can be terminated by pressing the SPP Button for approx. -
Page 8: Batch Mode
Lost connection: If the Ident-Ex 01 lost the SPP connection (e.g. out of range), the SPP and Blue- tooth LED goes out and a new connection with SPP-Profile must be established (if the Ident-Ex 01 is in range). Generic: If the Ident-Ex 01 is connected with SPP-Profile with a input device, data can be transferred to or from the Ident-Ex 01. -
Page 9: Camscan Keyboard App
19. CamScan Keyboard APP Because of the different operating systems it is possible to get deviations with the Software-Keyboard of your mobile device. Please install the “CamScan Keyboard” App. The App can be downloaded under https://www.ecom-ex.com/nc/apps/ . After installation, only one adjustment must made to use the Ident-Ex 01 as external keyboard and the Software-Keyboard together. -
Page 10: Nfc-Tag
21. NFC-TAG Behind the label of the Ident-Ex 01 is a NFC-Tag integrated. This TAG can be used to pair the Ident-Ex 01 with a Smartphone/Tablet. Additionally the NFC-TAG can be used as ID or for any other purpose. The mounted NFC-TAG is freely programmable. - Page 12 Copyright© 2020 ECOM Instruments GmbH. The contents of this document, either in part or in their entirety, may not be reproduced, forwarded, distributed or saved in any way without ECOM Instruments GmbH prior written consent. The contents of this document are presented as they currently exist. ECOM Instruments GmbH does not provide any express or tacit guarantee for the correctness or completeness of the contents of this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a specific purpose unless applicable laws or court decisions make...
