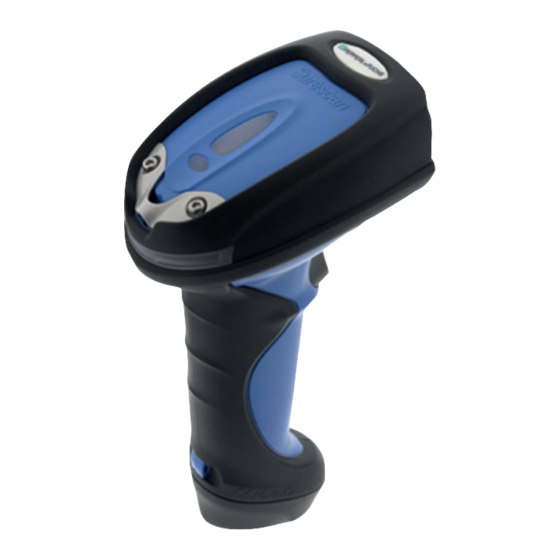

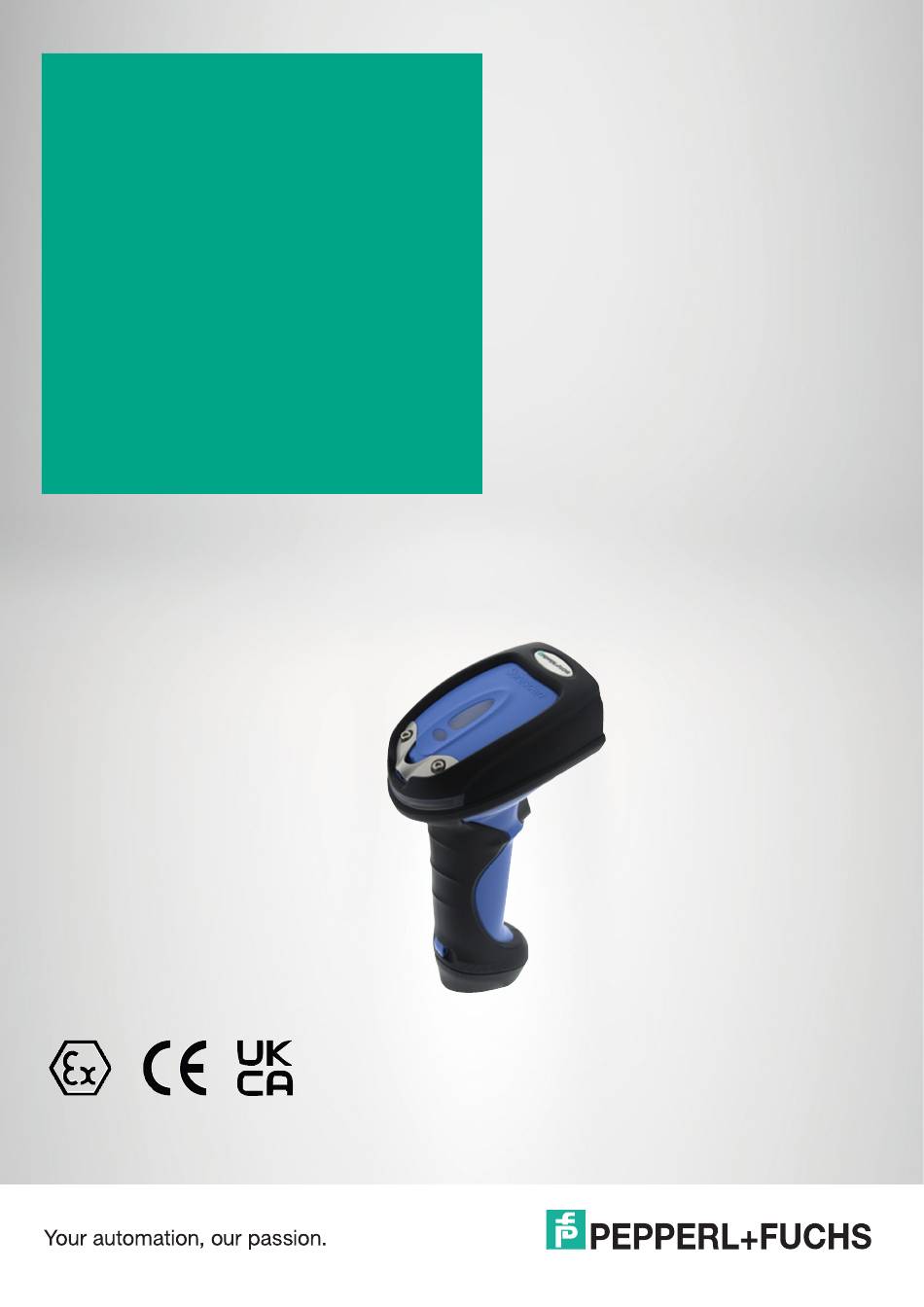

- Page 1 IDM-Z1-264-M-2D-J1-BT-N-N0 IDM-Z1-164-M-1D-J1-BT-P-N0 Bluetooth handheld scanner for use in explosion- hazardous areas Zone 1/21 Manual...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Contents History of the Manual ....................4 Safety .......................... 5 Introduction ....................5 2.1.1 Content of this Document ....................5 2.1.2 Manufacturer ........................5 2.1.3 Target Group, Personnel ..................... 5 2.1.4 Symbols Used ........................6 Technical Specifications ................... 7 Explosion Protection .................. -
Page 4: History Of The Manual
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 History of the Manual History of the Manual Version Comments 12/2022 First edition for scanner generation x64... -
Page 5: Safety
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Safety Safety Introduction 2.1.1 Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •... -
Page 6: Symbols Used
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Safety 2.1.4 Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage. -
Page 7: Technical Specifications
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Technical Specifications Technical Specifications Explosion Protection 1D-Models: II 2G Ex ib IIB T4 Gb II 2D Ex ib IIIC T135°C Db 2D-Models: II 2G Ex ib op is IIB T4 Gb II 2D Ex ib op is IIIC T135°C Db... - Page 8 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Technical Specifications Manufacturer Pepperl+Fuchs Group Lilienthalstraße 200 68307 Mannheim, Germany info@de.pepperl-fuchs.com www.pepperl-fuchs.com...
-
Page 9: Technical Data
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Technical Specifications Technical Data IDM-Z1-164-M-1D-J1-BT-P-N0 IDM-Z1-264-M-2D-J1-BT-N-N0 Description Linear imager 2-D imager Barcode One-dimensional 1-D (Barcode and One-dimensional 1-D & 2-D (Bar- stacked code incl. PDF417) code and stacked code incl. PDF417) Barcode types Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Codabar, Code... -
Page 10: Use
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Technical Specifications The handheld scanner is a piece of handheld apparatus. It enables portable recording and direct data transfer of barcodes and 2-D codes in explosion- hazardous areas. The device is specifically modified for use in explosion-hazardous areas of... -
Page 11: System Structure
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 System Structure System Structure Overview The Bluetooth® handheld scanners and their accessories are presented in the following over- view. Charging the handheld scanner batteries can take place within the hazardous area using the Zone 1/21 certified base station and the associated power module. Furthermore, the scan- ner can be charged in the non-explosion-hazardous area using a base station/charging cradle. -
Page 12: System Structure 2
System Structure 2 System / Stand-alone setup Overview of the complete system structure 2: Bluetooth® handheld scanners IDM-Z1-164- M-1D-J1-BT-P-N0, IDM-Z1-264-M-2D-J1-BT-N-N0, and base station and power module in explosion-hazardous areas. Figure 4.2 System structure 2 - scanner with base station connected to VisuNet GXP Description: The Bluetooth®... -
Page 13: System Structure 3
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 System Structure System Structure 3 VisuNet GXP Bluetooth® option / Charger in non-explosion-hazardous area Overview of the complete system structure 3: Bluetooth® handheld scanner and charging cradle in non-explosion-hazardous areas Figure 4.4 System structure 3 - scanner with a base station in safe area/Bluetooth option VisuNet Description: The Bluetooth®... - Page 14 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 System Structure Figure 4.5 PSU-IDMx61-BC-N0-N0 Non-Ex Power Supply needs to be connected to the SUB-D9 connector Figure 4.6 When USB 3.0 is available set the USB bus power switch to “ON”. Then connect the cradle and host device via a USB cable.
-
Page 15: Commissioning
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Commissioning Preparing Bluetooth® Handheld Scanners Note Charge the new battery pack for 8 hours prior to the first use. Warning! Self discharge of the batteries When the batteries are inserted in the barcode reader, they tend to discharge more quickly. - Page 16 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Figure 5.2 Removing the protective battery cap Danger! The designated battery must only be used! The battery is inserted into the compartment on the handheld scanner. The end of the pull tab must be seen protruding out of the opening of the handheld scanner. If the battery is inserted correctly and connected to the contacts, there is an audible and visual signal.
- Page 17 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Using the base station in explosion-hazardous areas - system structure Use the connection cable CBL-IDMx* to connect the base station to the supply module SK- IDM-Z1*. First, install the RJ50 male connector of the connection cable into the RJ50 port of the base station.
- Page 18 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Figure 5.6 Female M12 connector of pre-installed base connection cable of the supply module SK- IDM-Z1* Figure 5.7 Connecting the plug coupling to the supply module basic connection line...
- Page 19 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning The handheld scanner is placed in the charger. The underside of the handle is used first to ensure that the charging contacts are properly connected. The LED light on the scanner head indicates successful charging. Figure 5.8...
- Page 20 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Using the base station in non-explosion-hazardous areas - system structure 2 With a non-explosion-protected base station, charging in non-explosion-hazardous areas can be performed using the PSU-IDMx61-BC-N0-N0 power supply. The cable is plugged into the opening for this at the bottom of the base station. For a base station for explosion-hazardous areas, this connection is sealed at the factory.
- Page 21 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning To connect in the non-explosion-protected area, the cable to connect to the power supply and to the PC is inserted into the opening for this at the bottom of the base station. An audible click can be heard when the cable is fully inserted. It must be verified that the cable is firmly anchored.
-
Page 22: Pinout Of Supply Module With Rs-232 Or Usb
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Pinout of Supply Module with RS-232 or USB Supplying the base station according to system structure 2 via connector - plug/coupling. The terminal assignment is located under the unscrewable opening on the front of the supply module. - Page 23 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning The blue base connection cable is delivered pre-assembled with the supply module SK-IDM- Z1-*. The cable consists of a M12 connector plug and a 3-core cable. The individual cores are numbered (printed on the core insulation) and must be connected as follows (4.2 RS-232 inter- face and 4.3 USB interface) to the intrinsically safe terminals of the supply module.
-
Page 24: Base Connection Line Rs-232
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Base connection line RS-232 Assignment of pre-installed base connection cable to supply module (RS-232) Assignment of pre-assembled connec- tion coupling Supply module terminal compartment Core designation Designation Number Direct connection of the base station without a plug/coupling to the... -
Page 25: Base Connection Line Usb
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Commissioning Base connection line USB Base connection cable USB Pinout of connector plug Designation Connection of USB connection cable to supply module Pre-assembled connection coupling Terminal compartment Core Designation Number Direct connection of the base station without plug/coupling to the supply module with USB interface Figure 5.16... -
Page 26: Accessories
IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Accessories Accessories Corded Handheld Reader Mounting Accessories Item num- Product name Description Photo #548267 SCANNER-HOLDER-U1- Scanner holder compatible with XX00-N0 Housing AG-XX00 Material: Stainless steel AISI 316L (1.4404) Compatible with IDMx6x, ecom Ident-Ex® 01 and PSCAN Prepared for mounting to right side... - Page 27 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Accessories Bluetooth® Handheld Reader Accessories for VisuNet HMI Applications Item Num- Product Name Description Photo #70158516 IDM-Z1-x64-B-J1-BT-N0 Bluetooth® reader base station & charger Ex-protection: ATEX & IECEx Zone 1/21 Radio Interface: Bluetooth® Protocol: USB/Serial (depends on connection cable) Compatible with IDM-Z1-x64-M-* Bluetooth®...
- Page 28 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Accessories Bluetooth® Handheld Reader Accessories for VisuNet HMI Applications Item Num- Product Name Description Cable Photo #548345 CBL-IDMx61-B- Serial connection cable for Straight N0-S-S18-N0 base station 1.8-m length Ex-protection: non-Ex, for use in safe area only! Interface: RJ50 (cradle) to...
- Page 29 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Accessories Item Num- Product Name Description Cable Photo #548349 CBL-IDMx61-B- Serial connection cable for Straight J1-S-S18-N0 base station 1,8-m length Ex-protection: suitable for Zone 1/21 & Zone 2/22 Interface: RJ50 (cradle) to M12 male connector Cable: straight; 1.8-m...
- Page 30 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Accessories Serial extension cables Item Num- Product Name Description Cable Photo #548356 CBL-IDMx6x-DB- Serial extension cable Coiled J1-S-C30-N0 Ex-protection: suitable for 3-m length Zone 1/21 & Zone 2/22 Interface: M12 female socket to M12 male con- nector Protocol: serial...
- Page 31 IDM-Z1-264-M-2D-J1-BT-N-N0, IDM-Z1-164-M-1D-J1-BT-P-N0 Accessories Corded Handheld Reader Accessories for VisuNet HMI Applications Ex-protection: ATEX&IECEx Zone 1/21 Item num- Product name Description Photo #70115393 SK-IDM-Z1-160-BD-1D- Barrier for corded 1D reader & base J1-DC-S-N station Input: 24 V DC Protocol: RS-232/422/485 Ex e (to...
- Page 32 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-8476...
