Summary of Contents for Pepperl+Fuchs IDM-Z2-264-M-2D-J2-BT-N-N0

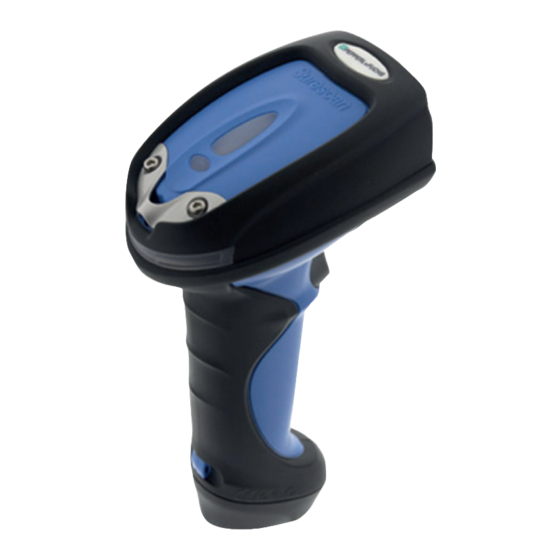

- Page 1 IDM-Z2-264-M-2D-J2-BT-N-N0 IDM-Z2-164-M-1D-J2-BT-P-N0 Bluetooth® handheld scanner for use in explosion- hazardous areas Zone 2/22 Manual...
- Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
-
Page 3: Table Of Contents
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Contents History of the Manual ....................4 Safety .......................... 5 Introduction ....................5 2.1.1 Content of this Document ....................5 2.1.2 Manufacturer ........................5 2.1.3 Target Group, Personnel ..................... 5 2.1.4 Symbols Used ........................6 Technical Specifications ................... 7 Explosion Protection .................. -
Page 4: History Of The Manual
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 History of the Manual History of the Manual Version Comments 12/2022 First edition for scanner generation x64... -
Page 5: Safety
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Safety Safety Introduction 2.1.1 Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •... -
Page 6: Symbols Used
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Safety 2.1.4 Symbols Used This document contains symbols for the identification of warning messages and of informative messages. Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage. -
Page 7: Technical Specifications
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Technical Specifications Technical Specifications Explosion Protection 1-D-/2-D-model II 3G Ex ic IIB T4 Gc II 3D Ex ic IIIC T135°C Dc Test certificate IBExU19ATEXB016X IECEx IBE 19.0026X Manufacturer Pepperl+Fuchs SE Lilienthalstraße 200 68307 Mannheim Germany info@de.pepperl-fuchs.com www.pepperl-fuchs.com... -
Page 8: Technical Data
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Technical Specifications Technical Data IDM-Z2-164-M-1D-J2-BT-P- IDM-Z2-264-M-2D-J2-BT-N- Description Linear imager 2-D imager Barcode One-dimensional 1-D (Bar- One-dimensional 1-D & 2-D code and stacked code incl. (Barcode and stacked code PDF417) incl. PDF417) Barcode types Code 39, Code 39 Trioptic, Code 32, Code 93, Code 11, Cod-... -
Page 9: System Structure
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 System Structure System Structure Overview The Bluetooth® handheld scanner and their accessories are presented in the following over- view. Charging the handheld scanners batteries can take place within the hazardous area using the Zone 2/22 certified base station and the associated power module. Furthermore, the barcode scanner can be charged in the non-explosion-hazardous area using a base sta- tion/charging cradle. - Page 10 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 System Structure Description: The Bluetooth® handheld scanner has been designed with the battery for explosion-hazard- ous areas. For proper operation in explosion-hazardous areas, a IDM-Z2-x64-B-J2-BT-N0 base station, a supply cable SK-IDM-Z2-J2-5M-S-N and CBL-IDMx60-* connection cable are required The Bluetooth® handheld barcode scanner is designed to be used in explosion-hazardous areas Zone 2/22.
-
Page 11: System Structure 2
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 System Structure System Structure 2 Overview of the complete system structure 2: Base station with Bluetooth® handheld bar- code scanner IDM-Z2-x64-M-* connected via serial communication protocol to the supply cable and a host PC in the non-explosion-hazardous area with optional GR.TJE.13.13.09.B- S0008 connection box for long communication distances. - Page 12 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 System Structure Item no. Product Name Description Photo #70142693 HOLDER-BRACKET- Bracket to wall-mount SK-IDM-Z2-J2-* SK-IDM-Z2-N0 barrier - Material: Stainless steel AISI 304 (1.4301) - NOTE: Barrier not included! #70142118 GR.TJE.13.13.09.B- Enclosure material: glass fiber reinforced S0008 polyester (GRP)
-
Page 13: System Structure 3
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 System Structure System Structure 3 Overview of the complete system structure 3: Bluetooth® handheld barcode scanner IDM- Z2-x64-M-* connected via supply cable SK-IDM-Z2-J2-1M-U-N to the USB interface of the Vis- uNet FLX system. Zone 2/22 Barcode Scanner, USB connection to VisuNet FLX Figure 4.3... -
Page 14: System Structure 4
Note The installation of the IDM-Z2-x64-B-J2-BT-N0 base station with either the IDM-Z2-164-M-1D- J2-BT-P-N0 or IDM-Z2-264-M-2D-J2-BT-N-N0 barcode scanner to the integrated barrier of the VisuNet GXP requires the optional interface "3". Refer to the VisuNet GXP technical data (Module A and B) for further information regarding the interfaces. -
Page 15: Commissioning
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Commissioning The battery BAT-IDM-Z2-x61-M is required for commissioning the Bluetooth® Zone 2/22 hand- held barcode scanner. Caution! Battery! Only this battery, which is intended for this purpose, may be used! Preparing Bluetooth® Handheld Scanners Note Charge the new battery pack for 8 hours prior to the first use! - Page 16 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Figure 5.2 Removing the protective battery cap. The battery is inserted into the compartment on the handheld scanner. The end of the pull tab must be seen protruding out of the opening of the handheld scanner. If the battery is inserted correctly and connected to the contacts, there is an audible and visual signal.
- Page 17 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Using the base station in explosion-hazardous areas - system structure Use the connection cable CBL-IDMx* to connect the base station to the cable barrier SK-IDM- Z2-J2-*. First, install the RJ50 male connector of the connection cable into the RJ50 port of the base station.
- Page 18 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Figure 5.6 Female M12 connector of pre-installed base connection cable of the cable barrier SK- IDM-Z2-J2-*. Figure 5.7 Connecting the plug coupling to the supply module basic connection line.
- Page 19 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning The handheld reader is placed in the charger. The underside of the handle is used first to ensure that the charging contacts are properly connected. The LED light on the scanner head indicates successful charging. Figure 5.8...
- Page 20 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Using the base station in non-explosion-hazardous areas - system structure 2 With a non-explosion-protected base station, charging in non-explosion-hazardous areas can be performed using the PSU-IDMx61-BC-N0-N0 power supply. The cable is plugged into the opening for this at the bottom of the base station. For a base station for explosion-hazardous areas, this connection is sealed at the factory.
- Page 21 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning To connect in the non-explosion-protected area, the cable to connect to the power supply and to the PC is inserted into the opening for this at the bottom of the base station. An audible click can be heard when the cable is fully inserted. It must be verified that the cable is firmly anchored.
-
Page 22: Pin Allocation Of Supply Cable Sk-Idm-Z2-J2-5M-S-N Rs-232 Interface
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Pin allocation of supply cable SK-IDM-Z2-J2-5M-S-N RS-232 inter- face Supply of the base station zone 2/22 according to system configuration 1, 2 and 4 via plug-in connection plug/coupler. Figure 5.12 Note The serial connection cables come with a yellow marking. - Page 23 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Supply and data transmission with RS-232 interface to a host PC outside the hazard- ous area Supply Cable Connection coupling Designation 9-pole Sub-D RS-232 Pin TxD / RS-232 (white) GND / RS-232 (white) TxD + / RS-422 (yellow)
-
Page 24: Pin Allocation Of Supply Cable Sk-Idm-Z2-J2-1M-U-N Usb Interface
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Pin allocation of supply cable SK-IDM-Z2-J2-1M-U-N USB interface Supply of the base station zone 2/22 according to system configuration 3 via plug-in connec- tion plug/coupler. Figure 5.13 Note The USB connection cables come with a green marking. - Page 25 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Commissioning Supply and data transmission with USB interface to a host PC outside the hazardous area Supply cable Designation USB Pin 1 (red) 2 (white) 3 (green) 5 (black) Note Information relating to programming from the SICK AG manual (www.SICK.com) is required for...
-
Page 26: Accessories
IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Accessories Accessories Bluetooth® handheld scanner mounting accessories Item no. Product name Description Photo #548267 SCANNER-HOLDER- Reader holder compatible with Housing U1-XX00-N0 AG-XX00 Material: Stainless steel AISI 304 (1,4301) Compatible with IDMx6x, ecom Ident- Ex® 01 and PSCAN Prepared for mounting to right side of... - Page 27 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Accessories Bluetooth® Handheld scanner Accessories for VisuNet HMI Applications Item no. Product Name Description Photo #70158522 IDM-Z2-x64-B-J2-BT-N0 Bluetooth® reader base station & charger Explosion protection: ATEX&IECEx- Zone 2/22 Radio interface: Bluetooth® Protocol: USB/Serial (depends on connection cable) Compatible with IDM-Z2-x64-M-* Bluetooth®...
- Page 28 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Accessories Item no. Product Name Description Photo #548396 HOLDER-BRACKET- Bracket to mount IDM-Z1-x64-B-J1- XX00-IDMx61-B-N BT-N0 base station to AG-XX00 housing. - Material: Stainless steel AISI 304 (1.4301) - Assembly: Right side of AG-XX00 housing - Includes bracket and installation...
- Page 29 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Accessories Item no. Product Name Description Cable Photo #548343 PSU-IDMx61- AC/DC Power supply for Only required in BC-N0-N0 base station & charger combination with Input: 230 V AC Serial connec- Explosion protection: non- tion cable for Ex, for use in non-explo-...
- Page 30 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Accessories Item no. Product Name Description Cable Photo #70144010 CBL-IDMx61-B- USB connection cable for Straight Jx-U-S07-N0 base station 0.7-m length Explosion protection: suit- able for Zone 1/21 & Zone 2/22 Interface: RJ50 (cradle) to M12 male connector Protocol: USB Compatible...
- Page 31 IDM-Z2-264-M-2D-J2-BT-N-N0, IDM-Z2-164-M-1D-J2-BT-P-N0 Accessories Ex e Junction Box Ex e for long communication distances Item num- Product name Description Photo #70142118 GR.TJE.13.13.09.B- Enclosure material: glass fiber reinforced S0008 polyester (GRP) Enclosure size (HxWxD): 130 x 130 x 130 Finish: inherent color black...
- Page 32 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications / DOCT-8477...
