Pepperl+Fuchs IDM-Z2-161-M-1D-J2-BT-N-N0 Manual

Pepperl+Fuchs IDM-Z2-161-M-1D-J2-BT-N-N0 Manual

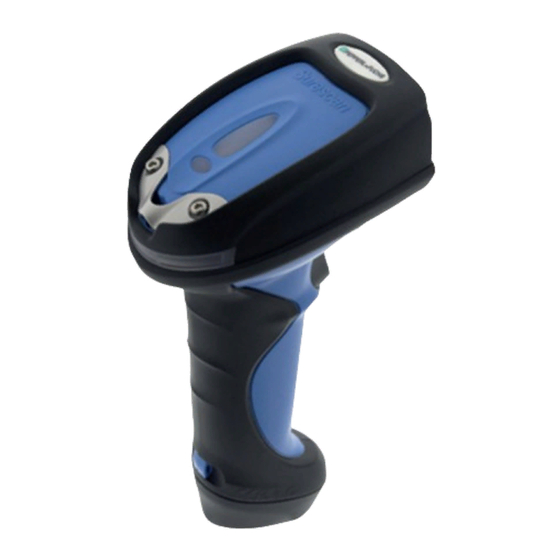

Bluetooth handheld barcode reader for use in explosion-hazardous areas zone 2/22

Advertisement

Quick Links

IDM-Z2-161-M-1D-J2-BT-N-N0
IDM-Z2-161-M-1D-J2-BT-P-N0
IDM-Z2-261-M-2D-J2-BT-N-N0
Bluetooth® handheld
barcode reader for use in
explosion-hazardous areas
Zone 2/22
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDM-Z2-161-M-1D-J2-BT-N-N0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pepperl+Fuchs IDM-Z2-161-M-1D-J2-BT-N-N0

  • Page 1 IDM-Z2-161-M-1D-J2-BT-N-N0 IDM-Z2-161-M-1D-J2-BT-P-N0 IDM-Z2-261-M-2D-J2-BT-N-N0 Bluetooth® handheld barcode reader for use in explosion-hazardous areas Zone 2/22 Manual...
  • Page 2 Phone: +49 621 776 - 0 E-mail: info@de.pepperl-fuchs.com North American Headquarters Pepperl+Fuchs Inc. 1600 Enterprise Parkway Twinsburg, Ohio 44087 Phone: +1 330 425-3555 E-mail: sales@us.pepperl-fuchs.com Asia Headquarters Pepperl+Fuchs Pte. Ltd. P+F Building 18 Ayer Rajah Crescent Singapore 139942 Phone: +65 6779-9091 E-mail: sales@sg.pepperl-fuchs.com https://www.pepperl-fuchs.com...
  • Page 3: Table Of Contents

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 History of the Manual ....................4 Introduction........................ 5 Content of this Document ................5 Manufacturer ....................5 Target Group, Personnel ................5 Symbols Used ....................5 Technical Specifications ................... 7 Explosion Protection ..................7 Technical Data for Bluetooth® Reader ............8 Use ........................
  • Page 4: History Of The Manual

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 History of the Manual The following editions of the manual have been released: Version Comments 01/2022 First edition...
  • Page 5: Introduction

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Introduction Content of this Document This document contains information required to use the product in the relevant phases of the product life cycle. This may include information on the following: • Product identification • Delivery, transport, and storage •...
  • Page 6 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Warning Messages You will find warning messages, whenever dangers may arise from your actions. It is mandatory that you observe these warning messages for your personal safety and in order to avoid prop- erty damage. Depending on the risk level, the warning messages are displayed in descending order as fol-...
  • Page 7: Technical Specifications

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Technical Specifications Explosion Protection II 3G Ex ic IIB T4 Gc II 3D Ex ic IIIC T135°C Dc Test certificate IBExU19ATEXB016X IECEx IBE 19.0026X Manufacturer Pepperl+Fuchs SE Lilienthalstraße 200 68307 Mannheim Germany info@de.pepperl-fuchs.com...
  • Page 8: Technical Data For Bluetooth® Reader

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Technical Data for Bluetooth® Reader IDM-Z2-161-M-1D- IDM-Z2-161-M-1D- IDM-Z2-261-M-2D- J2-BT-N-N0 J2-BT-P-N0 J2-BT-N-N0 Description Linear imager 2-D imager Barcode One-dimensional 1-D One-dimensional 1-D One-dimensional 1-D (barcode) (Barcode and stacked & 2-D (Barcode and code incl. PDF417) stacked code incl.
  • Page 9: Use

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 The handheld reader is a piece of handheld device. It enables portable recording and direct data transfer of barcodes and 2-D codes in explosion- hazardous areas. The device is modified for use in explosion-hazardous areas of Zone 2 and...
  • Page 10: System Structure

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 System Structure Overview The Bluetooth® handheld readers and their accessories are presented in the following over- view. Charging the handheld reader batteries can take place within the hazardous area using the Zone 2/22 certified base station and the associated power module. Furthermore, the bar- code reader can be charged in the non-explosion-hazardous area using a base sta- tion/charging cradle.
  • Page 11 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0...
  • Page 12: Idm-Z2-X61-M-J2* System Structure 1

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Figure 4.1 IDM-Z2-x61-M-J2* System Structure 1 Overview of the complete system structure 1: Base station with Bluetooth® handheld barcode reader IDM-Z2-x61-M-*connected via serial communication protocol to the intrinsically safe supply cable and a host PC in the non-explosion-hazardous area.
  • Page 13 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 The Bluetooth® handheld barcode reader is designed to be used in explosion-hazardous areas Zone 2/22. The connection in this structure uses the supply cable SK-IDM-Z2-J2-5M-S- N which is connected to the communication interface and realizes the data and intrinsically safe power supply.
  • Page 14: Idm-Z2-X61-M-* System Structure 2

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 IDM-Z2-x61-M-* System Structure 2 Overview of the complete system structure 2: Base station with Bluetooth handheld barcode reader IDM-Z2-x61-M-*connected via serial communication protocol to the supply cable and a host PC in the non-explosion-hazardous area with optional GR.TJE.13.13.09.B-S0008 connec- tion box for long communication distances.
  • Page 15 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Item no. Product Name Description Photo #70142693 HOLDER-BRACKET- Bracket to wall-mount SK-IDM-Z2-J2-* SK-IDM-Z2-N0 barrier - Material: Stainless steel AISI 304 (1.4301) - NOTE: Barrier not included! #70142118 GR.TJE.13.13.09.B- Enclosure material: glass fiber reinforced S0008 polyester (GRP)
  • Page 16: Idm-Z2-X61-M-* System Structure 3

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 IDM-Z2-x61-M-* System Structure 3 Overview of the complete system structure 3: Bluetooth® handheld barcode reader IDM-Z2- x61-M-* connected via supply cable SK-IDM-Z2-J2-1M-U-N to the USB interface of the Vis- uNet FLX system. Zone 2/22 Barcode Reader, USB connection to VisuNet FLX Figure 4.4...
  • Page 17: Idm-Z2-160-D-J2-Su-* System Structure 4

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Note Find details regarding the mechanical installation in the VisuNet FLX system manual. IDM-Z2-160-D-J2-SU-* System Structure 4 Overview of the complete system structure 4: Wired 1-D or 2-D handheld scanner IDM-Z2-x61- M-* connected via base station/charger to the power module and the USB Ex i interface "3"...
  • Page 18 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Warning! Zone 2/22 VisuNet GXP system installations are only suitable for use in Explosion Group IIB.
  • Page 19: Commissioning

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Commissioning The battery BAT-IDM-Z2-x61-M is required for commissioning the Bluetooth® Zone 2/22 hand- held barcode reader. Caution! Battery! Only this battery, which is intended for this purpose, may be used! Preparing Bluetooth® Handheld Scanners Note Charge the new battery pack for 8 hours prior to the first use! Danger! The battery must not be changed or inserted in explosion-hazardous areas.
  • Page 20 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Figure 5.2 Removing the protective battery cap. The battery is inserted into the compartment on the handheld reader. The end of the pull tab must be seen protruding out of the opening of the handheld reader. If the battery is inserted correctly and connected to the contacts, there is an audible and visual signal.
  • Page 21 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Using the base station in explosion-hazardous areas - system structure Use the connection cable CBL-IDMx* to connect the base station to the cable barrier SK-IDM- Z2-J2-*. First, install the RJ50 male connector of the connection cable into the RJ50 port of the base station.
  • Page 22 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Figure 5.6 Female M12 connector of pre-installed base connection cable of the cable barrier SK- IDM-Z2-J2-*. Figure 5.7 Connecting the plug coupling to the supply module basic connection line. The handheld reader is placed in the charger. The underside of the handle is used first to ensure that the charging contacts are properly connected.
  • Page 23 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Figure 5.8 Inserting the scanner into the base station.
  • Page 24 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Using the base station in non-explosion-hazardous areas - system structure 2 With a non-explosion-protected base station, charging in non-explosion-hazardous areas can be performed using the PSU-IDMx61-BC-N0-N0 power supply. The cable is plugged into the opening for this at the bottom of the base station. For a base station for explosion-hazardous areas, this connection is sealed at the factory.
  • Page 25 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Figure 5.10 Connecting the RJ50 cable to the base station. The handheld reader is placed in the charger. The underside of the handle is used first to ensure that the charging contacts are properly connected. The LED light on the scanner head indicates successful charging.
  • Page 26: Pin Allocation Of Supply Cable Sk-Idm-Z2-J2-5M-S-N Rs-232 Interface

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Pin allocation of supply cable SK-IDM-Z2-J2-5M-S-N RS-232 inter- face Supply of the base station zone 2/22 according to system configuration 1,2 and 4 via plug-in connection plug/coupler. Figure 5.12 Note The serial connection cables come with a yellow marking.
  • Page 27 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Supply and data transmission with RS-232 interface to a host PC outside the hazard- ous area Supply Cable Connection coupling Designation 9-pole Sub-D RS-232 Pin TxD / RS-232 (white) GND / RS-232 (white) TxD + / RS-422 (yellow)
  • Page 28: Pin Allocation Of Supply Cable Sk-Idm-Z2-J2-1M-U-N Usb Interface

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Pin allocation of supply cable SK-IDM-Z2-J2-1M-U-N USB interface Supply of the base station zone 2/22 according to system configuration 3 via plug-in connec- tion plug/coupler. Figure 5.13 Note The USB connection cables come with a green marking.
  • Page 29 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Supply and data transmission with USB interface to a host PC outside the hazardous area Supply cable Designation USB Pin 1 (red) 2 (white) 3 (green) 5 (black) Note Information relating to programming from the SICK AG manual (www.SICK.com) is required for...
  • Page 30: Accessories

    IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Accessories Bluetooth® handheld reader mounting accessories Item no. Product name Description Photo #548267 SCANNER-HOLDER- Reader holder compatible with Housing U1-XX00-N0 AG-XX00 Material: Stainless steel AISI 304 (1,4301) Compatible with IDMx6x, ecom Ident- Ex® 01 and PSCAN...
  • Page 31 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Bluetooth® Handheld Reader Accessories for VisuNet HMI Applications Item no. Product Name Description Photo #70142700 IDM-Z2-x61-B-J2-BT-N0 Bluetooth® reader base station & charger Explosion protection: ATEX&IECEx- Zone 2/22 Radio interface: Bluetooth® Protocol: USB/Serial (depends on connection cable) Compatible with IDM-Z2-x61-M Bluetooth®...
  • Page 32 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Item no. Product Name Description Photo #548396 HOLDER-BRACKET- Bracket to mount IDMx61-B-J1-BT- XX00-IDMx61-B-N N0 base station to AG-XX00 hous- ing. - Material: Stainless steel AISI 304 (1.4301) - Assembly: Right side of AG-XX00 housing - Includes bracket and installation...
  • Page 33 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Item no. Product Name Description Cable Photo #548343 PSU-IDMx61- AC/DC Power supply for Only required in BC-N0-N0 base station & charger combination with Input: 230 V AC Serial connec- Explosion protection: non- tion cable for Ex, for use in non-explo-...
  • Page 34 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Item no. Product Name Description Cable Photo #70144010 CBL-IDMx61-B- USB connection cable for Straight Jx-U-S07-N0 base station 0.7-m length Explosion protection: suit- able for Zone 1/21 & Zone 2/22 Interface: RJ50 (cradle) to M12 male connector...
  • Page 35 IDM-Z2-161-M-1D-J2-BT-N-N0, IDM-Z2-161-M-1D-J2-BT-P-N0, IDM-Z2-261-M-2D-J2-BT- N-N0 Ex e Junction Box Ex e for long communication distances Item num- Product name Description Photo #70142118 GR.TJE.13.13.09.B- Enclosure material: glass fiber reinforced S0008 polyester (GRP) Enclosure size (HxWxD): 130 x 130 x 130 Finish: inherent color black...
  • Page 36 Pepperl+Fuchs Quality Download our latest policy here: www.pepperl-fuchs.com/quality www.pepperl-fuchs.com © Pepperl+Fuchs · Subject to modifications Printed in Germany / DOCT-7830...
