 The unit does not have internal fuses therefore external fuses must be used for
protection and safety under fault conditions.
 Never open-circuit the secondary winding of an energized current transformer.
 This product should only be operated with CT secondary connections Earthed.
 If this equipment is used in a manner not specified by the manufacturer, protection
provided by the equipment may be impaired.

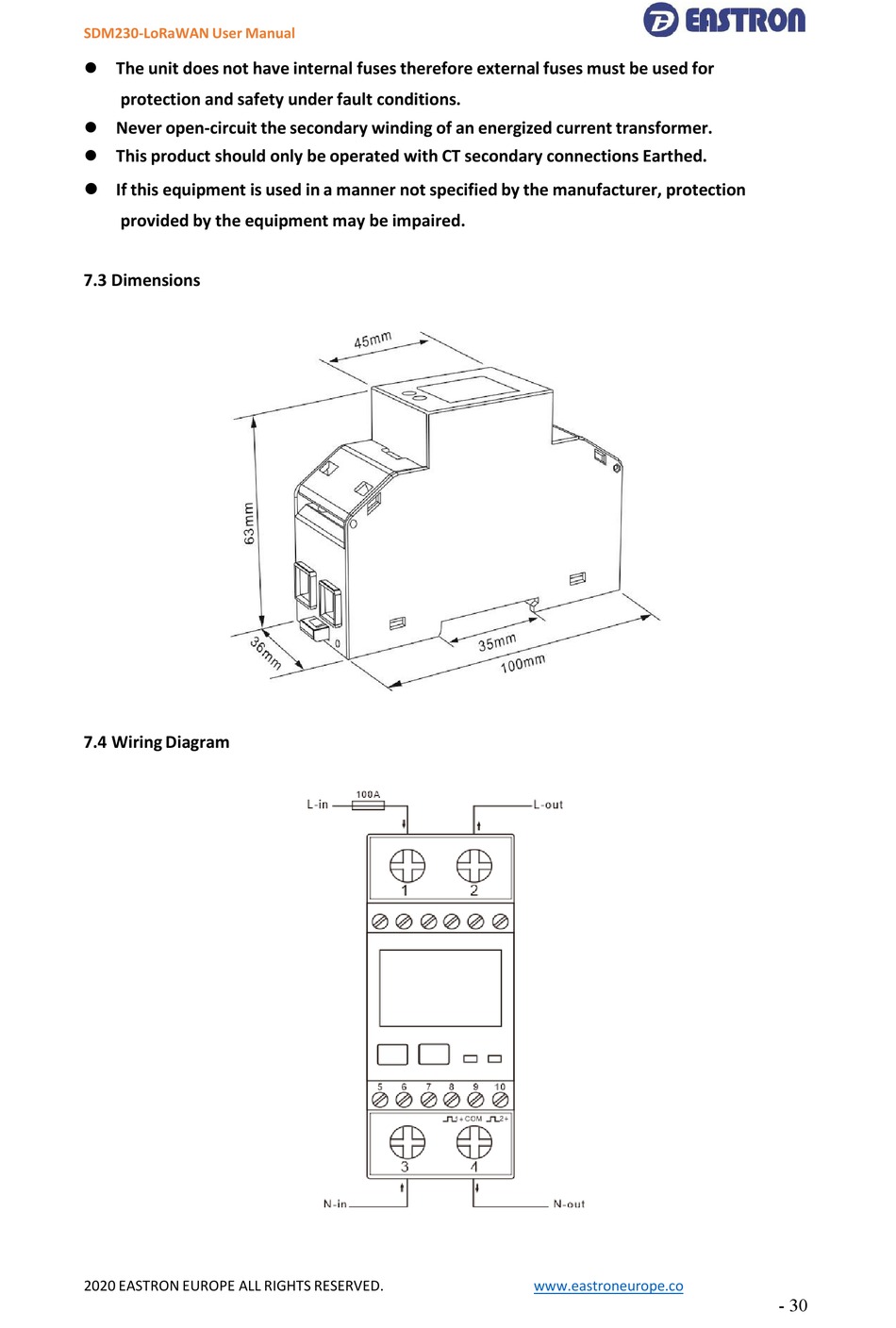

7.3 Dimensions

7.4 Wiring Diagram
