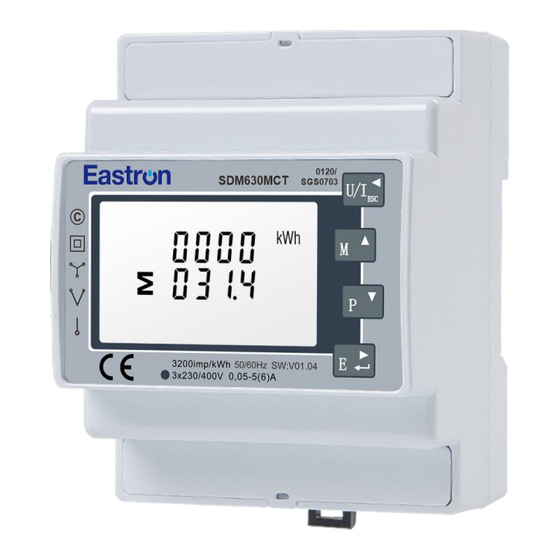

Eastron SDM630MCT Series User Manual
Smart three phase energy meter
Hide thumbs
Also See for SDM630MCT Series:
- Installation manual ,
- User manual (33 pages) ,
- Quick manual (5 pages)
Related Manuals for Eastron SDM630MCT Series
Summary of Contents for Eastron SDM630MCT Series

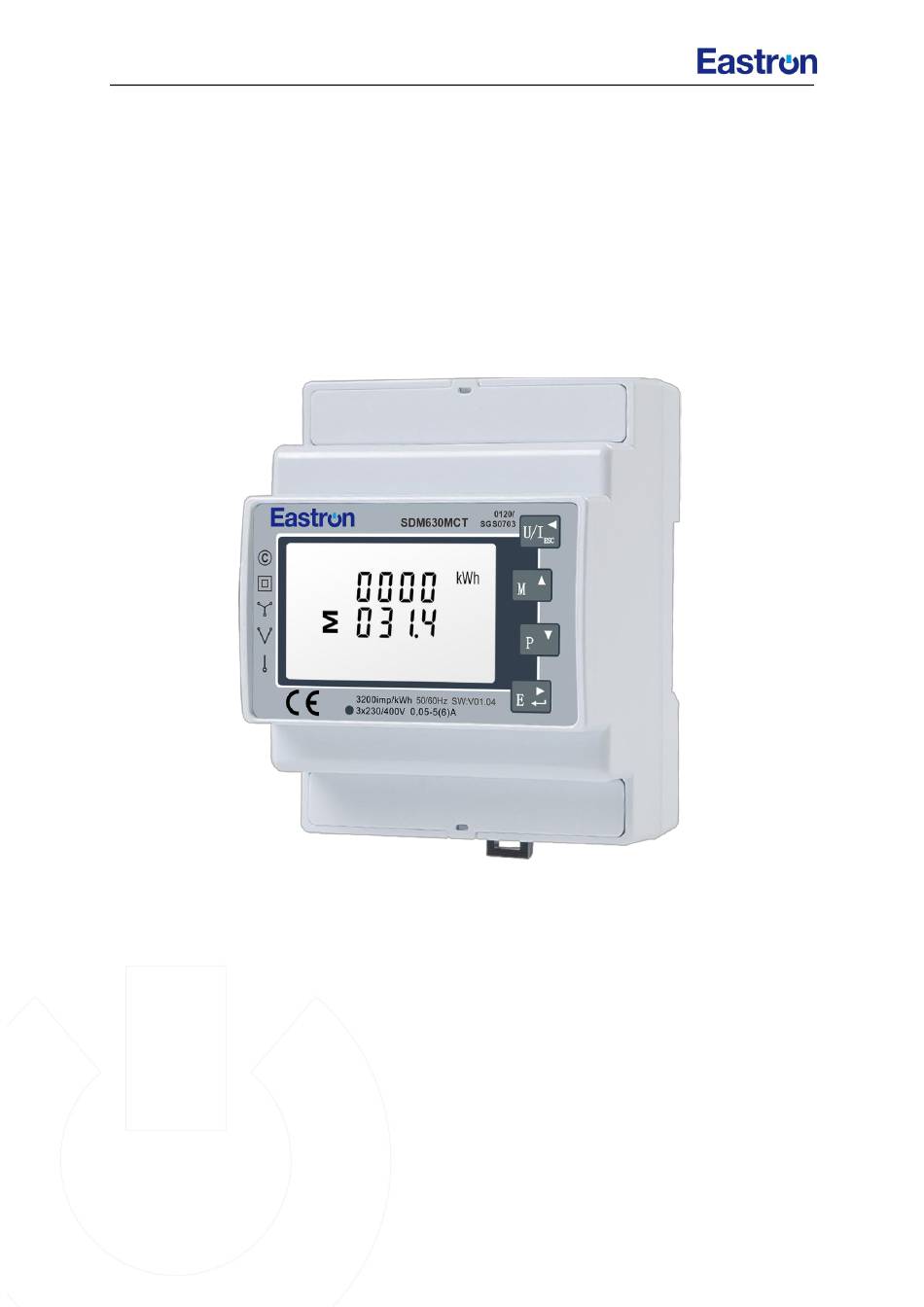

- Page 1 SDM630MCT Series User Manual 2024 V1.0 SDM630MCT Series Smart Three Phase Energy Meter USER MANUAL 2024 V1.0 2024 EASTRON ELECTRONIC. ALL RIGHTS RESERVED.
- Page 2 Eastron reserves all legal rights. Eastron reserves the right to amend the product specifications in this manual without prior notice. Before placing an order, please contact our company or local agent to get the latest specifications. 2024 EASTRON ELECTRONIC.
-
Page 3: Table Of Contents
SDM630MCT Series User Manual 2024 V1.0 CONTENT Version History ............................2 Risk Information ............................3 Chapter 1. Introduction ..........................5 1.1 Product Introduction ........................5 1.2 Product Characteristics ........................5 1.3 Models Table ..........................6 Chapter 2. Technical Parameters ......................6 2.1 Technical parameters ........................6 2.2 Accuracy ............................ -
Page 4: Version History
SDM630MCT Series User Manual 2024 V1.0 Version History Version Date Changes 2024-7-10 2024 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. -
Page 5: Risk Information
SDM630MCT Series User Manual 2024 V1.0 Risk Information Information for Your Own Safety This manual does not contain all of the safety measures operating the equipment (module, device) for different conditions and requirements. However, it does contain information which you must know for your own safety and to avoid damages. - Page 6 SDM630MCT Series User Manual 2024 V1.0 not exceed the maximum rated current. The supply wiring of this device shall be suitable sized cable to match the installed circuit breaker. A Disconnection Device (Circuit Breaker) should be installed close to the Multi Function Energy Meter.
-
Page 7: Chapter 1. Introduction
The requisite current input(s) are obtained via current transformers(CT). SDM630MCT series can be configured to work with a wide range of CTs with 1A/5A output, giving the unit a wide range of operation. Three types of communication port are available on the meter for remote data transmission: RS485 Modbus , M-Bus and Ethernet Modbus TCP. -
Page 8: Models Table
SDM630MCT Series User Manual 2024 V1.0 Mbus Tariffs Dual Ethernet Digital Model RS485 Modbus EN13757-3 (RTC) Sources Input SDM630MCT-2T ● ● SDM630MCT ● SDM630MCT-MT ● ● SDM630MCT-2T-MB ● ● SDM630MCT-MB ● SDM630MCT-E* ● SDM630MCT-DI ● ● SDM630MCT-TCP ● *Note: THD is not available on SDM630MCT-E Chapter 2. -
Page 9: Communication
SDM630MCT Series User Manual 2024 V1.0 Reactive energy Class2 IEC 62053-23 RS485Modbus RTU For Modbus RTU, the following RS485 communication parameters can be configured from the Set-up menu: Baud Rate 2400,4800,9600,19200,38400bps Parity NONE(default)/ ODD / EVEN Stop bits 1 or 2... -
Page 10: Dimensions
SDM630MCT Series User Manual 2024 V1.0 Height: 94.5 mm Width: 72mm Depth: 65mm Current and Voltage Inputs 2024 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com... - Page 11 SDM630MCT Series User Manual 2024 V1.0 Definitions of Other Terminals 2024 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 12 SDM630MCT Series User Manual 2024 V1.0 Wiring Guide Diameter Measurement Connection Screw Connection 3.0mm*PH1 Strip Length 6-7mm Terminal Screw ①②③④ Rigid/supple 0.5-2.5mm² (30 ~ 14AWG) ⑤⑥⑦⑧ Tightening torque 0.2Nm Model Diameter Measurement Connection Screw Connection 3mm*PH1 Strip Length 6-7mm Screw Terminal ⑳...
-
Page 13: Chapter 3. Operation
SDM630MCT Series User Manual 2024 V1.0 Chapter 3. Operation The first screen lights up all display segments and can be used as a display check. The second screen and the third screen indicates the firmware installed in the unit. Note：the actual display might be different with the left on here. -
Page 14: Measurements
SDM630MCT Series User Manual 2024 V1.0 P1 P2 P3 Next page or decrease Q1 Q2 Q3 value S1 S2 S3 P-t Q-t S-t Active E-t Move to right side Enter Setup mode Confirm setting Reactive E-t Imp Active E Exp Active E... -
Page 15: Frequency, Power Factor And Demand
SDM630MCT Series User Manual 2024 V1.0 Phase to neutral voltage THD% Phase to neutral current THD% 3.3.2 Frequency, Power factor and Demand Each successive pressing of the button selects a new range: Frequency and Power Factor (total) Power Factor of each phase... -
Page 16: Power
SDM630MCT Series User Manual 2024 V1.0 3.3.3 Power Each successive pressing of the button select a new range: Instantaneous Active Power in kW Instantaneous Reactive Power in kVAr Instantaneous Volt-amps in kVA Total W, VAr, VA 3.3.4 Energy Each successive pressing of the... - Page 17 SDM630MCT Series User Manual 2024 V1.0 Total reactive energy in kVArh Imported active energy in kWh Exported active energy in kWh Imported reactive energy in kVArh Exported reactive energy in kVArh Carbon emissions per kWh of electricity The meter’s settable parameters are password protected. By long pressing the 4th button “E”, the user can get 2024 EASTRON ELECTRONIC.
-
Page 18: Setup Mode
SDM630MCT Series User Manual 2024 V1.0 into the setup mode. 3.4.1 Password Validation Press button to enter password. Long press button for password confirmation. If an incorrect password is entered, the display will show “Err”. If the password is correct, the unit will show the setup menu. - Page 19 SDM630MCT Series User Manual 2024 V1.0 Long press to enter the selection routine. The current setting will flash. buttons to set the secondary address. 3.4.3.2 Baud Rate Setting From the Set-up menu, use buttons to select the Baud Rate option.
-
Page 20: Rs485 Modbus Rtu
SDM630MCT Series User Manual 2024 V1.0 buttons to choose Parity (EVEN / ODD / NONE) 3.4.3.4 Stop Bits From the Set-up menu, use buttons to select the Stop Bit option. Press to enter the selection routine. The current setting will flash. - Page 21 SDM630MCT Series User Manual 2024 V1.0 buttons to choose Baud rate 2.4k. 4.8k, 9.6k, 19.2k, 38.4k 3.4.4.2Parity From the Set-up menu, use buttons to select the Parity option. Press to enter the selection routine. The current setting will flash. buttons to choose Parity (EVEN / ODD / NONE) 3.4.4.3 Stop Bits...
-
Page 22: Pulse
SDM630MCT Series User Manual 2024 V1.0 3.4.5 CT Setting From the Set-up menu, use buttons to select the CT option. Secondary CT setting Press to enter the CT secondary current selection routine.:5A/1A Set CT 1 value Press to enter the CT Ratio setting screen. The range is from 0001 to 9999. - Page 23 SDM630MCT Series User Manual 2024 V1.0 Use this to set the energy represented by each pulse. Rate can be set to 1 pulse per 0.01/0.1/1/10/100/1000kWh/kVArh. From the Set-Up Menu, use buttons to select the pulse rate option. Press to enter the selection routine. The current setting will flash.
-
Page 24: Demand Interval Time
SDM630MCT Series User Manual 2024 V1.0 3.4.8 Demand Interval Time setup Long press button to enter the setup. Press button to set the demand period value. Long press button to confirm. Option: 0,5, 8, 10, 15, 20, 30, 60(default) Unit: min. -
Page 25: Ethernet Modbus Tcp
SDM630MCT Series User Manual 2024 V1.0 Long press button to enter the CO2 setup. Press button to setup the CO2 rate. Default：（0.5703) 3.4.12 Ethernet Modbus TCP setup ( Only for SDM630MCT-TCP) 3.4.12.1 DHCP function setup Long press button to enter the setup mode of TCP IP information. - Page 26 SDM630MCT Series User Manual 2024 V1.0 IP-Low 001.200 (default) 3.4.12.3 Subnet Mask address setup Long press button to enter the setup mode. Subnet mask-High 255.255 (default) Subnet mask-Low 255.0 (default) 3.4.12.4 TCP gateway address setup Long press button to enter the setup mode of IP address of TCP gateway TCP gateway address - High: 192.168 (default)
-
Page 27: Clr
SDM630MCT Series User Manual 2024 V1.0 TCP gateway address - Low: 001.001 (default) 3.4.12.5 TCP IP Port setup Long press button to enter the setup mode of TCP IP port TCP IP port: 502(default) 3.4.13 CLR setup From the Set-up menu, use buttons to select the reset option. -
Page 28: Current Direction
SDM630MCT Series User Manual 2024 V1.0 Press button to enter the new password. Long press button to confirm. Range：0000~9999, default 1000. 3.4.15 Current direction set-up buttons to select page “SET sys cont” Press to enter Phase A , the default is Frd (forward) Press button to change the current direction. -
Page 29: Chapter 4. Declaration Of Conformity ( For Mid Meter Only)
Chapter 4. . Declaration of Conformity ( For MID meter only) We Zhejiang Eastron Electronic Co., Ltd. Declares under our sole responsibility as the manufacturer that the Three phase multifunction electrical energy meter SDM630MCT series correspond to the production model described in the EU-type examination certificate and the requirements of the Directive 2014/32/EU.
