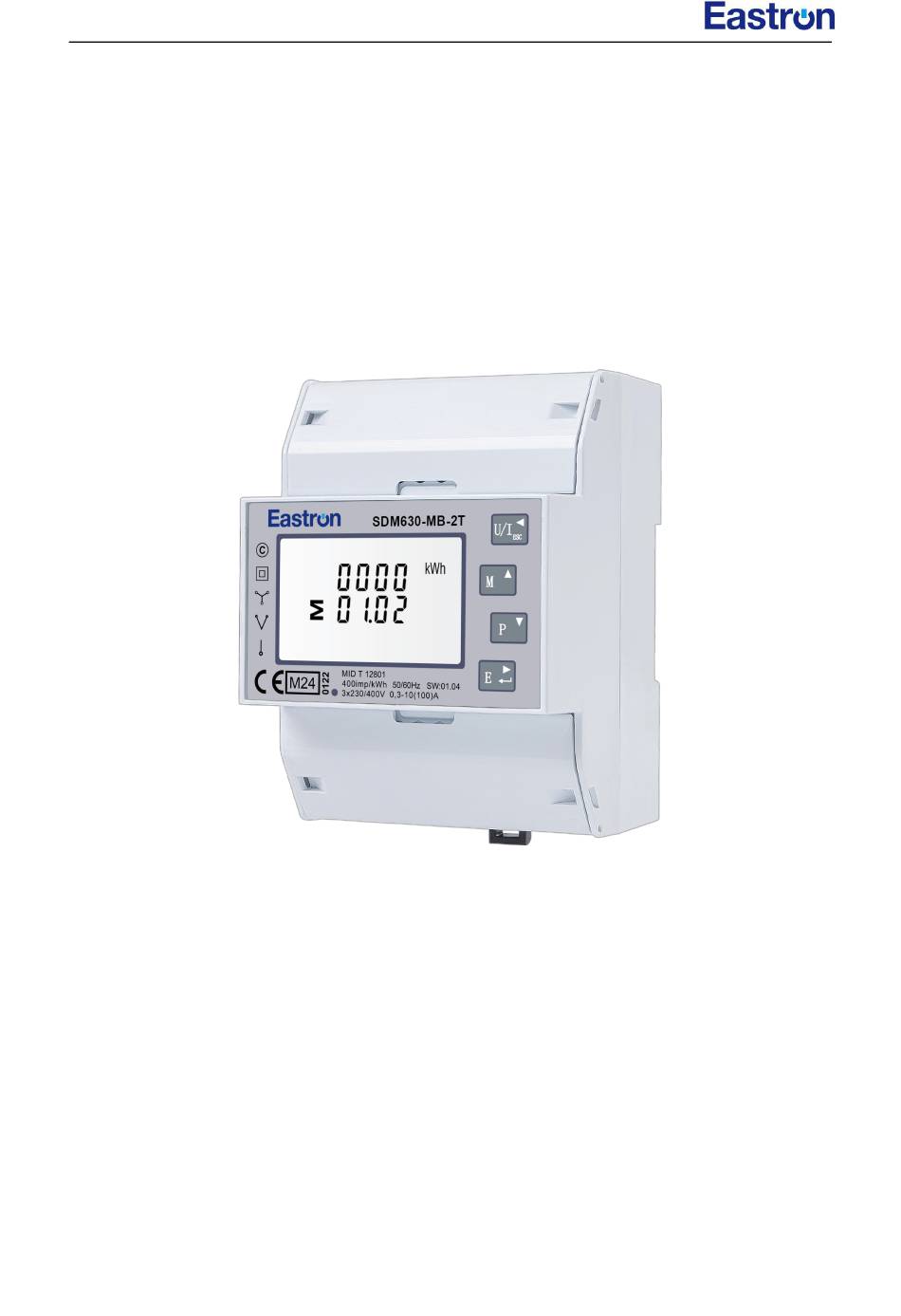

- Page 1 SDM630 M-bus Series User Manual 2025 V1.00 SDM630 M-bus series Smart Three Phase Energy Meter USER MANUAL 2025 V1.00 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED.
- Page 2 Eastron reserves all legal rights. Eastron reserves the right to amend the product specifications in this manual without prior notice. Before placing an order, please contact our company or local agent to get the latest specifications. 2025 EASTRON ELECTRONIC.
-
Page 3: Table Of Contents
.......................5 ..............................6 ............................6 ............................6 ............................. 7 ..........................8 Chapter 3. Operation ........................10 ........................10 .......................... 10 ..........................11 ..........................16 ..........................17 Chapter 4. Declaration of Conformity ( For MID meter only) ............19 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. -
Page 4: Version History
SDM630 M-bus Series User Manual 2025 V1.00 Version History Version Date Changes 1.00 2025-2-28 Initial issue 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. -
Page 5: Risk Information
Do not drop, or allow strong physical impact on the meter as the high precisely components inside may be damaged. Designed to be mounted inside of switchboards or cabinet on DIN rail. 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED. - Page 6 The data in this manual is checked regularly and the necessary corrections are included in subsequent editions. We are grateful for any improvements that you suggest. 2025 EASTRON ELECTRONIC. ALL RIGHTS RESERVED.
-
Page 7: Chapter 1. Introduction
THD-I and THD-U Maximum demand: MD Setup: parameters M-Bus Demand interval time Backlit time Supply system 1p2w, 3p3w,3p4w Clear re-settable energy & demand info. Password modification 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com... -
Page 8: Chapter 2. Technical Parameters
IEC 61000-4-4 Immunity to Impulse Waves IEC 61000-4-5 Conducted Immunity IEC 61000-4-6 Immunity to Magnetic Fields IEC 61000-4-8 Immunity to Voltage Dips IEC 61000-4-11 Radiated Emissions EN55032 Class B Conducted Emissions EN55032 Class B 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com... - Page 9 The pulse output is polarity dependent, passive transistor output requiring an external voltage source for correct operation. For this external voltage source, the voltage shall be 5-27V DC, and the maximum input current shall be 27mA DC. 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 10 Pulse output 1 ( configurable ) Constant Default: dFt = 0.0025 kWh/imp 200, 100, 60mS Width Default: 200mS Type Total kWh Pulse output 2 ( fixed ) Constant 400imp/kWh Width 100mS Height: 100mm Width: 72mm Depth: 66mm 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 11 SDM630 M-bus Series User Manual 2025 V1.00 3P4W 3P3W 1P2W(L+N) *230V/2T terminal for SDM630-MB-2T only Wiring Guide 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 12 Screw Connection Strip Length 12-13mm Screw Terminal ①~⑧ Rigid/Supple 4-25mm² Tightening Torque 3.5Nm Model Measurement Connection Screw Connection Strip Length 6-7mm Terminal Screw M2.5 Rigid/Supple 0.5-1.5mm² (22 ~ 14AWG) Tightening Torque 0.4Nm Model 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
-
Page 13: Chapter 3. Operation
I %THD Hz PF Previous page or Primary address Second address PF1 PF2 PF3 increase value Baud rate MD of I1 I2 I3 Parity bit MD of Power Stop bit All display segments 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com... - Page 14 Each successive pressing of the button selects a new range: Phase to neutral voltage (Not available under 3P3W) Phase to phase voltage (Not available under 1P2W) Current of each phase Neutral current (Not available under 3P3W &1P2W) 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 15 Each successive pressing of the button selects a new range: Frequency and Power Factor (total) Power Factor of each phase (Not available under 3P3W &1P2W) Maximum current demand of each phase Maximum total power demand 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 16 (Not available under 3P3W &1P2W) Instantaneous Volt-amps in kVA (Not available under 3P3W &1P2W) Total kW, kVAr, kVA 3.3.4 Energy Each successive pressing of the button shows following measurements: For SDM630-MB: Total active energy in kWh 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 17 SDM630 M-bus Series User Manual 2025 V1.00 Total reactive energy in kVArh Imported active energy in kWh Exported active energy in kWh Imported reactive energy in kVArh Exported reactive energy in kVArh For SDM630-Mbus-2T： Total active energy in kWh 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 18 (T1 run means under T1 calculation ) T2 active energy in kWh T1 reactive energy in kVArh (T1 run means under T1 calculation ) T2 reactive energy in kVArh SDM630-MB-2T shows tariff kWh/kVArh instead of imported and exported kWh/kVArh. 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 19 SDM630 M-bus Series User Manual 2025 V1.00 Each successive Long pressing of the button enter the auxiliary and each successive pressing of the button select a new range: Primary Address Second Address Baud Rate Parity Bit Stop Bit 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 20 3.After setting the last digit, long press to confirm the setting. 4.Press to return to a higher menu level. Settings interface Set status Optional configuration Password Default: 1000 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
- Page 21 Pulse output setting Option: kWh or kVArh (import, export, total) Default: export kWh Pulse rate setting Option:dFt, 0.01, 0.1, 1, 10, 100, 1000 kWh/kVArh per imp Default: dFt = 0.0025 kWh/kVArh per imp 2025 EASTRON ELECTRONIC. When electricity matter www.eastrongroup.com...
-
Page 22: Chapter 4. Declaration Of Conformity ( For Mid Meter Only)
Chapter 4. Declaration of Conformity ( For MID meter only) We, Zhejiang Eastron Electronic Co., Ltd. declares under our sole responsibility as the manufacturer that the three phase multi-function electrical energy meter SDM630 M-Bus series correspond to the production model described in the EU-type examination certificate and the requirements of the Directive 2014/32/EU. - Page 23 SDM630 M-bus Series User Manual 2025 V1.00 If you have any question, please feel free to contact our sales team. Eastron Electronic Co., Ltd. No. 52, Dongjin Road, Nanhu, Jiaxing, Zhejiang, China Tel: +86-573-83698881 Fax: +86-573-83698883 Email: sales@eastrongroup.com www.eastrongroup.com 2025 EASTRON ELECTRONIC.
