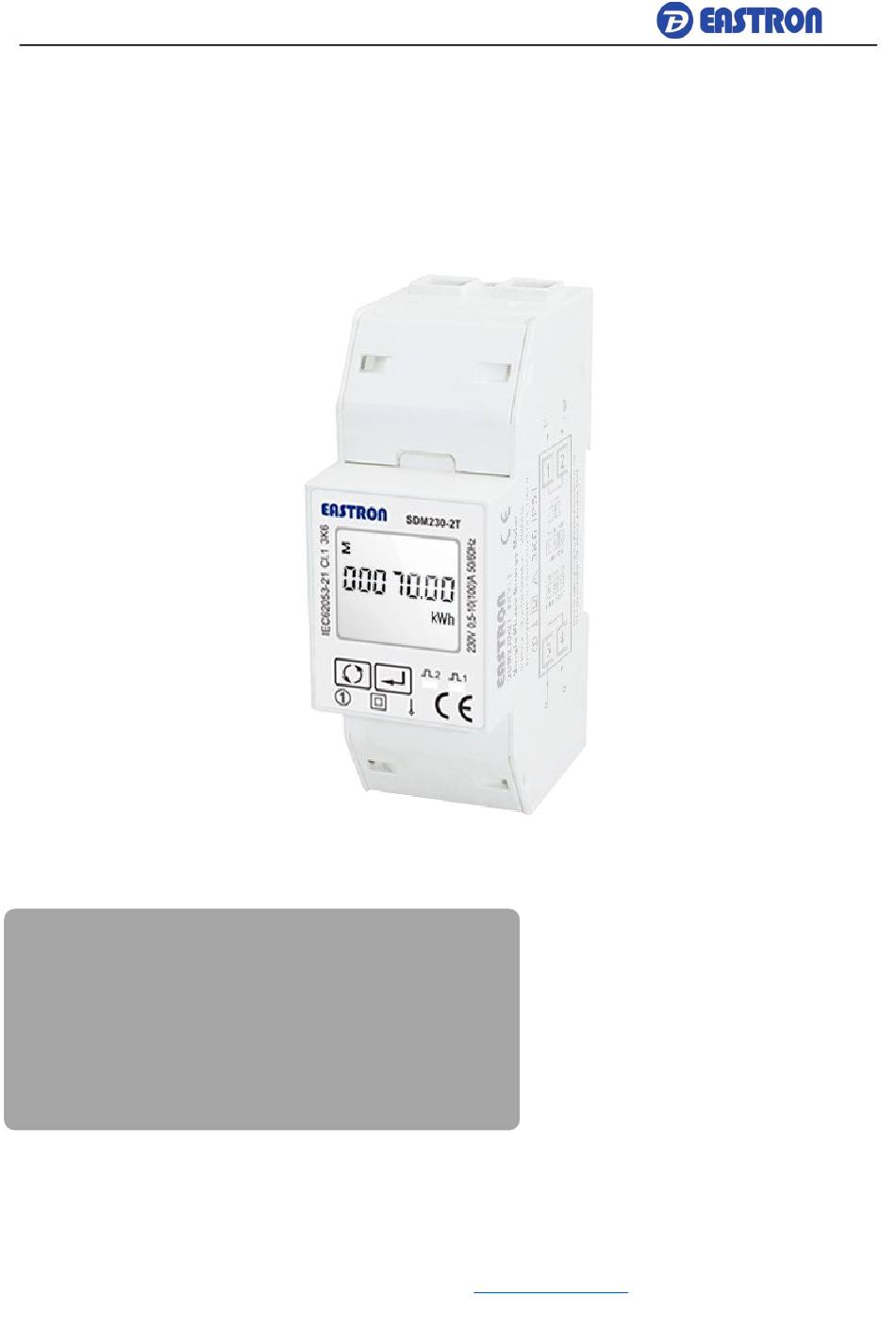

Eastron SDM230-2T User Manual

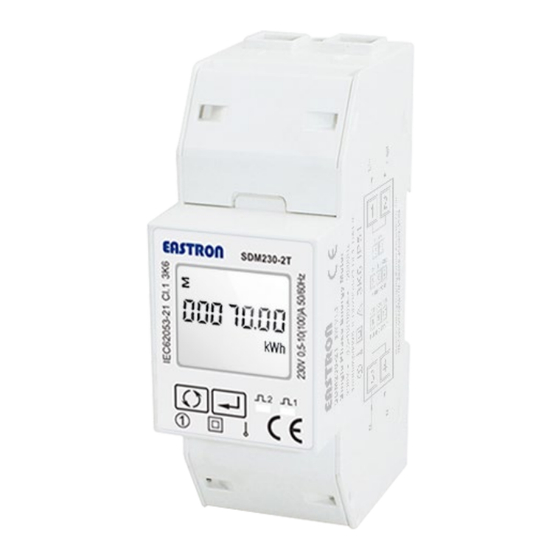

SDM230-2T
Single-Phase Two Module DIN Rail Meters
Measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc.
Two tariffs measurement
Two pulse outputs
RS485 Modbus
Din rail mounting 35mm
100A direct connection
Better than Class 1 / B accuracy
Zhejiang Eastron Electronic Co.,Ltd.
Add:No.1369Chengnan Road, Jiaxing, Zhejiang, 314001, China. Web:
Tel: 0086-573-83698881
www.eastrongroup.com
User Manual V1.1
Fax: 0086-573-83698883
Email: sales@eastrongroup.com
- 1 -
