Eastron SDM230 Series, SDM230-Bi, SDM230-DR Manual

Application

This document provides operating, maintenance and installation instructions.

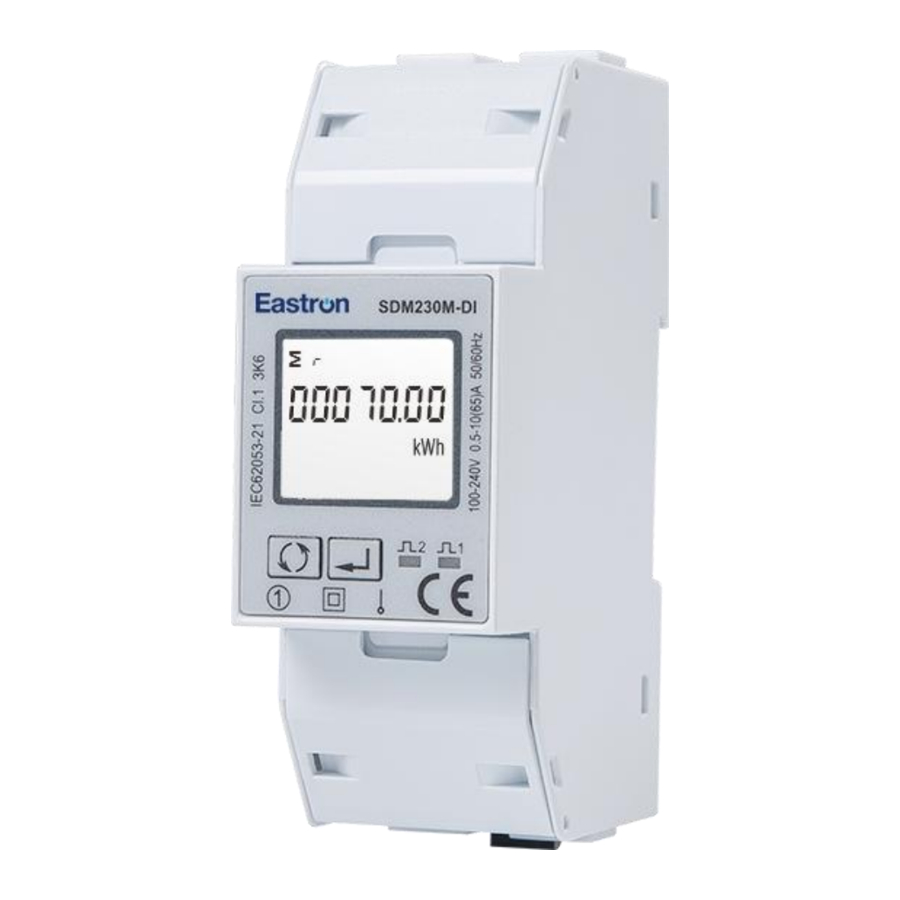

The unit measures and displays the characteristics of single phase two wire(1p2w) supplies, including voltage, frequency, current, power, actve and reactive energy, bi-directional energy measurement, etc. which makes it a good choice for solar PV energy metering, residential, utility and industrial application.
The unit equipped with a white back-lighted LCD screen for prefect reading. Built-in interfaces provides RS485 Modbus RTU outputs and pulse output. Digital input is provided for external signal counting. Configuration is password protected.

Specification

General Specifications

Accuracy

Environment

Output
RS485 output for Modbus RTU (For RS485 Modbus meters only)
The meter provides a RS485 port for remote communication. Modbus RTU is the protocol applied. For Modbus RTU, the following RS485 communication parameters can be configured from the Set-up menu.
Baud rate: 1200, 2400, 4800, 9600,19200 bps. Default: 2400bps
Parity: NONE/EVEN/ODD. Default: NONE
Stop bits:1 or 2
Modbus Address: 1 to 247

Mbus Port (For SDM230-Mbus only)
The meter rovides a Mbus port for remote communication. The meter adopts EN13757-3 Mbus communication protocol. The communication parameters can be configured via the SET-UP mode.
Baud rate: 300, 600, 1200, 2400, 4800, 9600 bps
Parity: NONE/ EVEN/ODD
Stop bit: 1 or 2
Primary address: 001-250
Secondary address: 00000001~99999999

Pulse Output (Not avaiable for SDM230M-DI)
The meter provides two pulse outputs. Both pulse outputs are passive type.
Pulse output 1 is configurable. The pulse output can be set to generate pulses to represent total / import/export kWh or kVArh.
The pulse constant can be set to generate 1 pulse per: 0.001(default) /0.01/0.1/1kWh/kVarh.
Pulse width: 200/100/60ms
Pulse output 2 is non-configurable. It is fixed to import kWh. The constant is 1000imp/kWh.

2T for dual source measurement (For SDM230-2T only)
This unit can measure energy from two different power supplies. For example, when public grid is power off and el ectric generator is on, the meter switches to tariff 2 measurement automatically.
The meter can also be used as a tariff meter. The tariff is controlled by an external time relay.

Mechanics

LCD display

Operation

Initialization Display
When it is powered on, the meter will initialize and do self-checking.

Display	Descriptions
	The first screen lights up all display segments and can be used as a display check.
	The second screen indicates the firmware installed in the unit. ( in kind prevail)
	The third screen indicates the build number. ( in kind prevail)
	The fourth screen indicates its meter ID (*not available for SDM230-Pulse, SDM230-DR, SDM230-Bi)
	The fifth screen indicates the baud rate (*not available for SDM230-Pulse, SDM230-DR, SDM230-Bi)

*After initialization and self-checking program, the meter will display total kWh.

Scroll display by Button
The buttons operate as follows:

1		Click the button, the LCD display will scroll the measurements
2		Click the button for 3 seconds to get into Set-up mode. In Set-up mode, it is the "confirm" button

Press the scroll button to check other measurement information:
The display order by scroll button:
SDM230M-DI:
Total kWh import kWh export kWh resettable kWh total kVArh import kVArh export kVArh resettable kVArh Max. power demand voltage current W VAr VA power factor frequency DI 1 DI 2 Modbus ID baud rate continuous running time.
Display number: 1, 4-7, 10-20,22-26

SDM230-Modbus:
Total kWh import kWh export kWh resettable kWh total kVArh import kVArh export kVArh resettable kVArh Max. power demand voltage current W VAr VA power factor frequency Pulse constant Modbus ID baud rate continuous running time.
Display number: 1, 4-7, 10-21, 24-26

SDM230-2T:
Total kWh T1 total kWh T2 total kWh import kWh export kWh resettable kWh total kVArh T1 total kVArh T2 total kVArh import kVArh export kVArh resettable kVArh Max. power demand voltage current W VAr VA power factor frequency Pulse constant Modbus ID baud rate continuous running time.
Display number: 1-21, 24-26

SDM230-Pulse:
Total kWh import kWh export kWh resettable kWh total kVArh import kVArh export kVArh resettable kVArh Max. power demand voltage current W VAr VA power factor frequency pulse constant continuous running time.
Display number: 1, 4-7, 10-21, 26

SDM230-Mbus:
Total kWh import kWh export kWh resettable kWh total kVArh import kVArh export kVArh resettable kVArh Max. power demand voltage current W VAr VA power factor frequency Pulse constant Mbus ID baud rate continuous running time.
Display number: 1, 4-7, 10-21, 24-26

SDM230-Bi:
Import kWh export kWh W resettable import kWh resettable export kWh
Display number: 4, 5, 16, 27, 28

SDM230-DR:
Total kWh resettable kWh W
Display number: 1, 6, 16

Display	Descriptions
	Total active energy Example: 70.00kWh
	T1 active energy Example: 10.00kWh *(For SDM230-2T only)
	T2 active energy Example: 10.00kWh *(For SDM230-2T only)
	Import active energy Example: 50.00kWh
	Export active energy Example: 20.00kWh
	Total resettable energy
	Total reactive energy Example: 10.00kVArh
	T1 reactive energy Example: 10.00kWh *(for SDM230-2T only)
	T2 reactive energy Example: 10.00kWh *(for SDM230-2T only)
	Import reactive energy Example: 5.00kVArh
	Export reactive energy Example: 5.00kVArh
	Total resettable reactive energy
	Total Max. power demand Example: 6930W
	Voltage Example: 229.8V
	Current Example: 30.156A
	Active Power Example: 4700W
	Reactive Power Example: 1030VAr
	Apparent power Example: 4811VA
	Power factor Example: 1.000
	Frequency Example: 49.99Hz
	Pulse 2 Constant Example: 50.00Hz
	DI 1 *(For SDM230M-DI only)
	DI 2 *(For SDM230M-DI only)
	Modbus address Example: 001 *(For Modbus meters only)
	High and low bit of Mbus secondary address Default: same as meter ID *(For SDM230-Mbus only)
	Baud rate Example: 9600
	Continuous running time(In total)
	Resettable import kWh For example: 58kWh *( For SDM230Bi only)
	Resettable export kWh For example: 50kWh *(For SDM230-Bi only)

Set-up Mode
To get into Set-up Mode, the user need press the "Enter" button for 3 second.

Display	Descriptions
	Password To get into Set-up mode, it asks a password confirmation. Default password: 1000
	If the setting is done successfully, the screen will show "good"
	If the entered information is wrong, the screen will show "ERR", which means the setting is failed.
	To set the Modbus ID Default ID is 001 Range: 001~247
	Press the "Enter" button, the first digit flash. Press the "Scroll" button to change the value. After choosing the new address value, the user need pressing the "Enter" button to confirm the setting.
	High bit of Mbus Secondary address Press the "Scroll" button to change the value. After choosing the new address value, the user need pressing the "Enter" button to confirm the setting.
	Low bit of Mbus Secondary address Press the "Scroll" button to change the value. After choosing the new address value, the user need pressing the "Enter" button to confirm the setting.
	To set the Baud rate Default value: 2400bps Range: 1200, 2400, 4800, 9600,19200 bps.
	Press the "Enter" button, the red digit flash. Press the "Scroll" button to change the value. After choosing the new baud rate, the user need pressing the "Enter" button to confirm the setting.
	To set the Parity Default: None Option: None, Even, Odd
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the option. After choosing the new Parity, the user need pressing the "Enter" button to confirm the setting.
	To set the Pulse output 1 Default: kWh Option: kWh/ kVArh/ imp.kWh/ exp.kWh/ imp. kVArh/ exp.kVArh
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the option. After choosing the new option, the user need pressing the "Enter" button to confirm the setting.
	To set the Pulse constant Default: 1000 Option: 1000/ 100/10/1 imp/kWh
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the option. After choosing the new option, the user need pressing the "Enter" button to confirm the setting.
	To set the Pulse Duration Default: 100mS Option: 200/ 100/ 60mS
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the option. After choosing the new option, the user need pressing the "Enter" button to confirm the setting.
	To set the Demand Integration Time Default: 15 minutes Option: 5 / 10 / 15 / 30 / 60 / OFF
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the option. After choosing the new DIT option, the user need pressing the "Enter" button to confirm the setting.
	To set the Automatic Scroll Time Interval Default: 0 S Option: 0 ~ 30S
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the option. After choosing the new "Scrl" option, the user need pressing the "Enter" button to confirm the setting.
	To set the Backlit lasting time Default: 60 min Option: OFF/ 5/ 10/ 20/ 30/ 60 Long press "Enter" button to enter set-up mode.
	Press the "Scroll" button to change the option. After choosing the new "Scrl" option, the user need pressing the "Enter" button to confirm the setting.
	Clear Long press "Enter" to enter clear interface.
	To Clear Max demand of active power Long press "Enter" button to confirm the operation.
	To Clear the resettable energy From the "7-1" page, press "Scroll" button enter into the energy reset page. Long press the "Enter" button to confirm the operation.
	To change the Password Default: 1000
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the value. After choosing the new password, the user need pressing the "Enter" button to confirm the setting.
	To set the DI Fliter time Default: 100 Range: 000 -255 mins
	Press the "Enter" button, the red part flash. Press the "Scroll" button to change the value. After choosing the new DI fliter time, the user need pressing the "Enter" button to confirm the setting.

*Both SDM230-DR and SDM230-Bi are not available with above settings.
*SDM230-Pulse is not available with the Modbus/Mbus communication setting or DI fliter time setting
*SDM230M-DI is not available with the pulse setting Setting on SDM230-DR and SDM230-Bi:
To get into Set-up Mode, the user need press the "Enter" button for 3 second.

SDM230-Bi
SDM230-DR

• During normal operation, voltages hazardous to life may be present at some of the terminals of this unit. Installation and servicing should be performed only by qualified, properly trained personnel abiding by local regulations. Ensure all supplies are de-energized before attempting connection or other procedures.
• Terminals should not be user accessible after installation and external installation provisions must be sufficient to prevent hazards under fault conditions.
• This unit is not intended to function as part of a system providing the sole means of fault protection good engineering practice dictates that any critical function be protected by at least two independent and diverse means.
• If this equipment is used in a manner not specified by the manufacturer, protection provided by the equipment may be impaired.

Wiring and Dimension

Installation
