Mindray BeneVision N Series 22 N1 Quick Start Manual

BeneVision N Series 22/19
N1
Safety checks
•
General overview of system integrity, system is visually clean, all required accessories are available and
suitable for patient group
•
Check integrity of accessories, ensure mains lead is plugged in and that mains power is on
Disabling the touchscreen
•
Press and hold the Main Menu quick key for approx 5 seconds. A padlock symbol
menu quick key if the touchscreen is disabled
•
The touchscreen lock period is configurable. To do so, follow this procedure:
Access Display by either of the following ways:
▪
▪
▪
•
To re-enable the touchscreen, press and hold the Main Menu quick key again
Cleaning
•
Adhere to the Operators Manual for advice on cleaning agents
•
Follow hospital policy, but with an awareness that agents utilised by the hospital may cause damage to the
monitor over time
Please Note: Some items that connect to the system are single patient use

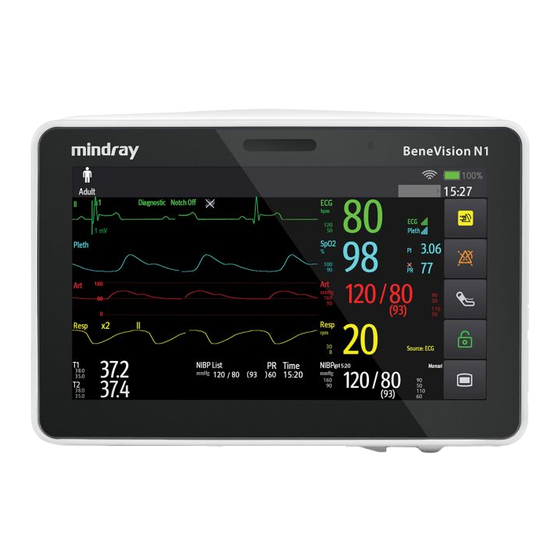

Removing & inserting the N1
•
Press the tab located on the underside of the N1 module and remove from the module housing
•
Insert the N1 by sliding the module into the housing until a click is heard
•
The monitored parameter waveforms appear on the host monitor screen
•
Two green LEDs are illuminated on the front of the N1 module
N1 battery
•
Up to 8 hours within optimal conditions (powered by a new, fully charged battery at 25◦c, ECG, SpO
measurements @15 min intervals)
• Battery life reduced to approximately 3 hours when using N1 and transfer CO
stated above
N1 storage
•
Ensure the N1 is docked. When the host monitor is connected to AC mains power and in Standby, the N1 will
receive a battery charge
•
If the host monitor is switched off and connected to AC mains power, only the host monitor receives a
battery charge
These guidelines do NOT replace the instructions for use and all users should refer to the appropriate Operator's Manual for detailed instructions.
CAS BeneVision N Series 22/19 & N1 User Guide_V1
Mindray® is a registered trademark of Shenzhen Mindray Bio-Medical Electronics Co. Ltd.
Select the Screen Setup quick key → select the Display
Select the Main Menu quick key → from the Display column select Display
Set Screen Lock Duration
The Illustrations may not necessarily reflect the setup or data displayed on your device.
Mindray UK © 2020. Errors and omissions excepted. Subject to change.
