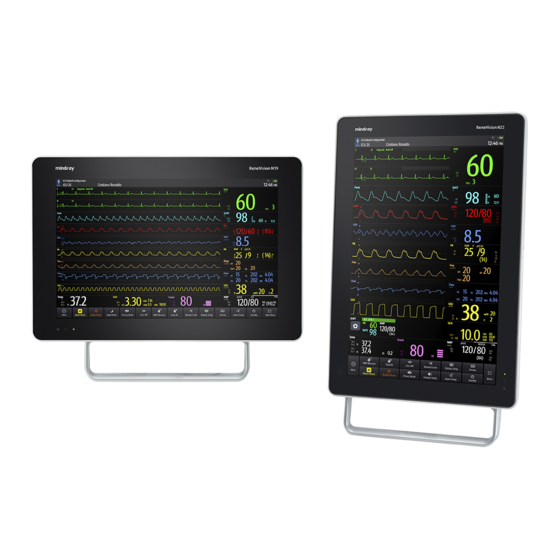

Mindray BeneVision N22 Quick Reference Manual

Hide thumbs Also See for BeneVision N22:
Table of Contents

Advertisement

Quick Links

See also: Service Manual , Operator's Manual
BeneVision N22/N19/N17/N15/
N12
Q u i c k R e fe re n ce G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BeneVision N22 and is the answer not in the manual?

Questions and answers

Related Manuals for Mindray BeneVision N22

Summary of Contents for Mindray BeneVision N22

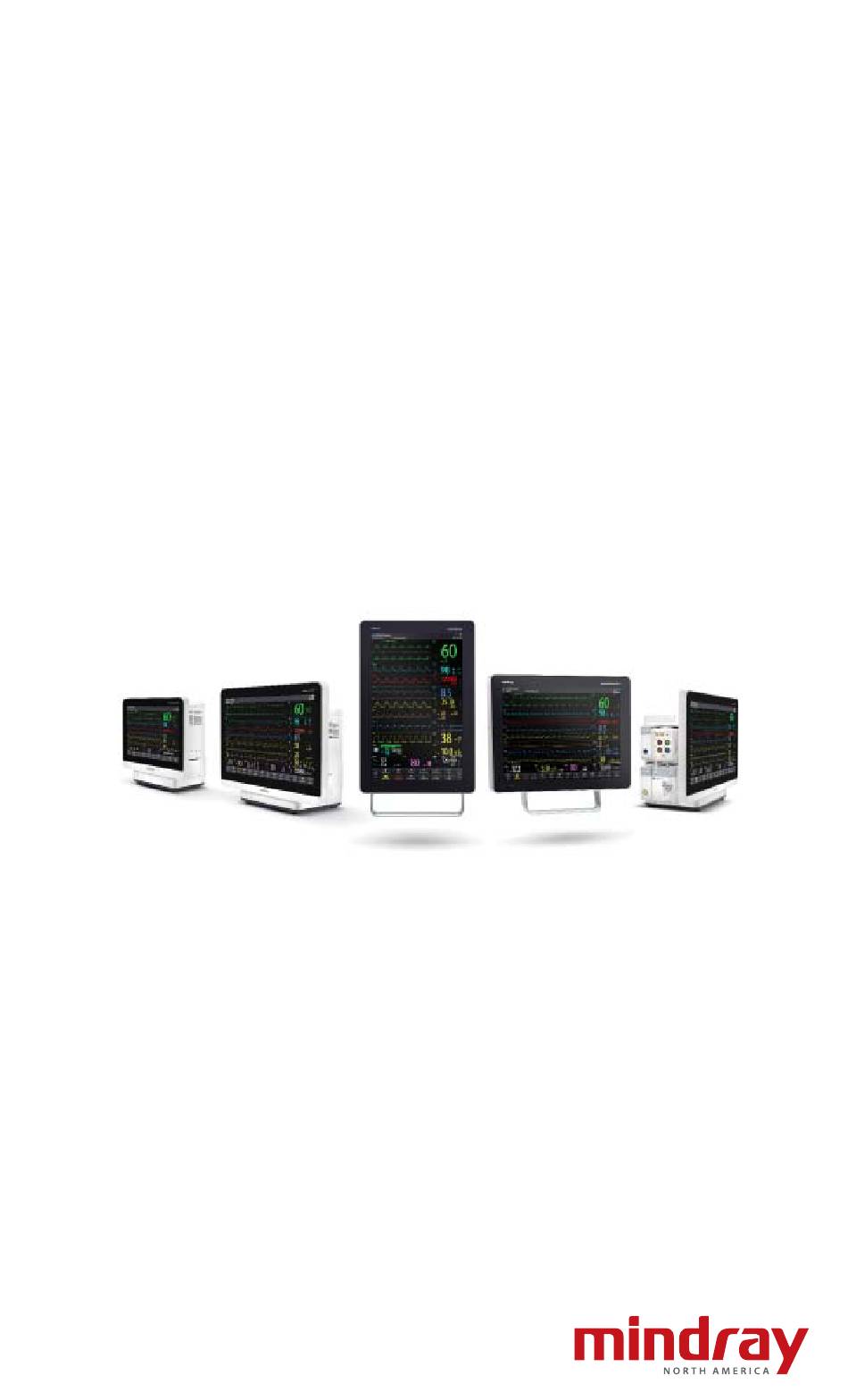

  • Page 1 BeneVision N22/N19/N17/N15/ Q u i c k R e fe re n ce G u i d e...
  • Page 2 Note: The BeneVision N22/N19/N17/N15/N12 Quick Reference Guide is not intended as a replacement to the Operating Instructions. This document is a guideline only to be used as an aid to comprehensive Inservice Training.

  • Page 3: Table Of Contents

    Table of Contents QUICK KEYS ............1 GESTURES .
  • Page 4 Table of Contents (cont'd) Stop Non-Invasive Blood Pressure Measurement (NIBP) ....11 Set A Non-Invasive Blood Pressure Measurement Interval ....12 Configure A Custom Sequence .
  • Page 5 Table of Contents (cont'd) Initiate Hemodynamic Calculations ........22 SCREEN DISPLAY .
  • Page 6 Table of Contents (cont'd) PAIR BP10 NIBP MODULE ......... . 33 Pair the BP10 Module with the N Series Bedside Monitor .

  • Page 7: Quick Keys

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide QUICK KEYS Main Menu More Opens the main menu. Shows more quick keys. Alarm Setup Alarm Reset Opens the Alarm dialog. Acknowledges alarms. Audio Pause Alarm Pause Pauses alarm tone. Pauses the current and future alarms for a preconfigured time.
  • Page 8 BeneVision N22/N19/N17/N15/N12 Quick Reference Guide Venipuncture Start TOF Opens the Venipuncture Starts/stops TOF dialog. measurement. Parameters Setup Remote View Opens the Parameters Setup Opens the split-screen dialog. view of another patient(s). Manual Event Minitrends Triggers a manual event. Opens the Minitrends screen.
  • Page 9 BeneVision N22/N19/N17/N15/N12 Quick Reference Guide Unit Rotate Screen (for N22/ N19) Opens the Unit dialog. Changes the screen orientation (between portrait and landscape). ECG Lead/Gain Call Help Opens the ECG Lead/Gain Calls for help. dialog. HemoSight Opens the HemoSight Opens the EWS screen.

  • Page 10: Gestures

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide GESTURES The following gestures on the touchscreen are enabled: Swipe down the touchscreen with two fingers to access the Discharge Patient dialog box. Swipe from left to right on the touchscreen with two fingers to change the screen from normal screen, to minitrends screen, to big numerics screen, to normal screen.

  • Page 11: Enter Demographics From The Adt Database

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide • Select the Main Menu quick key, and select Patient Management from the Patient Management column. • Select Patient Management from the discharge screen. c. Select Patient Category and select OK to confirm. d. Select patient field(s) and enter patient information as required using the onscreen keyboard.

  • Page 12: Discharge A Patient

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide g. Select OK to confirm and return to the main screen. Note: Find patient from the ADT server is only enabled if ADT Query is supported. Note: Loading patient information from the ADT server updates only patient information in the N Series bedside monitor.

  • Page 13: Resume Monitoring

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide c. Select OK to confirm. Resume Monitoring To remove a patient from Standby and resume monitoring on the N Series bedside monitor, select Resume Monitor. Once a patient is discharged the monitor automatically enters the Standby mode.

  • Page 14: Adjust Printed Waveforms

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide c. Select Print. Adjust Printed Waveforms To adjust the waveforms printed for a patient on the N Series bedside monitor: a. Select the Main Menu quick key, and select Report Setup from the Report column.

  • Page 15: Ecg

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide d. Select the Main Menu quick key or to return to the main display. Adjust ECG Lead The N Series bedside monitor allows the clinician to adjust the leads being viewed on the main display. To adjust the ECG Lead: a.

  • Page 16: Initiate Qt Analysis

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide c. Select the Setup tab. d. Enable ST Analysis. e. Select the Main Menu quick key or to return to the main display. Initiate QT Analysis To enable the QT monitoring on the N Series bedside monitor: a.

  • Page 17: Nibp

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide d. Select 12-Lead button. e. Select Setup to enter patient information or adjust Report options. f. Select Analyze. g. Select Print to print out the 12-lead ECG report. NIBP Initiate A Non-Invasive Blood Pressure Measurement (NIBP) To initiate a NIBP measurement: a.

  • Page 18: Set A Non-Invasive Blood Pressure Measurement Interval

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide b. Set Start Mode. • Clock: after the first measurement, the monitor automatically synchronizes NIBP automatic measurements with the real time clock. • Interval: after the first measurement, the monitor automatically repeats measurements at set interval.
  • Page 19 BeneVision N22/N19/N17/N15/N12 Quick Reference Guide to be affected by numerous factors. Some of the more important aspects (based on published literature) to consider while measuring BP are: • The cuff should fit snugly, but with enough room for two fingers to be placed between the cuff and the patient’s arm (on adults), and loosely on...

  • Page 20: Invasive Blood Pressures (Optional)

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide Cuff Description Limb Circumference Child 10 - 19 cm Small Adult 18 - 26 cm Adult 25 - 35 cm Large Adult 33 - 47 cm Thigh 46 - 66 cm Adult Long 25 - 35 cm...

  • Page 21: Zero Invasive Blood Pressure

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide b. Select the IBP parameter by: • Main Menu -Select the Main Menu quick key and select Setup from the Parameters column. -Select the Invasive Blood Pressure (ART, CVP, etc.). • Waveform/Numeric tile -Select the IBP waveform/numeric tile.

  • Page 22: Central Venous Oxygen Saturation (Optional)

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide a. Select CCO numeric tile on the main screen to enter the CCO dialog. a. Select Parameter Setup quick key, and select CCO from Parameters Setup dialog. a. Select the Main Menu quick key, select Setup from the Parameters column, and select CCO from Parameters Setup dialog.

  • Page 23: Bis Expand View (Bilateral Sensor Required)

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide To adjust the display in the BIS waveform area to include EEG, BIS Trends, or Superimposed BIS Trends on the N Series bedside monitor: a. Select BIS waveform or numeric tile on the main screen to enter the BIS dialog.

  • Page 24: Changing Arrhythmia Alarm Settings(Arrhythmia Option Required)

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide To adjust the alarm properties of parameters on the N Series bedside monitor: a. Select the Alarm Setup quick key. a. Select the Main Menu quick key, and select Limits from the Alarm column. b. Select parameter and select •...

  • Page 25: Disable Non-Lethal Arrhythmia Alarms (Arrhythmia Option Required)

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide a. Select Alarm Setup quick key, ECG waveform/numeric tile or Main Menu quick key. b. Select Arrhythmia tab. c. Select Threshold tab. d. Select arrhythmia threshold and adjust value using the drop down value list.

  • Page 26: Hemodynamic Monitoring

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide alarms, including arrhythmias, depending on your department’s configuration. TRANSFER The N Series bedside monitor has the ability to transfer patient data through the MPM (Multi-Parameter Module), N1 or T1 patient monitor. To transfer patient data from one patient monitor to another patient monitor: a.

  • Page 27: Initiate Pulmonary Artery Wedge Pressure (Pawp)

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide c. Select the quick key to enter the C.O. dialog. d. Verify the computation constant or adjust the computation constant in the C.O. dialog. e. Inject solution when Inject Now message is displayed (Auto measuring mode is enabled in the C.O.

  • Page 28: Initiate Hemodynamic Calculations

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide b. Select PA from Parameters Setup dialog ( quick key), and select PAWP. c. Select Setup to adjust PA sweep speed, PA scale, or reference waveforms (as needed). d. Inflate balloon to obtain wedge waveform.
  • Page 29 BeneVision N22/N19/N17/N15/N12 Quick Reference Guide a. Select the Main Menu quick key, and select Choose Screen from the Display column. b. Select the desired screen. • Normal Screen: Real time waveforms and numeric parameters on the main display (Configurable). • Big Numerics: Up to 6 waveforms and numeric parameters in an expandable view on the main display (Configurable).

  • Page 30: Review

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide the main display. • EWS (Optional): Split screen with EWS scoring tool on left side of display with real time waveform and numeric parameters on the main display. c. Select the Main Menu quick key or to return to the main display.

  • Page 31: Arrhythmia And Alarm Events

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide c. Select and confirm specified settings. d. Select Print to the independent printer. e. Select the Main Menu quick key or to return to the main display. Arrhythmia and Alarm Events The Events page stores 1000 physiological and arrhythmia events on a patient based on the Alarm Setup dialog.

  • Page 32: Oxycrg

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide g. Select • to print to the integrated or independent recorder. • to print to the independent printer. h. Select the Main Menu quick key or to return to the main display. OxyCRG The OxyCRG page stores up to 48 hours' trend curves. To view and print an OxyCRG alarm event on a patient on the N Series bedside monitor: a.

  • Page 33: Resetting Alarms For Remote Devices

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide b. Select a desired department. All the beds under this department will be listed. c. Select a desired tile from the A-W1, A-W2 or A-W3 group. A-Wx indicates an Alarm Watch group. These beds can be displayed on the main screen in the Alarm Watch tiles.

  • Page 34: Volumes

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide a. Select the Main Menu quick key. b. Select Tile Layout from the Display column. c. Select the numeric tile. d. Select Alarm Watch from the drop down list and select A-W1, A-W2, or A-W3.

  • Page 35: Date And Time

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide d. Select the Main Menu quick key or to return to the main display. a. Select ECG waveform or ECG numeric tile to enter ECG dialog. b. Select Setup tab. c. Select QRS Volume. d. Select volume ranging from 0-10 (0=Off 10=Max) e.

  • Page 36: Parameter Colors

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide f. Select the Main Menu quick key or to return to the main display. If the monitor is connected to a central monitoring system (CMS) or hospital clinical system (HIS), the date and time are automatically obtained from the network.

  • Page 37: Pair The Tm80 Telemetry Monitor

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide Menu quick key if the touchscreen is disabled. To manually unlock the touchscreen, hold and press the Main Menu quick key and slide to the right as directed by the arrow. The touchscreen can be unlocked automatically when the lock period is over if enabled.

  • Page 38: Unpair The N Series Bedside Monitor From The Tm80 Telemetry Monitor

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide a. Select the Main Menu quick key. b. Select Wireless Module, if detected, from the Parameters column. a. Select the desired TM80 under the Device Name. b. Select Remove. c. Select • Continue Patient in Monitor to disconnect the patient from the TM80 and continue with the patient monitor.

  • Page 39: Unpair Bp10 Module From The N Series Bedside Monitor

    BeneVision N22/N19/N17/N15/N12 Quick Reference Guide d. Select Device Name column. e. Select the desired BP10 module. Note: If the desired BP10 is not displayed, select Update List. f. Select Add adjacent to the BP10. g. Select the NIBP Start/Stop quick key to start an NIBP measurement.

  • Page 40: Disinfecting The Main Unit/Module/Smr

    Sterilization is not recommended for this equipment, related products, accessories, or supplies unless otherwise indicated in the Instructions for Use documentation accompanying the products, accessories or supplies. Mindray DS USA, Inc. 800 MacArthur Blvd., Mahwah, NJ 07430 Tel: 800.288.2121 or 201.995.8000 www.mindray.com...
